Zaccaria to JAMMA Adapter
Couldn't load pickup availability

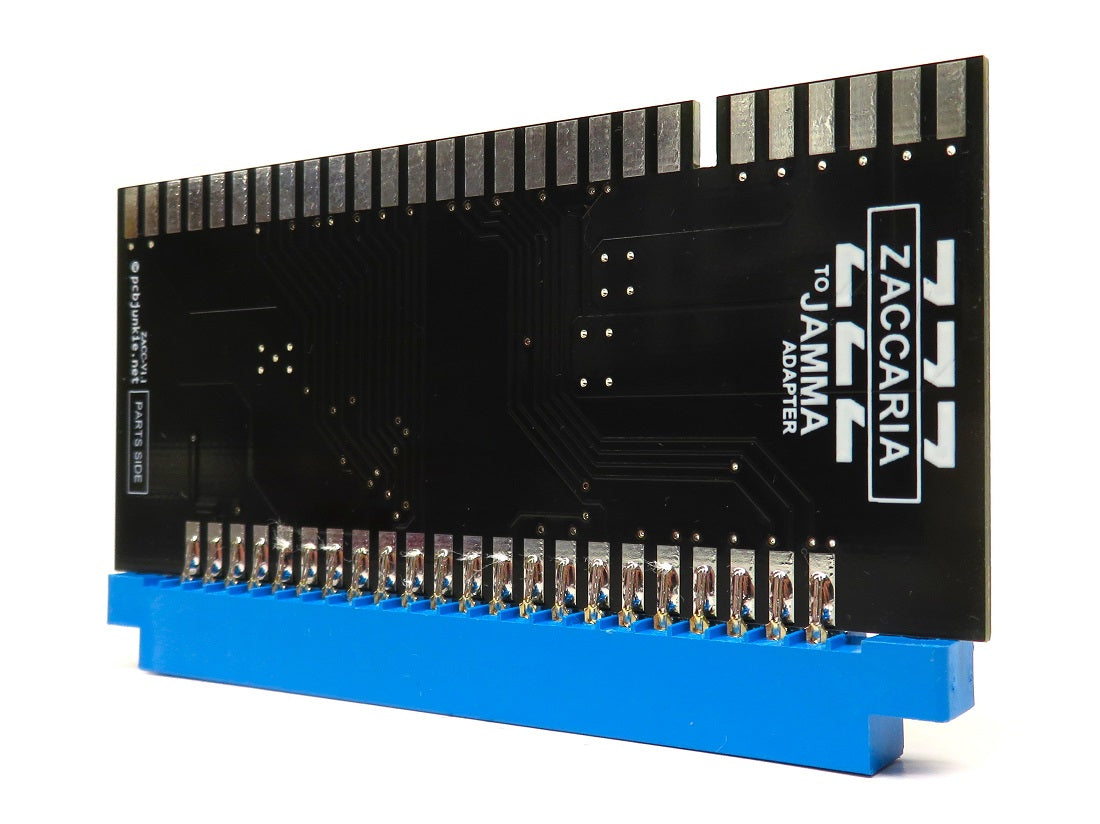

Allows you to use your Zaccaria Money Money and Jack Rabbit pre-JAMMA games, in a JAMMA cabinet or a super gun device.
Zaccaria was an Italian arcade game and pinball manufacturer. They were known primarily for their unique timer based pinballs, but they also manufactured a number of video games. The earliest games were mostly bootlegs, however in the early 80s, the company began properly licensing video games they produced. Before Zaccaria stopped making games in the mid 80s, they made a handful of original games. Only a few of these games shared the same pinout.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
The adapter has been tested with genuine Money Money board for compatibility.
As always please check the pinout section to ensure your game will work with this adapter.
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| VGREEN | VBLUE |
| VSYNC | VRED |
| NC | P2B1 |
| P2LEFT | P2RIGHT |
| P1START | P2START |
| P1B1 | P2UP |
| NC | RESET |
| P1RIGHT | P1LEFT |
| P1UP | P2DOWN |
| NC | SVC |
| P1DOWN | NC |
| NC | NC |
| COUNT | COIN1 |
| COIN2 | COIN2 |
| +5V | GND |
| +5V | GND |
| +5V | GND |
| +5V | GND |
| -5V | NC |
| -5V | NC |
| SPK1+ | +12V |
| SPK2+ | +12V |

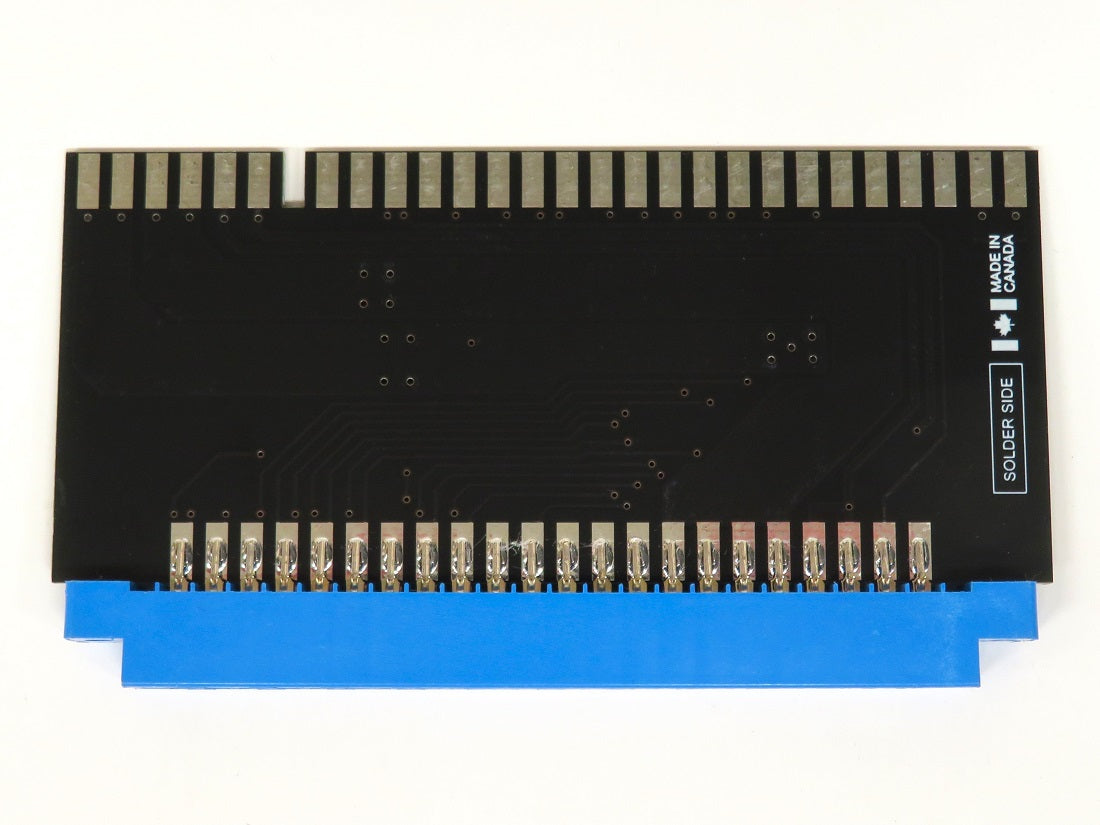

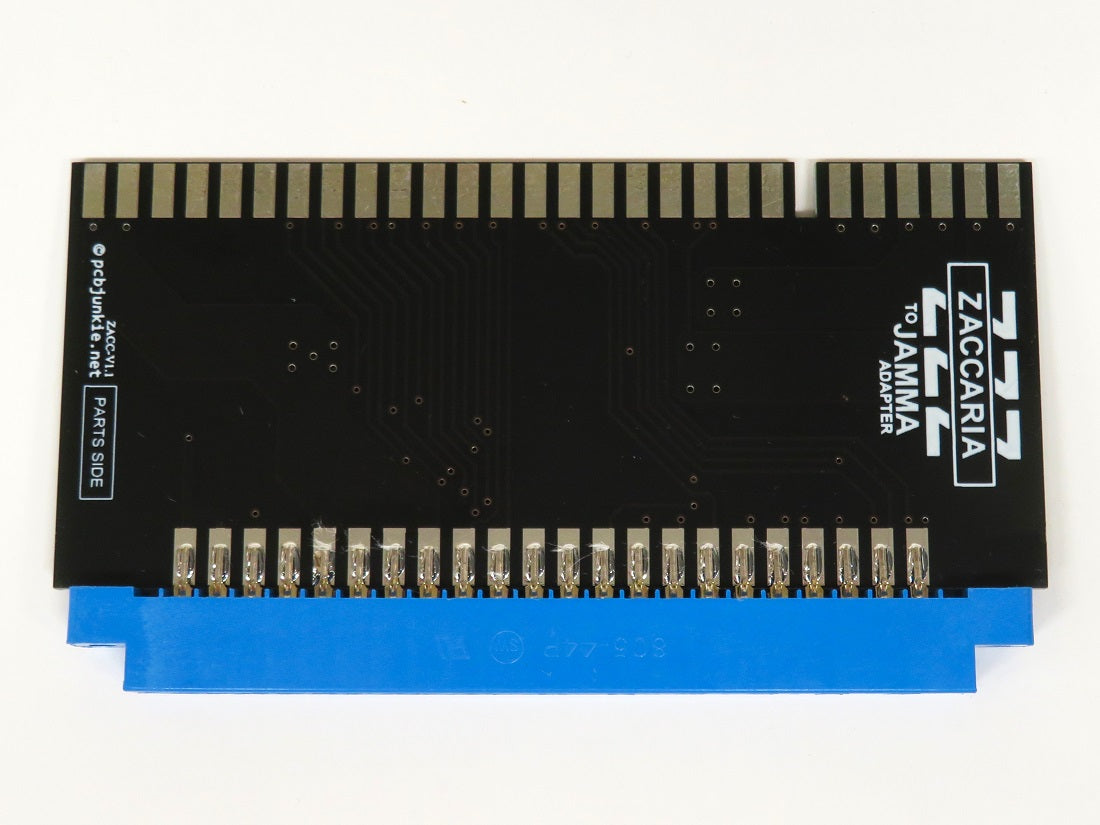

Pinout is ordered right to left when looking at the parts side of the board with the edge connector facing away.
