UPL Nova 2001 to JAMMA Adapter
Couldn't load pickup availability

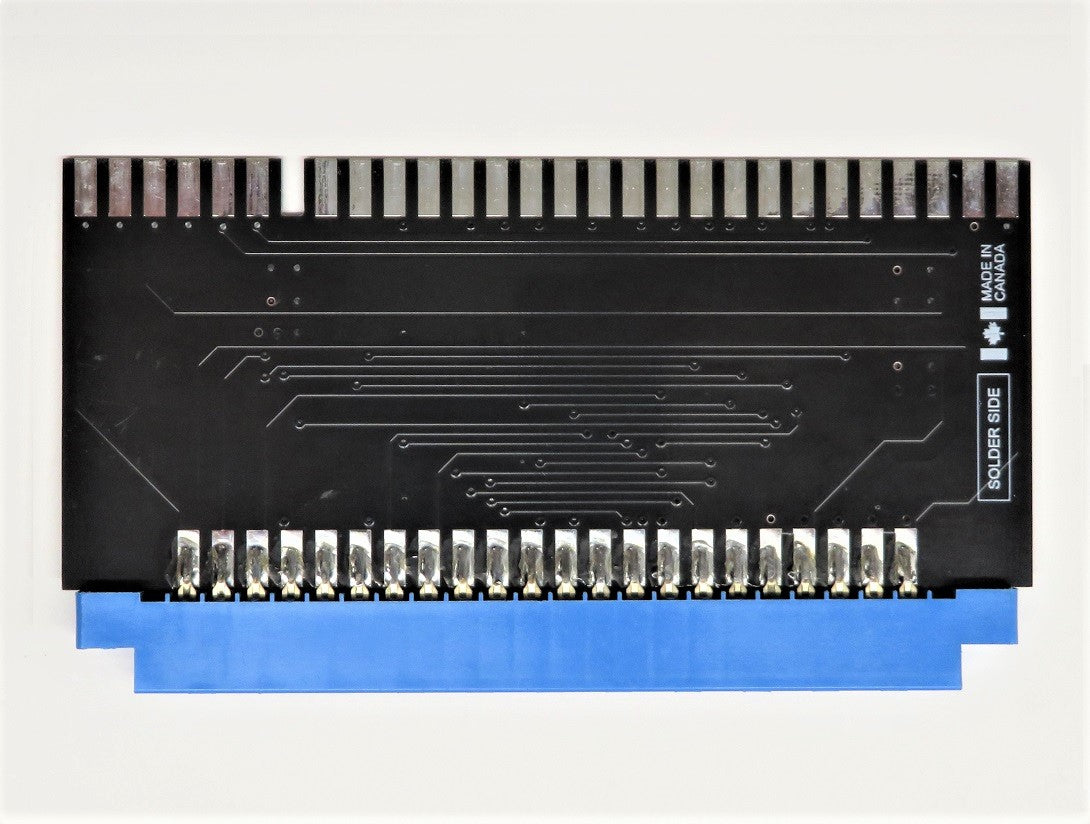

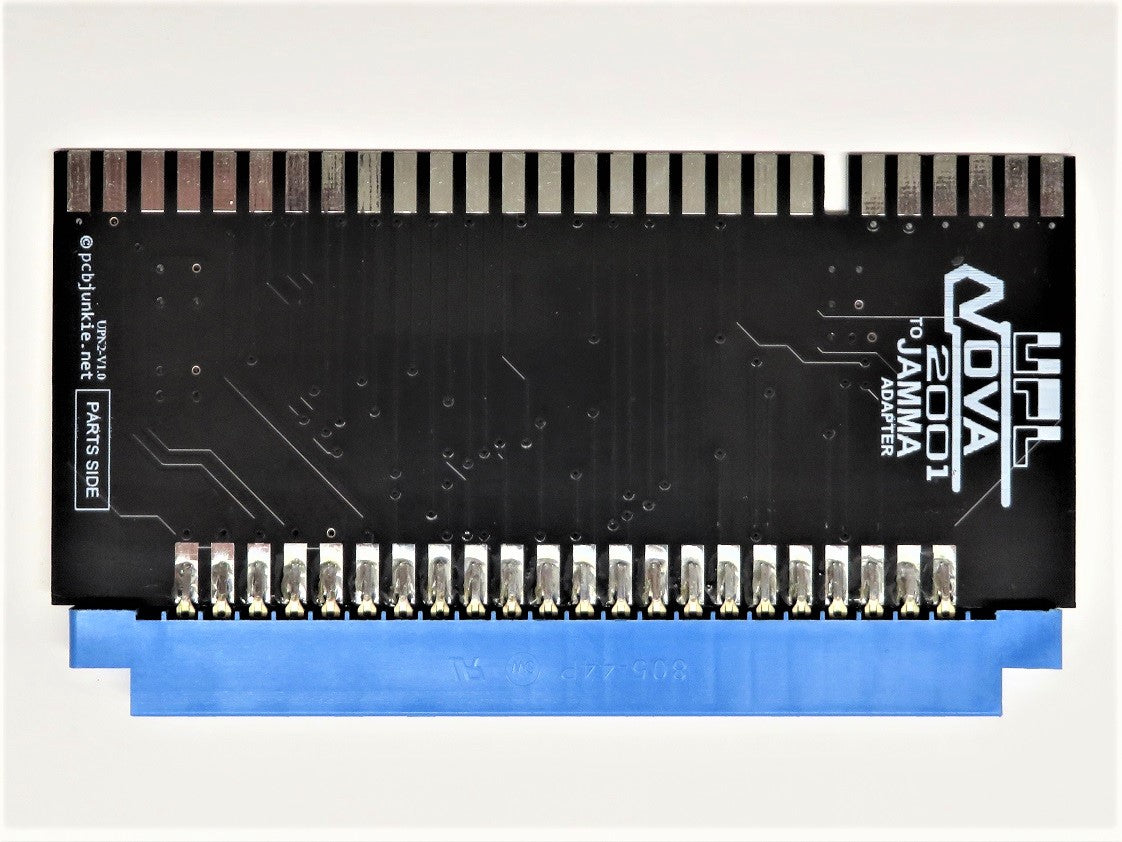

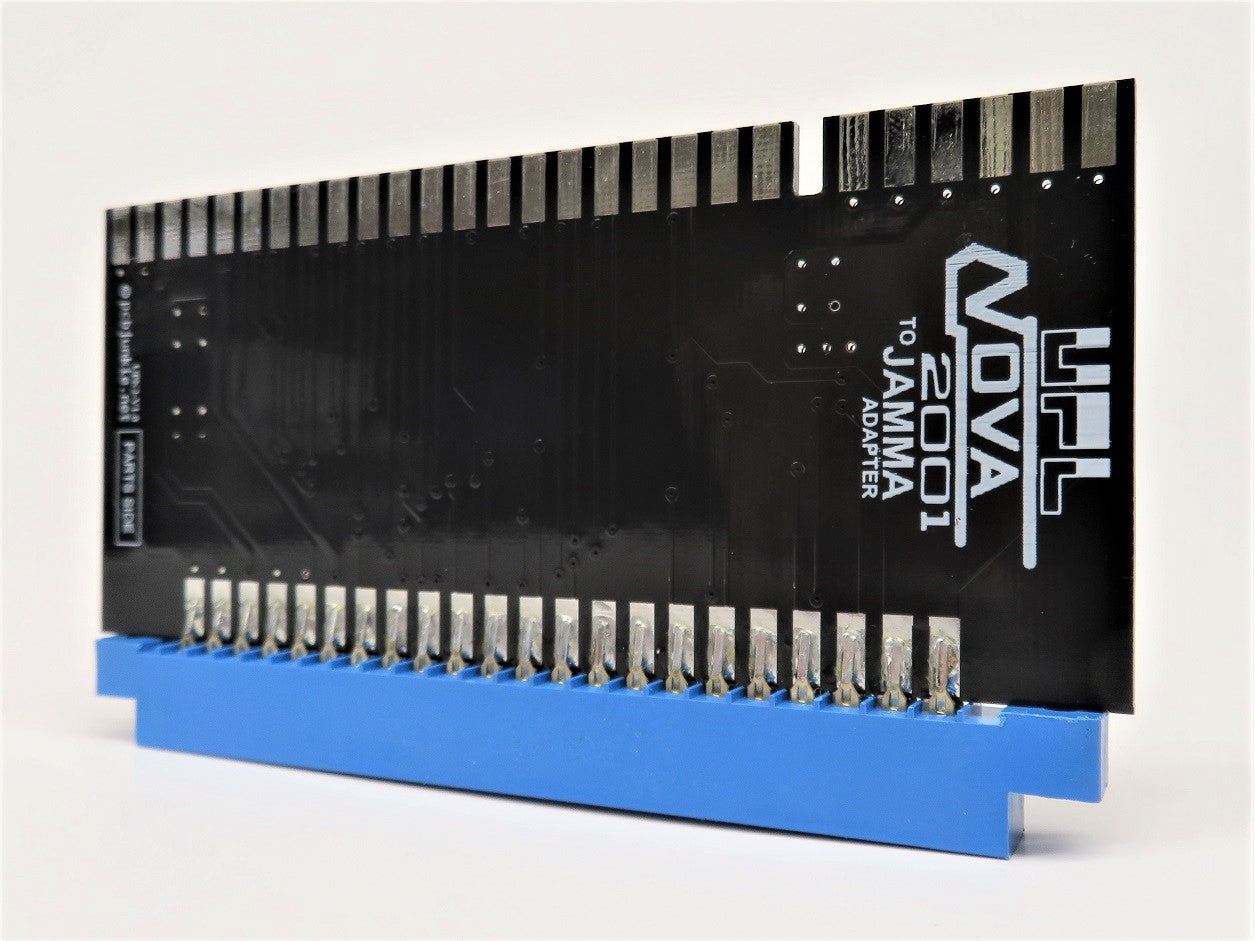

Allows you to use your UPL Nova 2001 arcade board in a JAMMA cabinet or a super gun device.
Nova 2001 is an 8 directional shoot'em up and appears to be inspired, at least in part, by Robotron. It was developed by UPL, a subsidiary of Universal Entertainment, and released in Japan in 1983. In North America the distribution was handled by the parent company, Universal.
Unlike Universal's PCBs which often share a similar pinout, UPLs pre-JAMMA game pinouts are all unique. This adapter therefore, works only with this one game.
Game Compatibility
Game Compatibility
This is the list of games that you may be able to use with this adapter:
This adapter has been tested with a genuine UPL Nova 2001 board for compatibility.
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| SPK- | SPK+ |
| P1UP | P1DOWN |
| P1LEFT | P1RIGHT |
| NC | NC |
| P1B2 | P1B1 |
| COIN1 | P1START |
| P2START | NC |
| NC | NC |
| NC | P2UP |
| P2DOWN | P2LEFT |
| P2RIGHT | NC |
| NC | P2B2 |
| P2B1 | VSYNC |
| VRED | VGND |
| VGREEN | VBLUE |
| +12V | +12V |
| +5V | +5V |
| +5V | +5V |
| -5V | -5V |
| GND | GND |
| GND | GND |
Pinout is ordered right to left when looking at the parts side of the board with the edge connector facing away.
