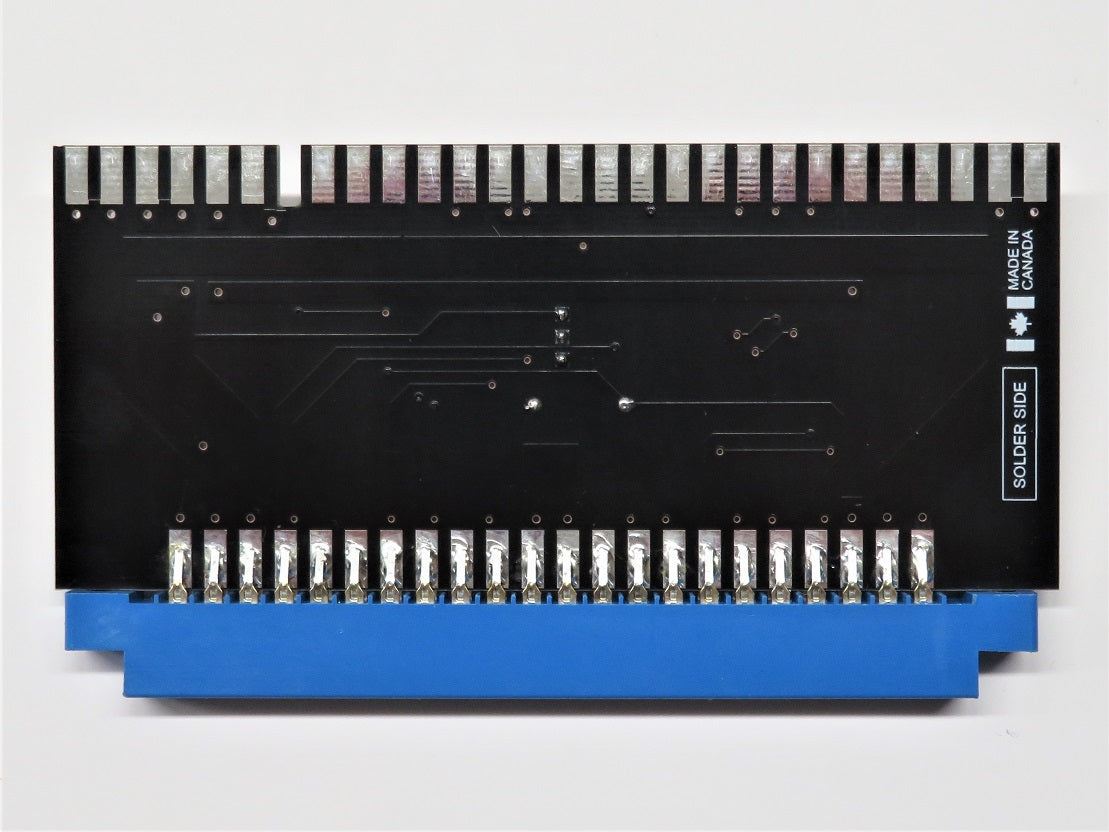

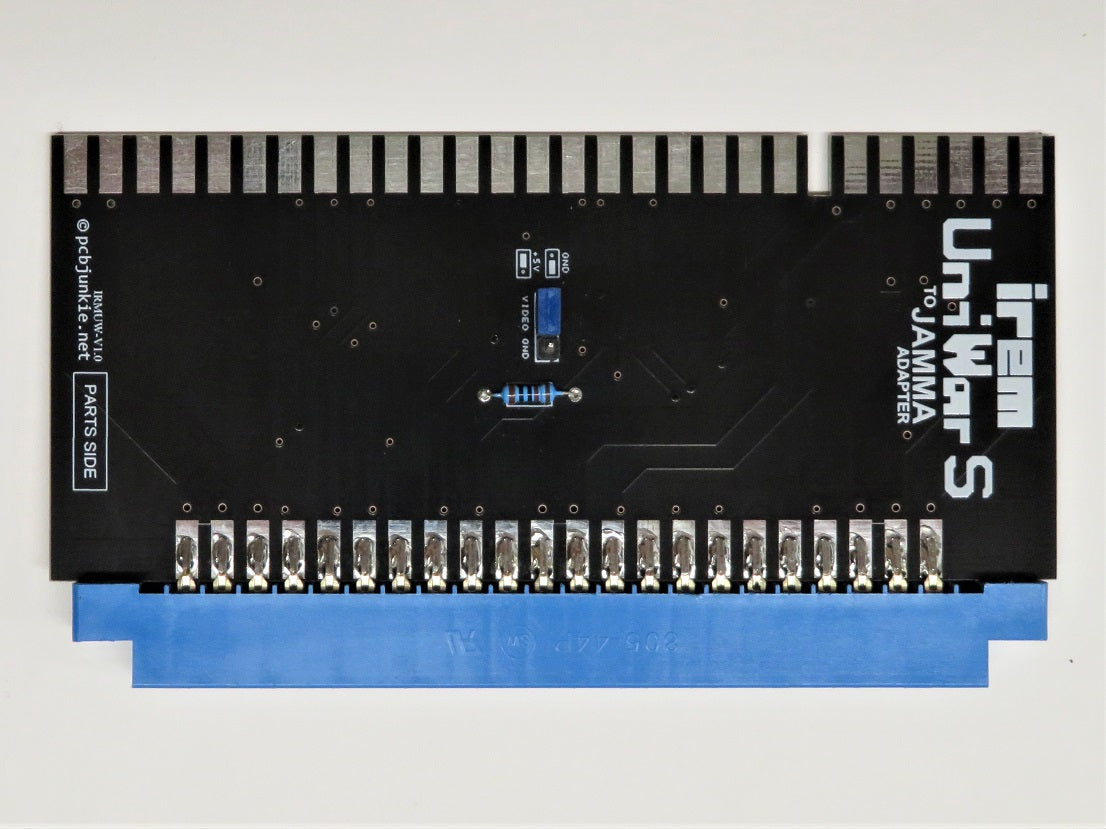

Irem Uniwar S to JAMMA Adapter
Couldn't load pickup availability
Allows you to use your Irem Uniwar S game board, in a JAMMA cabinet or a super gun device.
UniWar S was produced by Irem in 1980. It is a clearly a Galaxian inspired game. Irem attampted to improve on the original game by including different level boards and multiple enemy types, with mixed results.
While the hardware is also based on Galaxian, the Uniwar S PCB is a slim stack of 3 boards with a unique pinout. Irem apparently used this hardware for their own version of Galaxian.
Game Compatibility
Game Compatibility
This is the list of games that you may be able to use with this adapter:
This adapter has been tested with a genuine Uniwar S board for compatibility.
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| +5V | +5V |
| +5V | +5V |
| COINSEL | SVC |
| NC | NC |
| NC(RST?) | NC |
| P2VR | VBLUE |
| VGREEN | VRED |
| NC | NC |
| SPK+ | SPK- |
| +12V | +12V |
| +12V | +12V |
| HSYNC | NC |
| CSYNC | VSYNC |
| P1START | P2START |
| P2B1 | P1B1 |
| P2RIGHT | P1RIGHT |
| P2LEFT | P1LEFT |
| P1VR | COUNT1 |
| -5V | -5V |
| GND | GND |
| GND | GND |
Pinout is ordered right to left when looking at the parts side of the board with the edge connector facing away.
