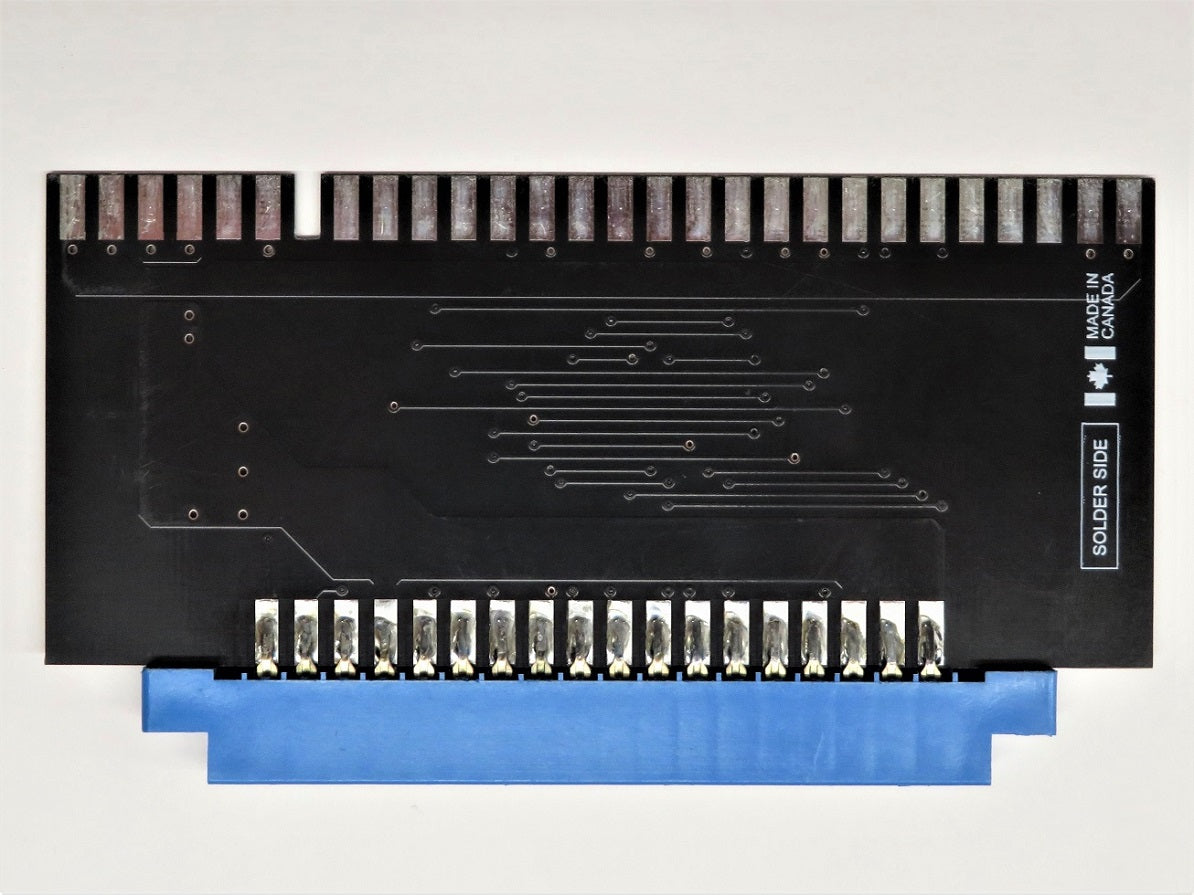

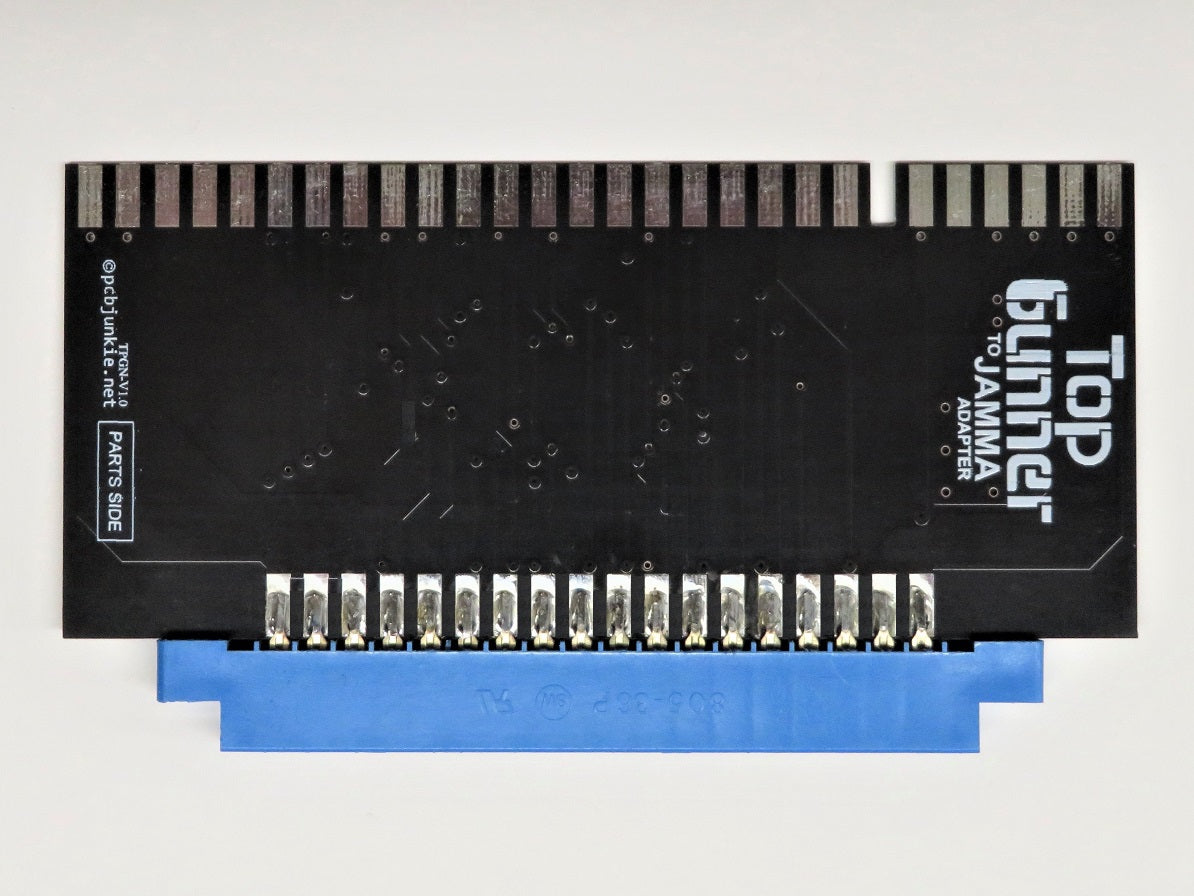

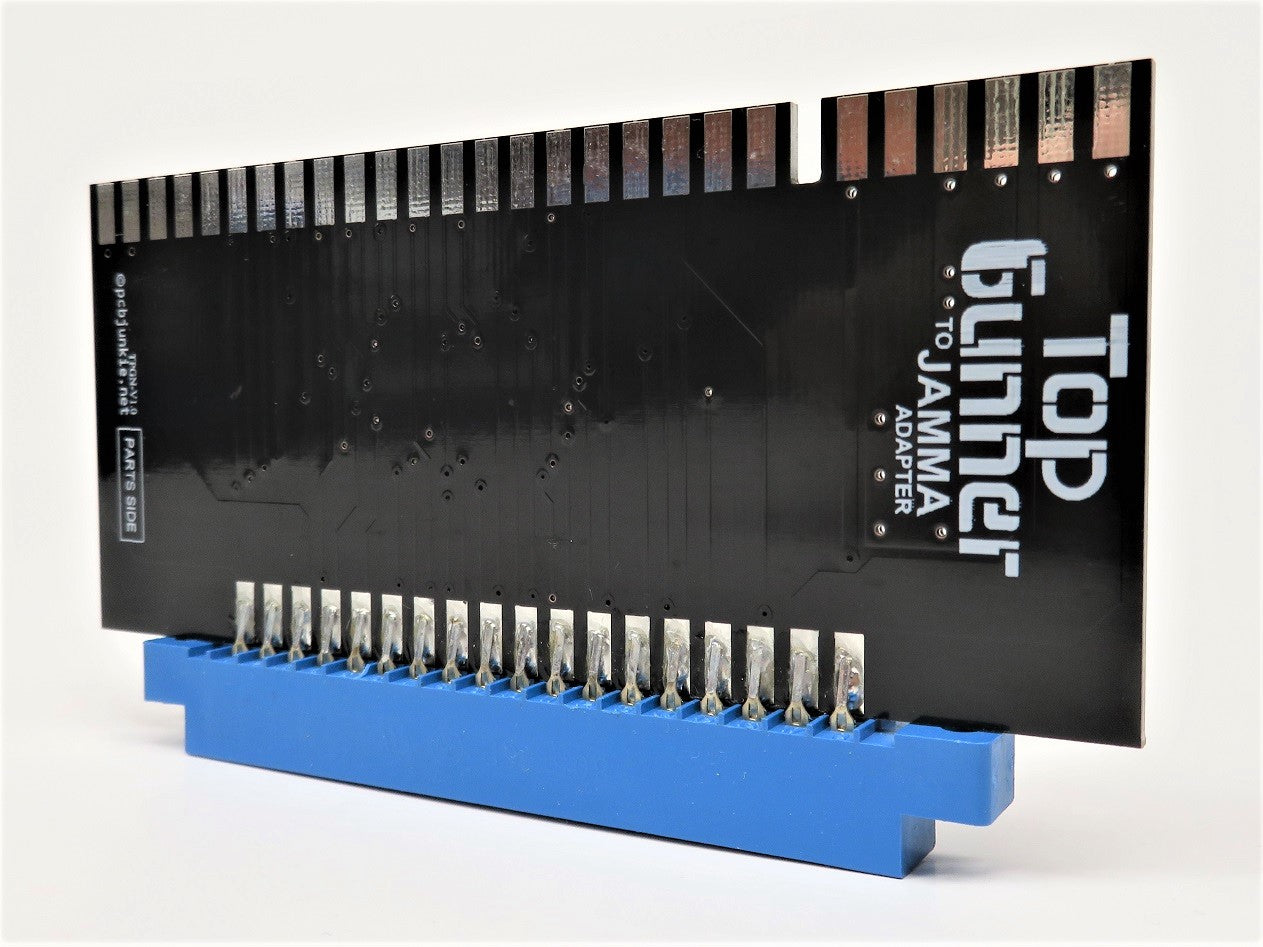

Top Gunner to JAMMA Adapter
Allows you to use your bootleg Top Gunner PCB in a JAMMA cabinet or a super gun device.
Konami's Top Gunner as it was known in North America, was also distributed under the title of Jackal in Europe and Japan.
The genuine Konami version of the game is a small JAMMA board with three large custom Konami ASICs. The bootleg however is a completely redesigned, much larger board that uses standard off the shelf ICs.
What's more interesting about this board, is that the bootleggers decided to use a completely different pinout, and some versions even retain the original rotary controls which were scrapped in the final release of Konami's game.
This adapter works only with the bootleg version of Top Gunner. The genuine Konami version is already JAMMA.
Game Compatibility
Game Compatibility
This is the list of games that you may be able to use with this adapter:
- Top Gunner (bootleg only)
This adapter has been tested with a 36 pin bootleg Top Gunner board for compatibility.
Pinout
Pinout
SOLDER SIDE | PARTS SIDE |
---|---|
+12V | GND |
SPK+ | GND |
NC | NC |
+5V | P1RIGHT |
P2RIGHT | COIN1 |
COIN3 | P2LEFT |
P1LEFT | P2DOWN |
P1DOWN | P1START |
COIN2 | P2UP |
P1UP | P1B2 |
P2B2 | VSYNC |
P2START | P2B1 |
P1B1 | NC |
NC | VRED |
VGREEN | VBLUE |
+5V | GND |
+5V | GND |
+5V | GND |
Pinout is ordered right to left when looking at the parts side of the board with the edge connector facing away.
Dimensions
Dimensions
Board Size: 50mm x 112mm
Weight: 50g
