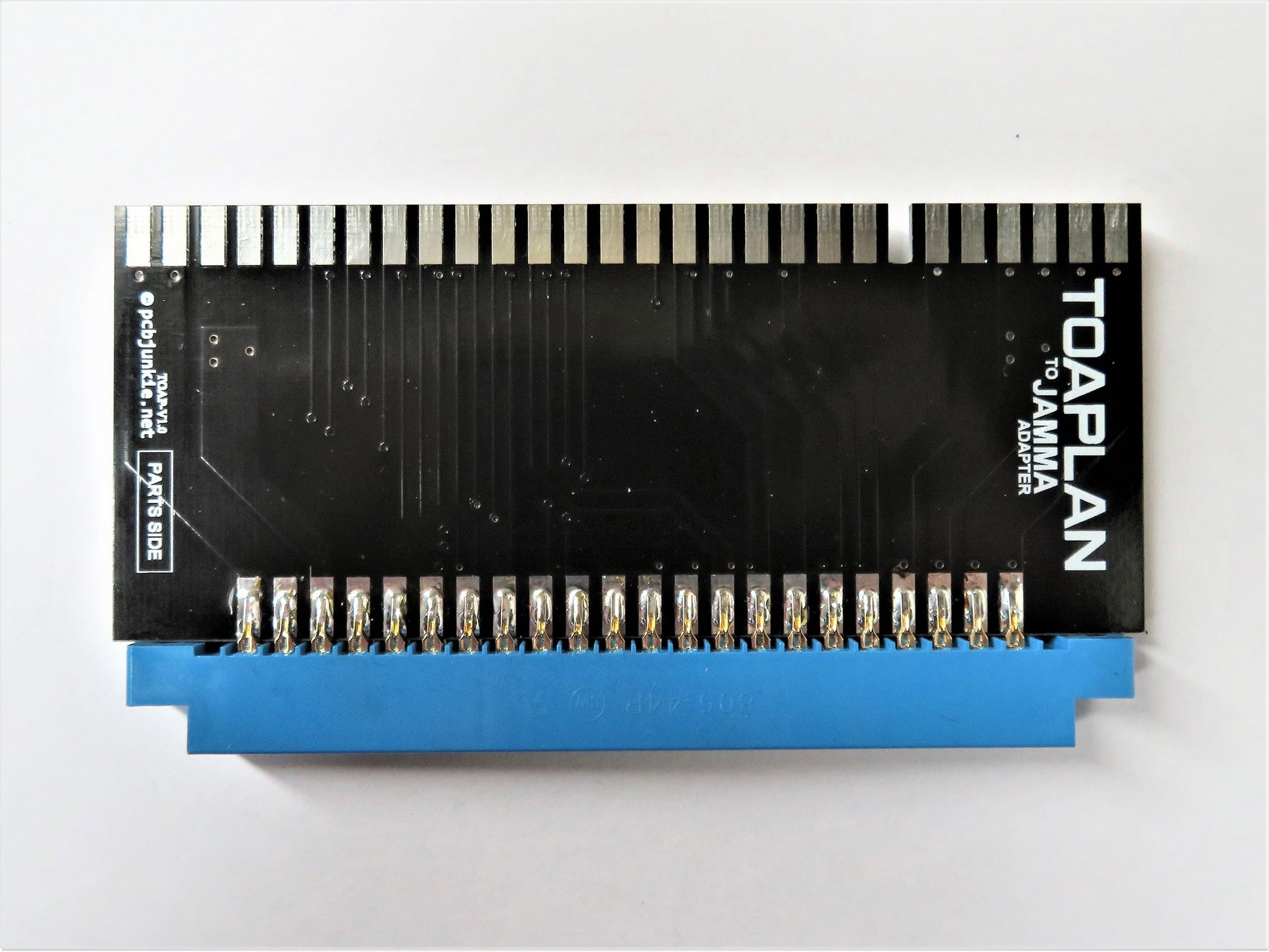

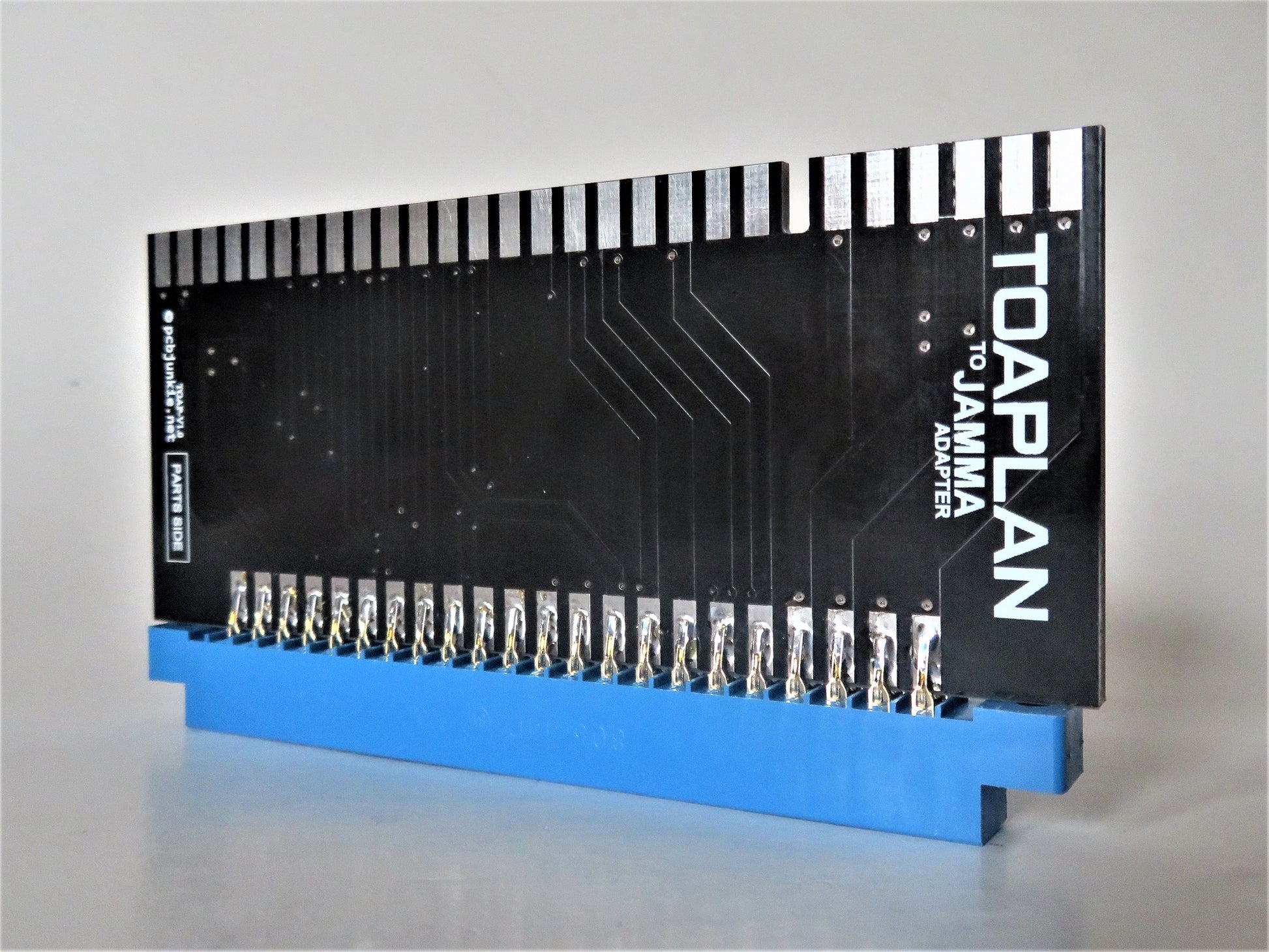

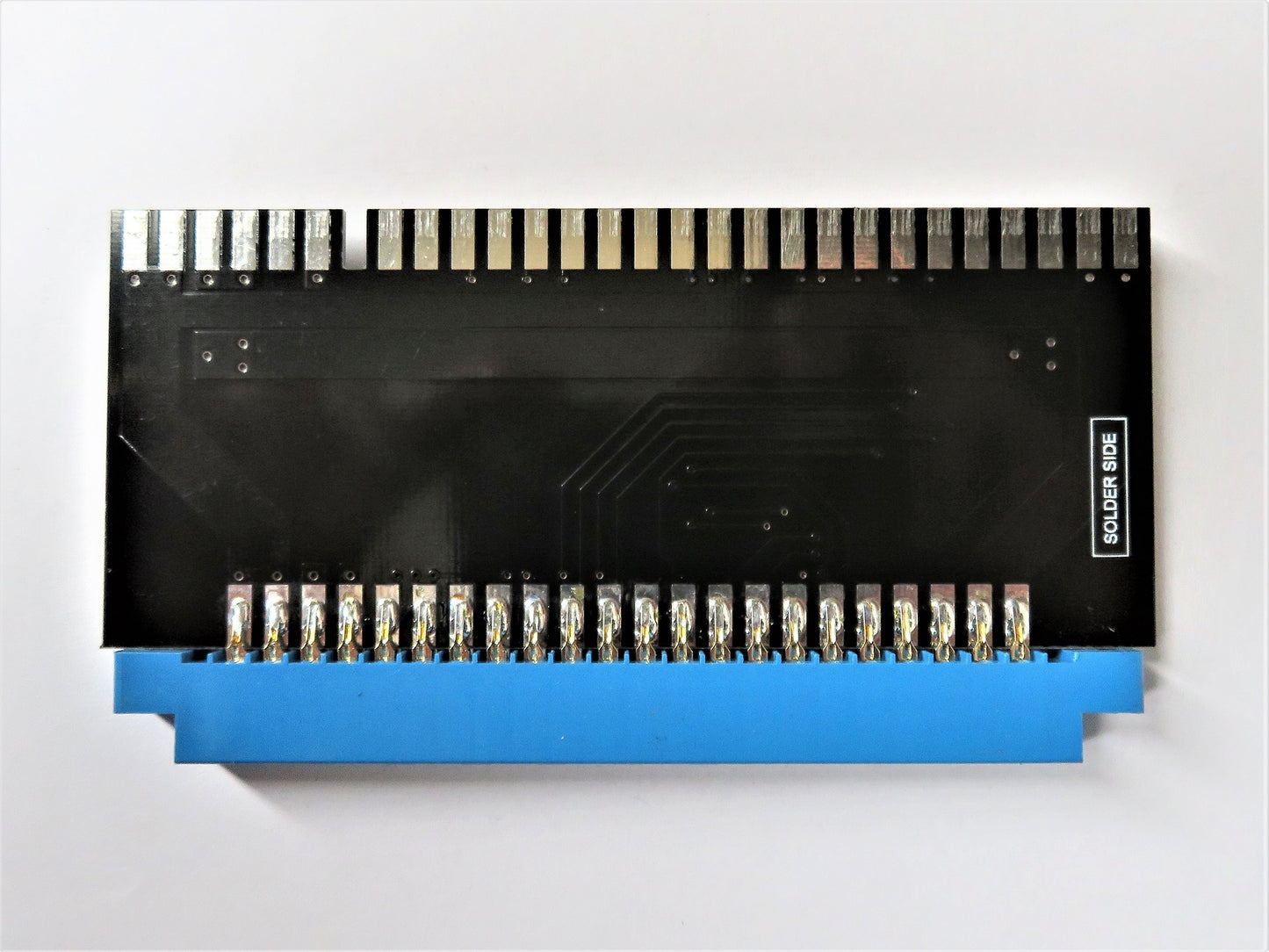

Toaplan to JAMMA Adapter
Regular price
$23.99 CAD
Regular price
Sale price
$23.99 CAD
Unit price
/
per
Couldn't load pickup availability
Allows you to use your Toaplan pre-JAMMA game, in a JAMMA cabinet or a supergun device.
Toaplan, best known for their early 90’s shooters, made a small number of arcade games during the pre-JAMMA period. Their games were licensed to other distributors but run on similar hardware with identical pinout.
Game Compatibility
Game Compatibility
These games should be compatible with this adapter:
Pinout
Pinout
SOLDER SIDE | PARTS SIDE |
---|---|
GND | GND |
GND | GND |
+5V | +5V |
+12V | +12V |
SPK- | SPK+ |
VGREEN | VBLUE |
NC | VRED |
NC | VSYNC |
P2START | P1START |
P2B1 | P1B1 |
P2B2 | P1B2 |
NC | NC |
P1RIGHT | P1UP |
P1LEFT | P1DOWN |
P2RIGHT | P2UP |
P2LEFT | P2DOWN |
COIN2 | COIN1 |
NC | NC |
NC | NC |
+5V | +5V |
GND | GND |
GND | GND |
Dimensions
Dimensions
Board Size: 50mm x 112mm
Weight: 50g
