Tehkan to JAMMA Adapter

Regular price $34.99 CAD
Regular price Sale price $34.99 CAD
Sale Sold out

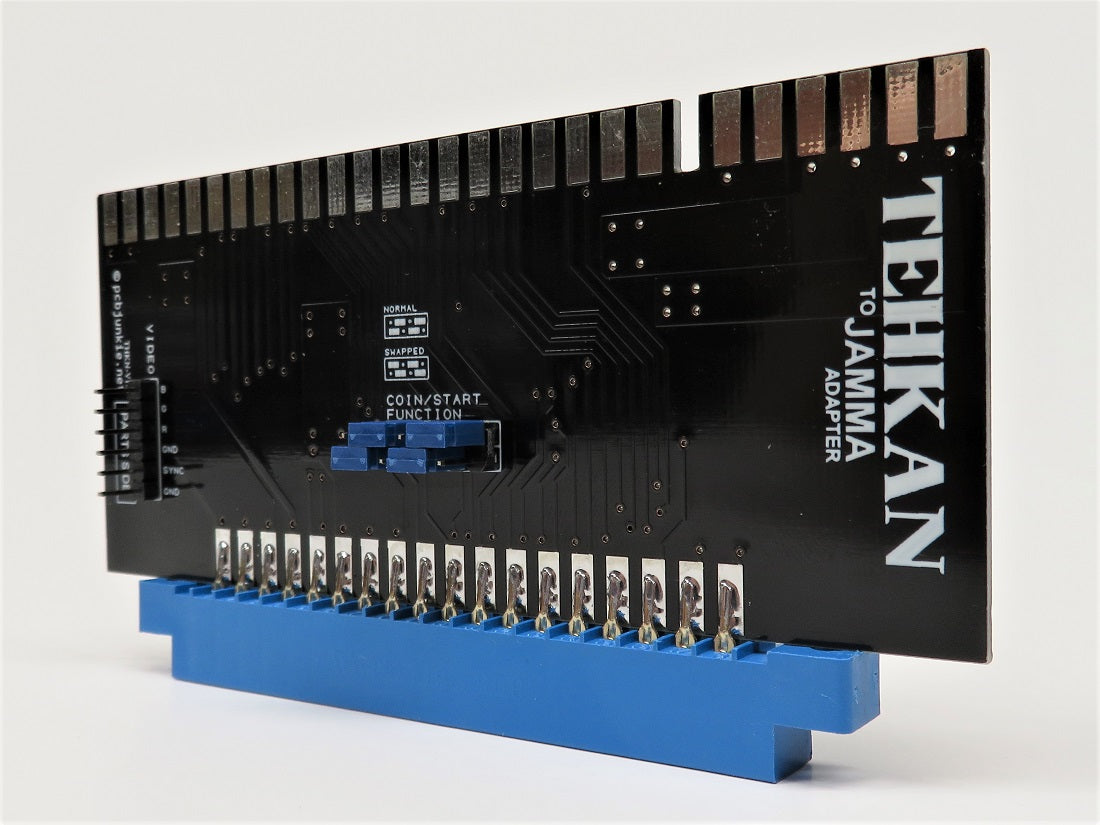

Allows you to use your Tehkan classic pre-JAMMA game, in a JAMMA cabinet or a supergun device.

Before they became Tecmo later in the decade, Tehkan produced many successful arcade games in the 1980s. Just like many arcade game manufacturers from this period, their games shared similar hardware and pinout configuration.

One of the more unique features of this pinout class is the separate 6 pin, single row 2.54mm pin header for video. Some bootleg boards use a 5 pin connector on the PCB with a shroud around the pins. The video header is typically on the opposite end of the board in relation to the edge connector.

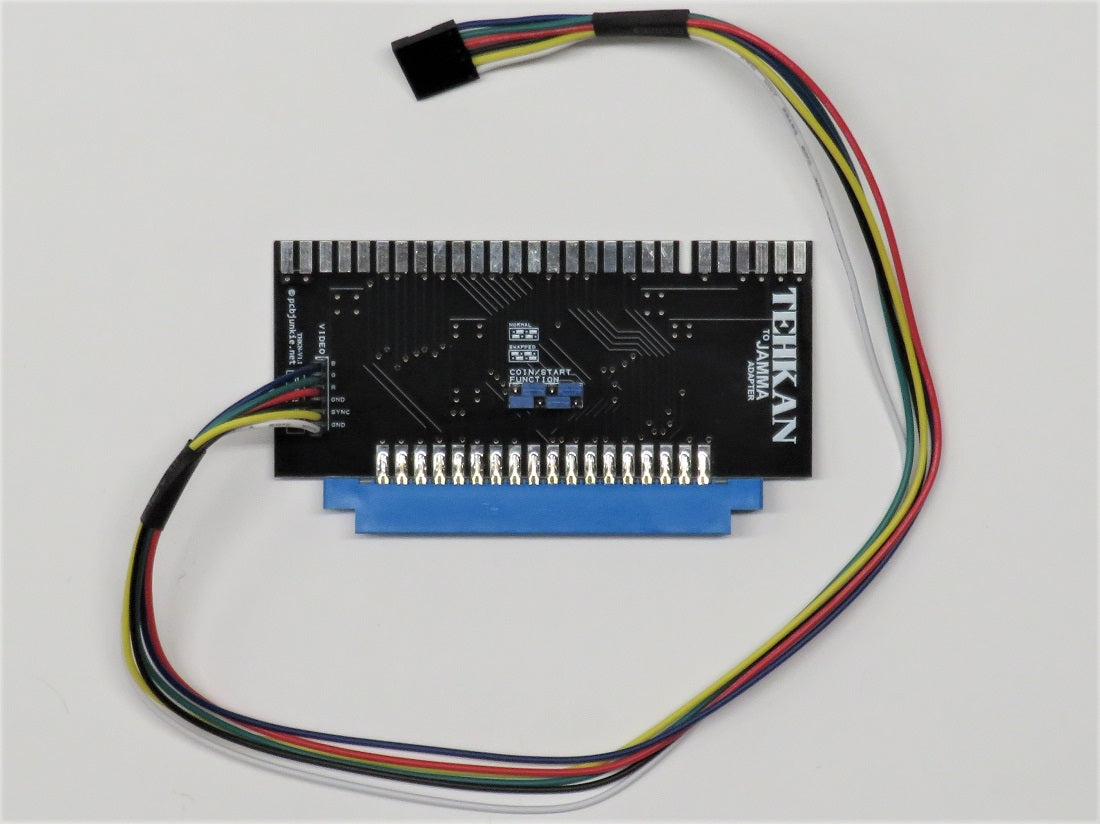

This adapter includes a 5+1 pin cable that can be used in both genuine 6 pin Tehkan and 5 pin bootleg PCB variants and is 40cm long, which should be long enough for all boards.

Game Compatibility

This is the list of compatible games that can be used with this adapter:

It has been tested with many, many genuine and bootleg Tehkan boards for compatibility.

* These games’s pinouts swap the start and coin switch location. Jumpers on the adapters change the function of these pins accordingly for compatibility with these game.

Pinout

SOLDER SIDE PARTS SIDE
P2RIGHT P2LEFT
P2UP P2DOWN
P2B1 P2B2
NC NC
P1RIGHT P1LEFT
P1UP P1DOWN
P1B1 P1B2
SVC RESET
STRT/CN1 STRT/CN2
COIN/ST1 COIN/ST2
GND GND
GND GND
GND GND
SPK- SPK+
+12V +12V
+5V +5V
+5V +5V
+5V +5V

Dimensions

Board Size: 50mm x 112mm
Weight: 50g
