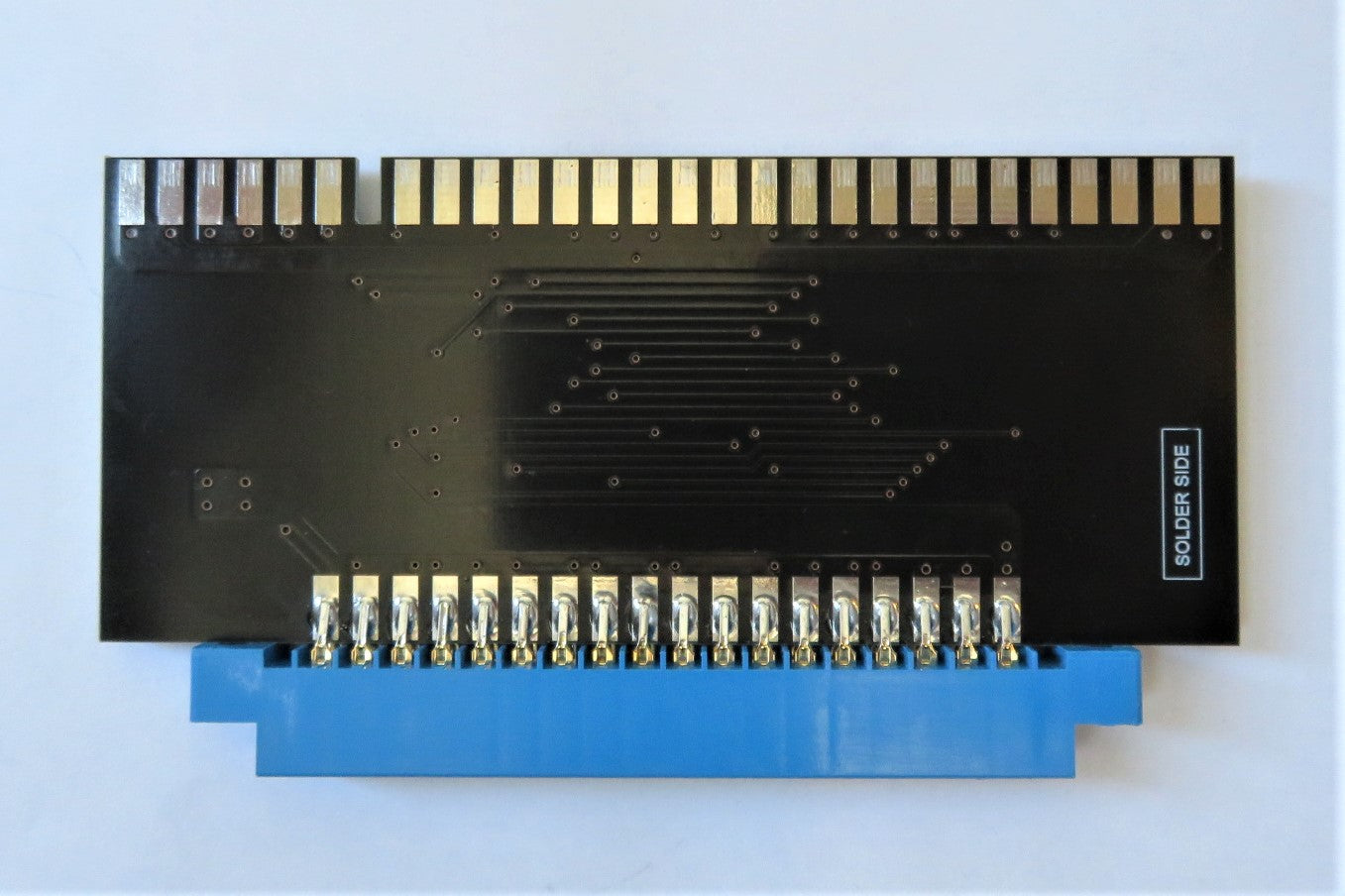

Technos to JAMMA Adapter

Regular price $23.99 CAD
Regular price Sale price $23.99 CAD
Sale Sold out

Allows you to use your Technos classic pre-JAMMA game, in a JAMMA cabinet or a supergun device.

In the early 1980s', three employees from Data East left to start Technos. Being a small startup, they licensed their games to established companies, mainly Taito and Data East, for distribution.

This adapter works with many pre-JAMMA Technos games.  Some
Data East licensed games like Karate Champ, use the Data East pinout, however.

Game Compatibility

This is the list of compatible games that can be used with this adapter:

Note: Scrambled Egg may use a Konami pinout.

Pinout

SOLDER SIDE PARTS SIDE
-5V* +12V
SPK- SPK+
P1B1 P1UP
P1RIGHT P1LEFT
P1START P2START
P2B1 P2UP
P2DOWN NC
P2LEFT P2RIGHT
COUNT1 P1DOWN
COIN2 COIN1
NC COUNT2
P1B2 P2B2
VGREEN VBLUE
VRED VSYNC
P1B3 P2B3
GND GND
GND GND
+5V +5V
Note: This pinout is very similar to Konami. While the power, video and audio pins are correct, this pinout changes the location of the control pins.

Dimensions

Board Size: 50mm x 112mm
Weight: 50g
