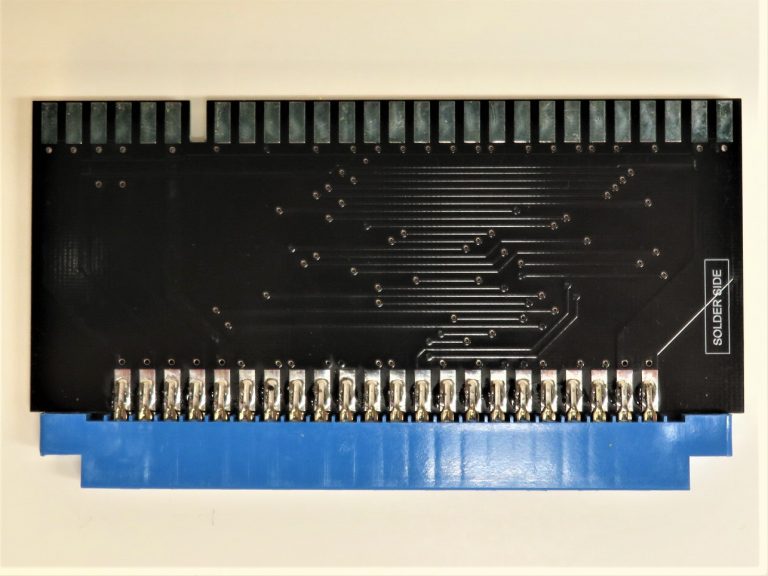

Taiyo to JAMMA Adapter
Regular price
$23.99 CAD
Regular price
Sale price
$23.99 CAD
Unit price
per
Couldn't load pickup availability
This small arcade publisher company only has a couple of games to its credit. Both games share the same pinout and were developed by Nihon Game who eventually became Culture Brain.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
The adapter has been tested with a genuine copy of Chinese Hero.
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| GND | GND |
| +5V | +5V |
| +5V | +5V |
| +12V | +12V |
| SPK- | SPK+ |
| P1LEFT | P1RIGHT |
| P1UP | P1DOWN |
| P1B1 | P1B2 |
| P1B3 | P1B4 |
| P2LEFT | P2RIGHT |
| P2UP | P2DOWN |
| P2B1 | P2B2 |
| P2B3 | P2B4 |
| COIN1 | COIN2 |
| SVC | P1START |
| P2START | NC |
| COUNT1 | COUNT2 |
| VRED | VGREEN |
| VBLUE | VSYNC |
| GND | GND |
| GND | GND |
Dimensions
Dimensions
