Taito Polaris to JAMMA Adapter

$54.99 CAD
$54.99 CAD
Sale Sold out

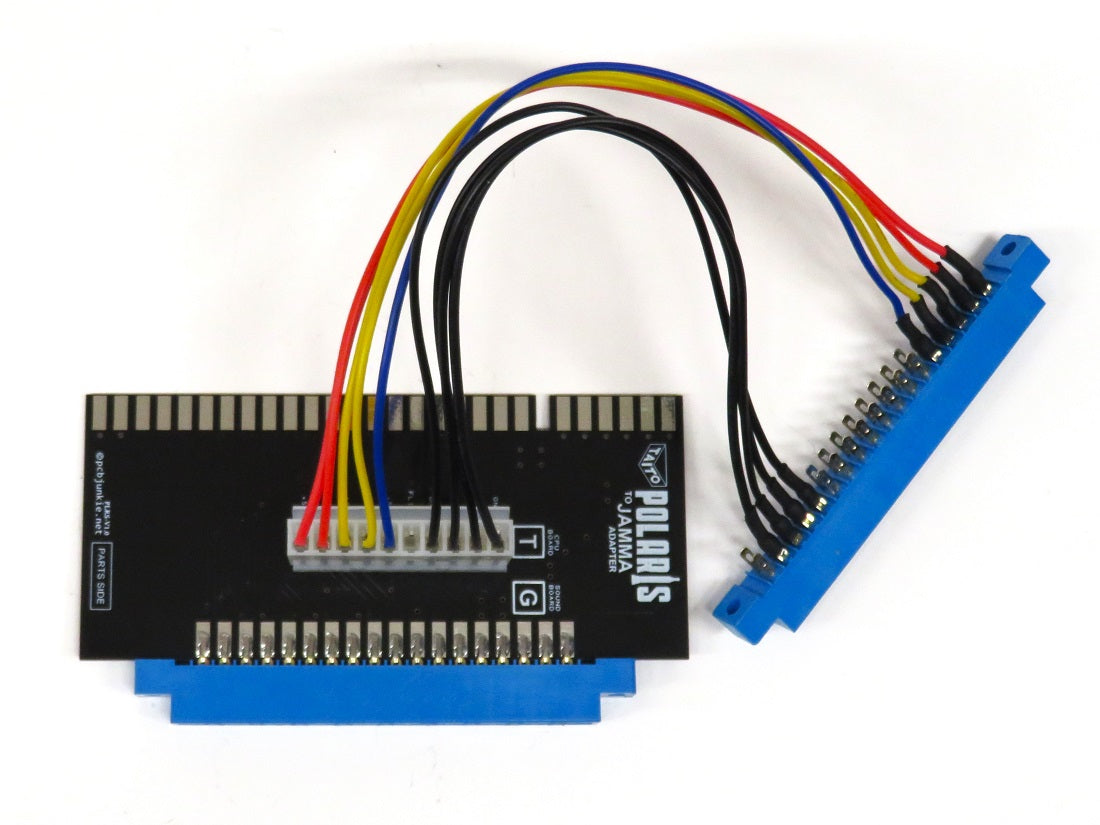

Allows you to use your original Taito Polaris board in a JAMMA cabinet or a super gun device.

Polaris was a shoot’em up developed and released by Taito in 1980. After the success of Space Invaders in 1979, Taito followed it up in 1980 with several new, less successful, color CRT shooters, with a number of unique themes. Polaris was one of these games. It featured a submarine theme where the goal was to shoot down enemies while avoiding bombs dropped by planes from above, naval mines and depth charges fired from other subs below.

Early Taito games from this period often had unique pinouts and Polaris in no exeption. This adapter is known to convert only this one game.

The adapter comes with the necessary power cable to connect the adapter to the T edge connector on the PCB.

Game Compatibility

This is the list of know compatible games that can be used with this adapter:

It's possible this adapter can be used with other Taito games from the early 80s.

Pinout

Main Connector (G)

SOLDER SIDE PARTS SIDE
GND GND
GND GND
GND GND
+5V +5V
+12V +12V
KEY KEY
TILT COIN
GND NC
P2UP SPK+
P2START P1START
P2B1 P1B1
P2RIGHT P1RIGHT
P2DOWN P1DOWN
P2LEFT P1LEFT
VSYNC P1UP
VGREEN VRED
NC VBLUE
NC NC

Power Connector (T)

SOLDER SIDE PARTS SIDE
NC NC
GND GND
GND GND
GND GND
GND GND
NC NC
NC NC
NC NC
NC NC
NC NC
NC NC
NC NC
NC NC
-5V -5V
+12V +12V
+12V +12V
+5V +5V
+5V +5V

Dimensions

Board Size: 50mm x 112mm
Weight: 50g
