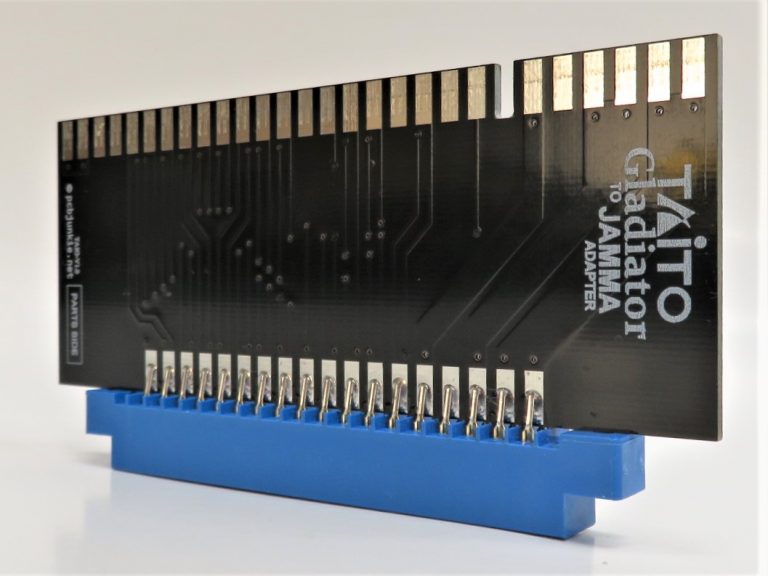

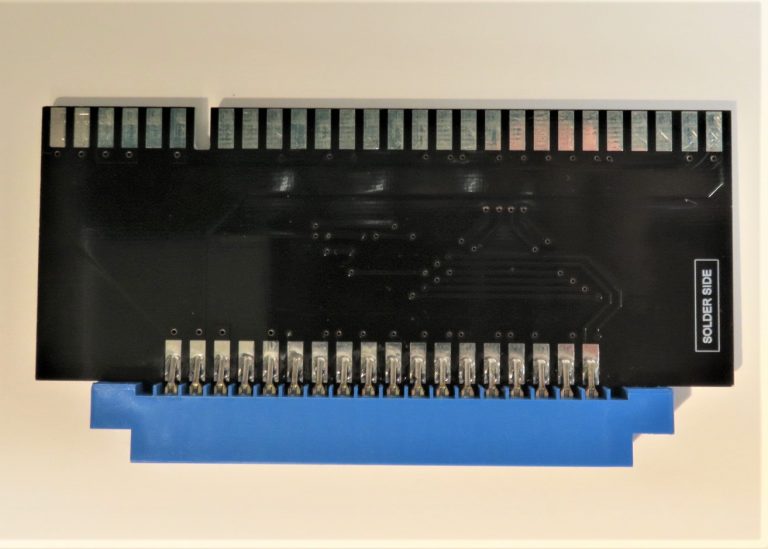

Taito Gladiator to JAMMA Adapter
Regular price
$23.99 CAD
Regular price
Sale price
$23.99 CAD
Unit price
per
Couldn't load pickup availability
Taito licensed games from other manufacturers on occasion. One such game was Gladiator, released under a license from Allumer. The same hardware was reused later for another Taito release, Ping Pong King.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
The adapter has been tested with a genuine Taito Gladiator pcb.
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| GND | GND |
| +5V | +5V |
| NC | NC |
| +12V | +12V |
| SPK+ | SPK- |
| VSYNC | COUNT1 |
| VBLUE | COIN2 |
| VGREEN | COIN1 |
| VRED | NC |
| P1B2 | P2B2 |
| P1B1 | P2B1 |
| P1DOWN | P2DOWN |
| P1UP | P2UP |
| P1RIGHT | P2RIGHT |
| P1LEFT | P2LEFT |
| P1B3 | P2B3 |
| P1START | P2START |
