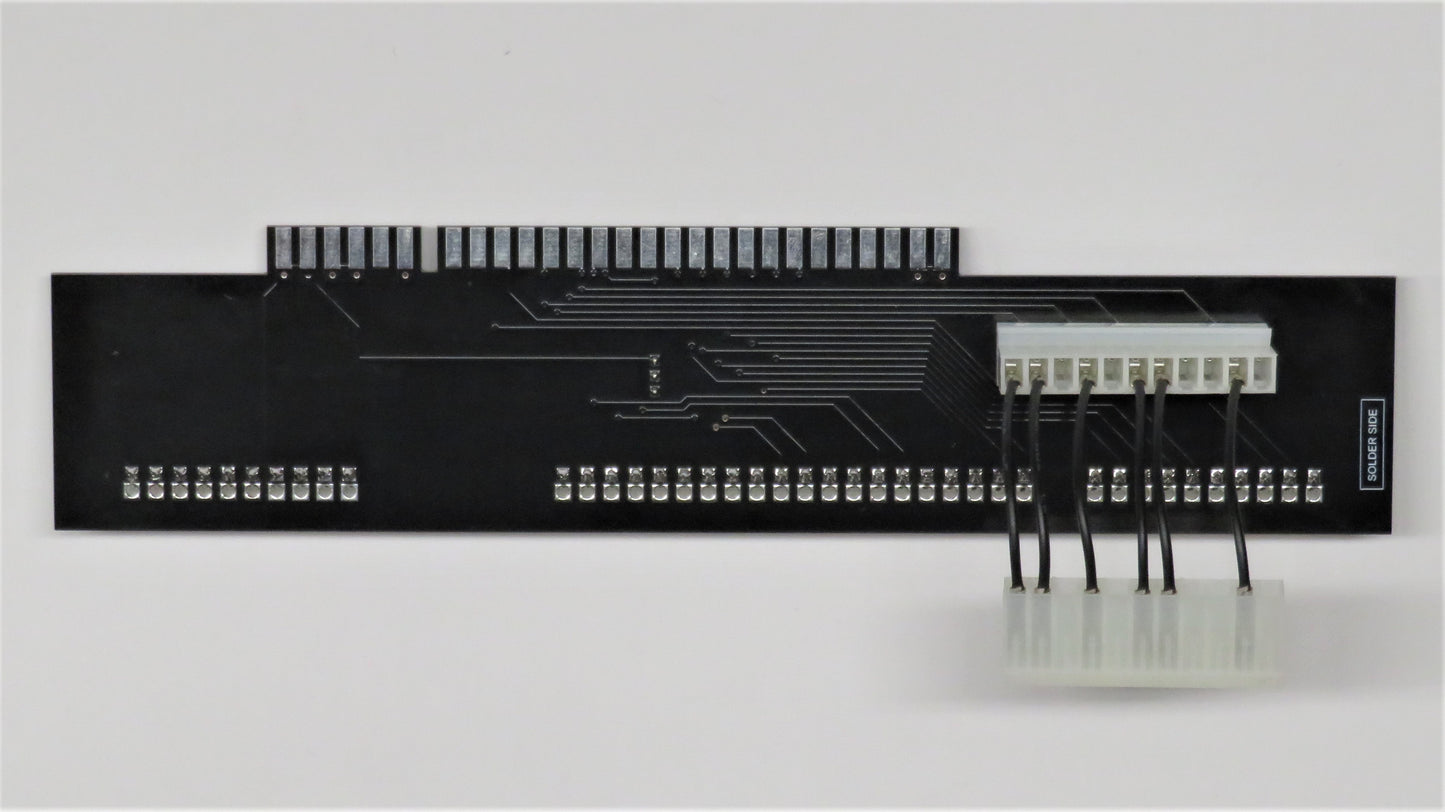

Super Pacman to JAMMA Adapter
Namco, arguably the most successful arcade game manufacturer, created 2 pinout classes for their games in the 1980s. One of these conversion classes was used in Galaxian, Pacman and its sequels, and the other was used in Galaga and the Namco games that followed.
Even though Galaxian and Pacman pinouts are similar and are often referred to as being in the same conversion class, they are not exactly the same. Connecting either game to the other’s cabinet breaks the controls and may result in damage to the game board and the speaker due to changes in how the sound is wired between these two games.
While it’s possible to produce an adapter that could support both genuine Namco Galaxian and Pacman games, it has the potential to be unsafe. It would also be impractical to support the numerous bootleg variants on one adapter only.
There are therefore two separate adapters for the first conversion class, one for Galaxian and one for Pacman. Both of these adapters support the original and bootleg versions of the game.
Also, please keep in mind that there are many, many clones of these two games. In addition to a large number of clones that run on similar hardware, there are at least three popular versions of Pac-Man and Ms. Pac-Man games that run on completely different hardware and have different pinouts. Obviously, these games will not be compatible with this adapter.
There are also many unrelated games that were ported to run on Pacman hardware and may work perfectly. This adapter was designed to support only the genuine Namco versions of these two games, and their most popular bootleg variants. It will be up to you to ensure you have to correct board for this adapter. Please verify your game’s pinout against the pinout listed on this page. If unsure whether the game you have is compatible, do not connect your board or you run the risk of damaging it, the adapter, or your cabinet.
This is the list of games that you may be able to use with this adapter:
The adapter has been tested with a genuine Super Pacman PCB manufactured by Midway in North America.
Pinout is ordered right to left when looking at the parts side of the board with the edge connector facing away.
