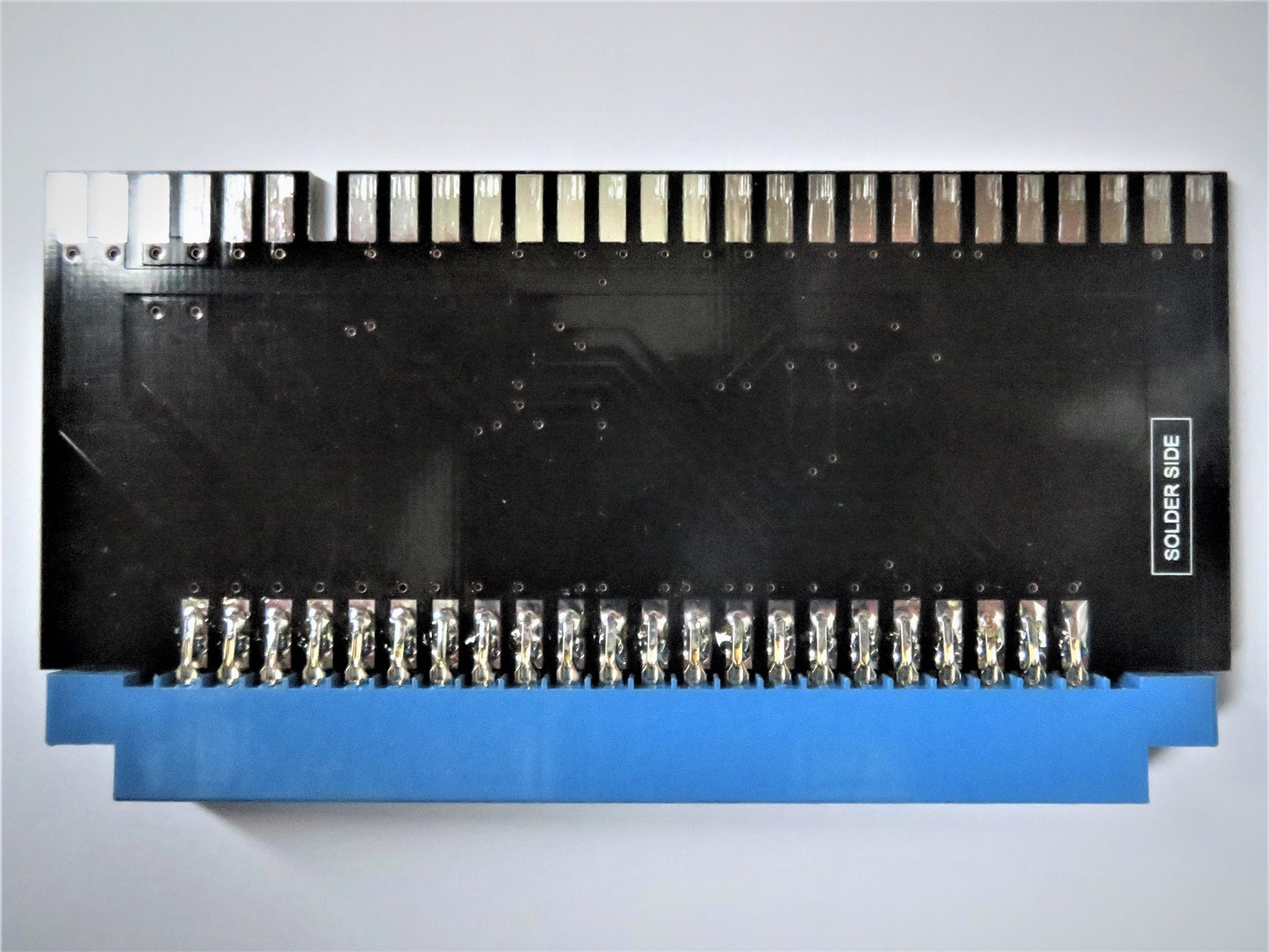

Sega Zaxxon to JAMMA Adapter
Couldn't load pickup availability
Allows you to use your Sega Zaxxon, Congo Bongo or pinout compatible pre-JAMMA game, in a JAMMA cabinet or a super gun device.
When Sega released Zaxxon in the arcades in 1982 it became an instant hit for its unique and innovative game play. It was the first game with axonomeric projection (hence the name Zaxxon) which gave the game its unique 3D look and feel, and was unlike anything present in the arcades at the time.
According to VAPS statistics, Zaxxon is in the top 50 the most collected early pre-JAMMA video games of all time.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| GND | GND |
| +5V | +5V |
| +5V | +5V |
| -5V | -5V |
| +12V | +12V |
| SPK- | SPK+ |
| COUNT1 | COUNT2 |
| COIN1 | COIN2 |
| RESET | SVC |
| P1START | P2START |
| P1LEFT | P1RIGHT |
| P1UP | P1DOWN |
| P1B1 | P1B2 |
| P2LEFT | P2RIGHT |
| P2UP | P2DOWN |
| P2B1 | P2B2 |
| GND | GND |
| VRED | VGREEN |
| VBLUE | VSYNC |
| GND | GND |
| GND | GND |
Dimensions
Dimensions
