Sega Pengo to JAMMA Adapter
Couldn't load pickup availability

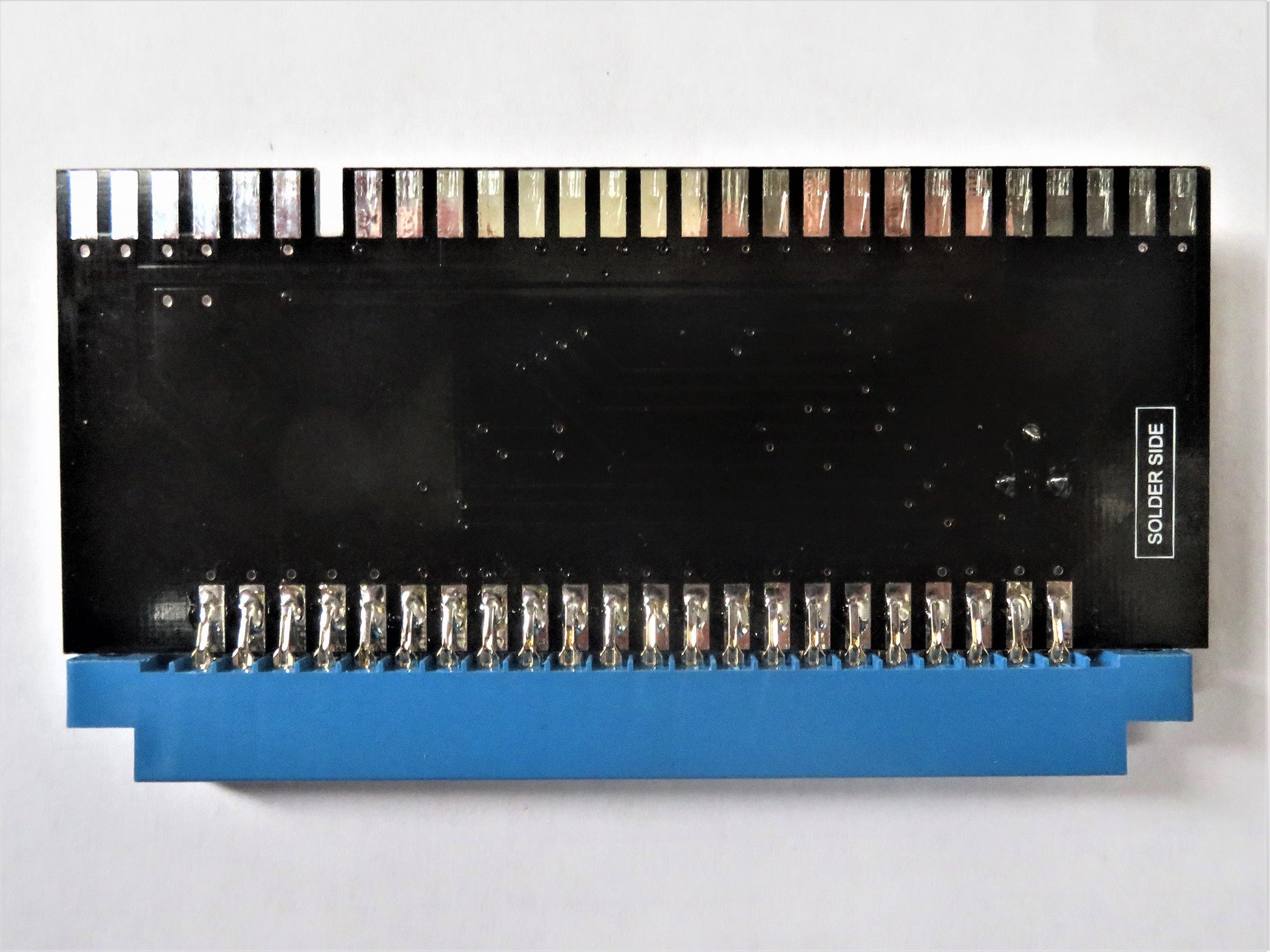

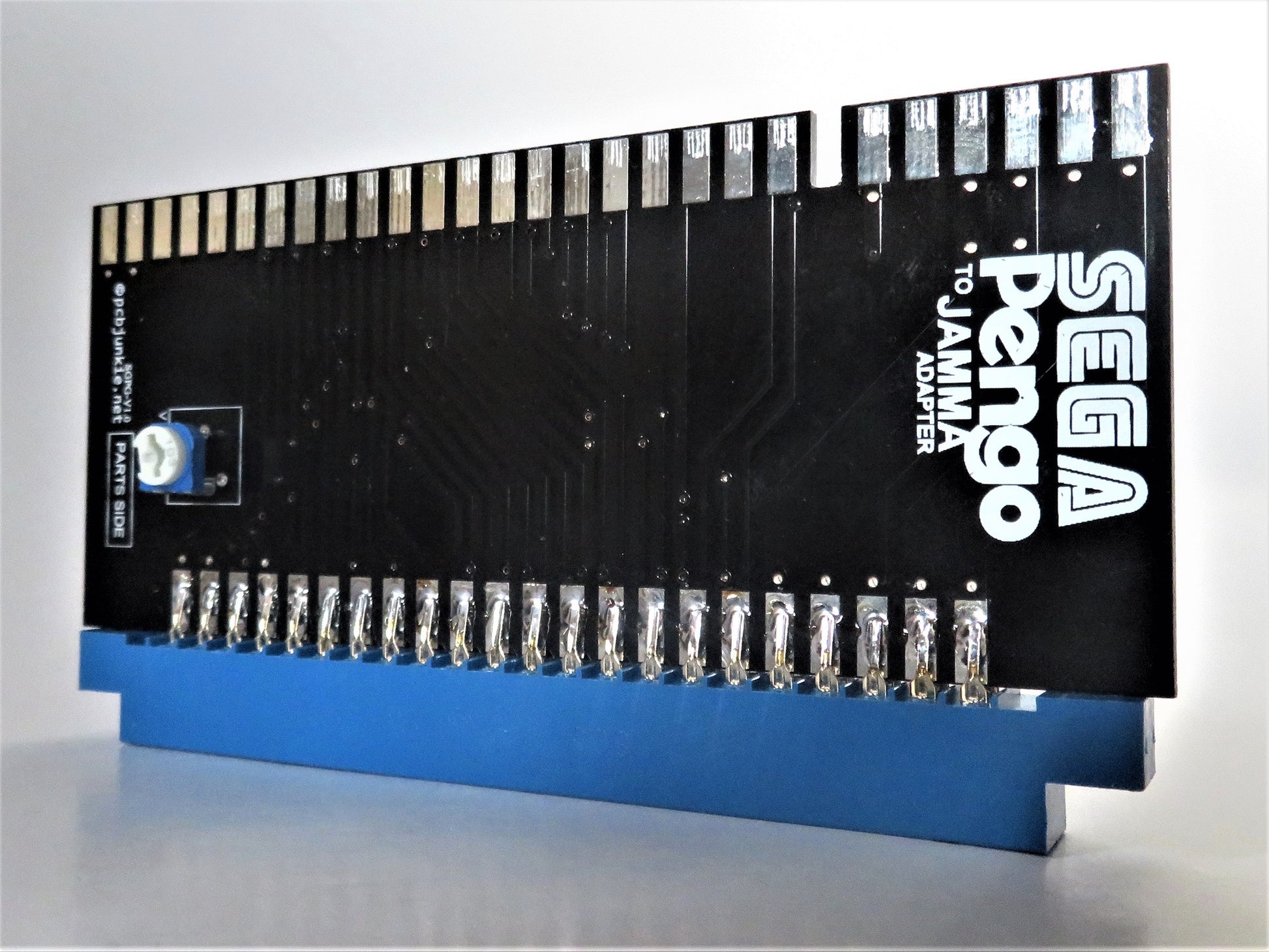

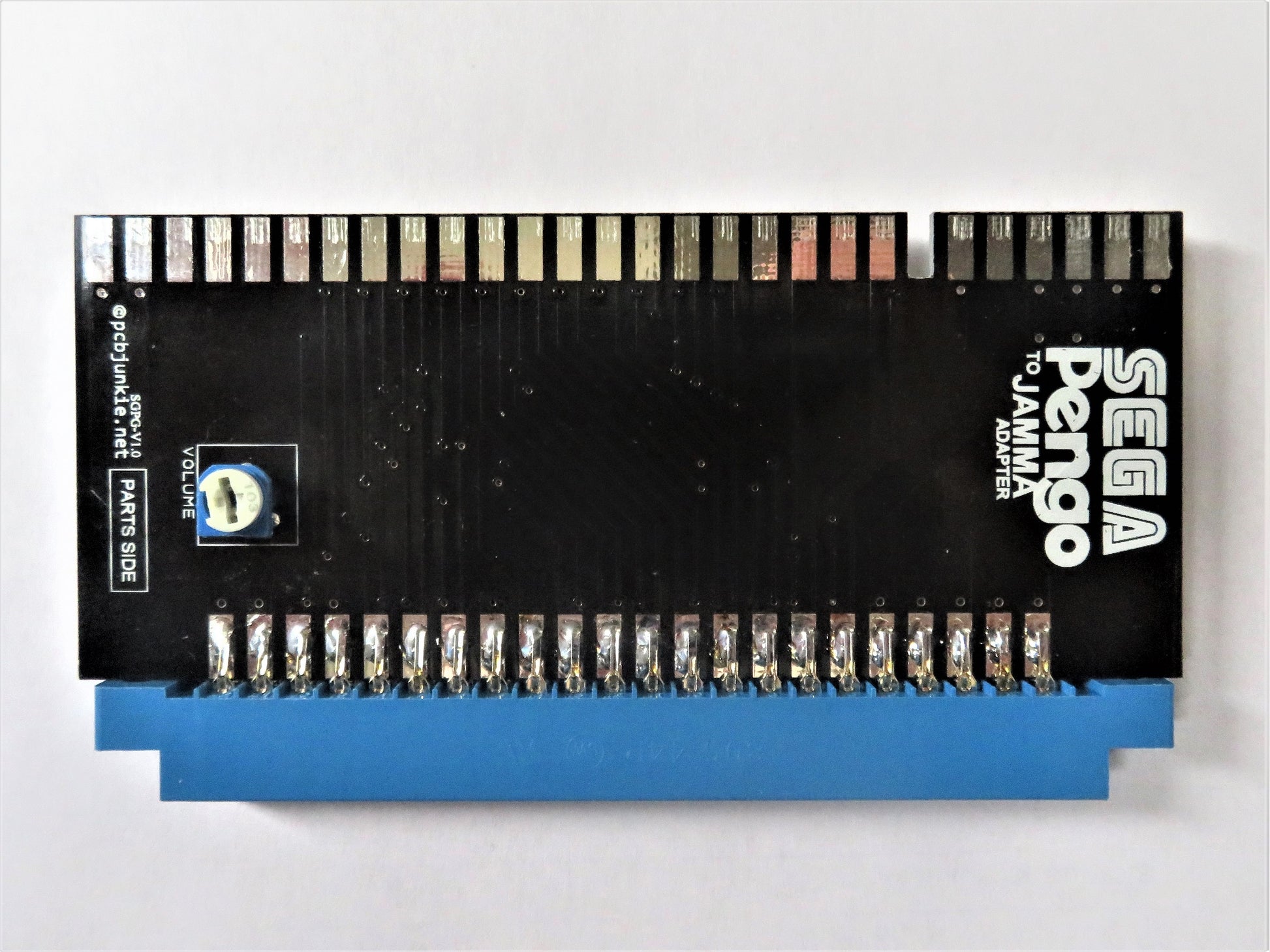

Allows you to use your Sega Pengo pre-JAMMA game, in a JAMMA cabinet or a super gun device.
Pengo was developed by Coreland and released by Sega in the arcades in 1982. The game introduced some interesting mechanics which make it quite fun, and as a result became fairly popular. It is still rather enjoyable even by today’s standards.
This game pcb is unusual in a sense that it has a unique pinout and was released by a Sega, an already successful arcade game company at that time, that used a common pinout in their other releases. To this day, according to VAPS statistics, Pengo is one of the top most collected early video games of all time with a unique pinout.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| GND | GND |
| +5V | +5V |
| +5V | +5V |
| +5V | +5V |
| P1B1 | COUNT2 |
| P2B1 | COUNT1 |
| COIN1 | COIN2 |
| TEST | SVC |
| P1START | P2START |
| P1LEFT | P1RIGHT |
| P1UP | P2UP |
| P2LEFT | P2RIGHT |
| NC | P1DOWN |
| GND | GND |
| VRED | VGREEN |
| VBLUE | VSYNC |
| P2DOWN | SPK+ |
| +12V | +12V |
| VOL* | VOL* |
| GND | GND |
| GND | GND |
Dimensions
Dimensions
