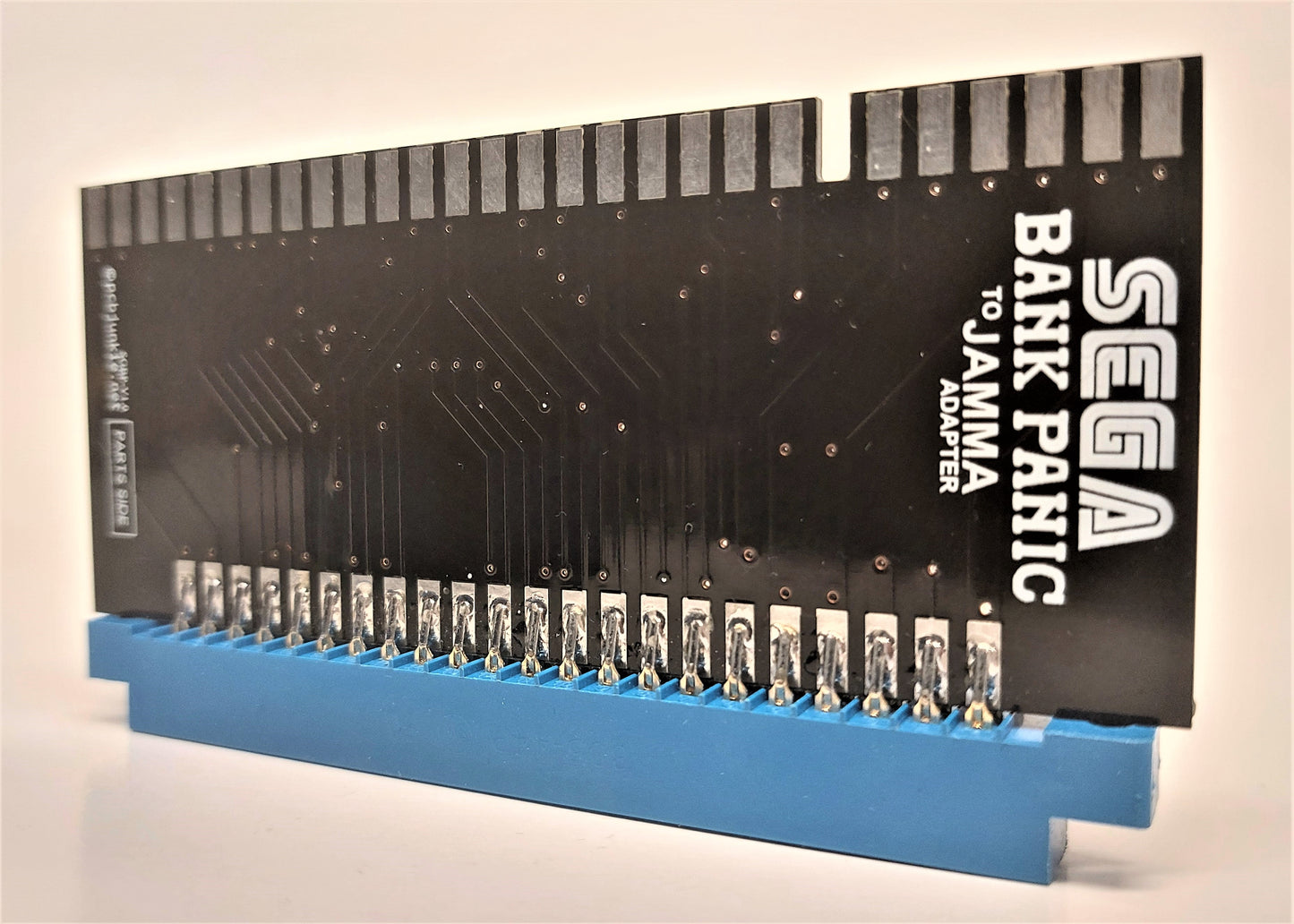

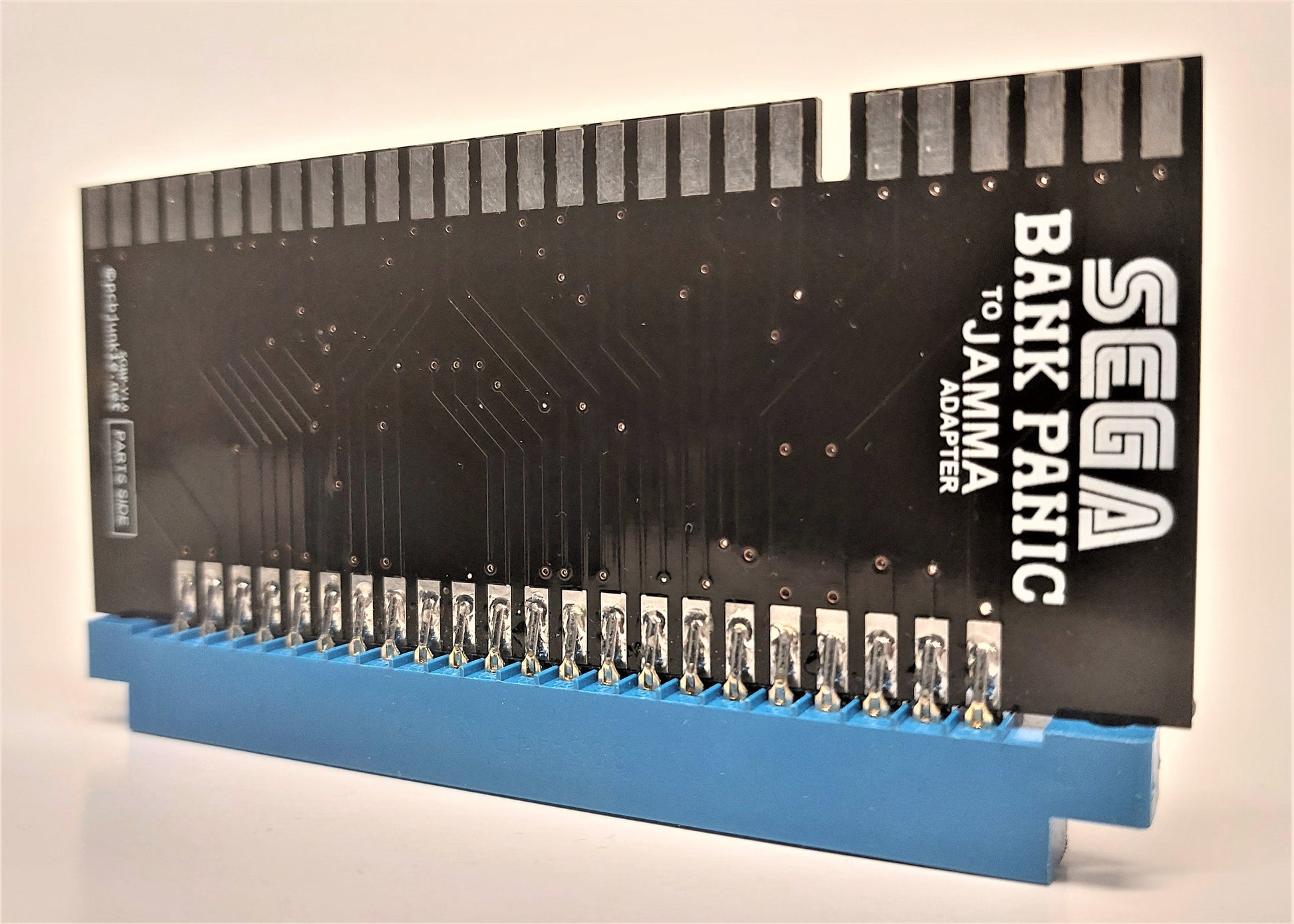

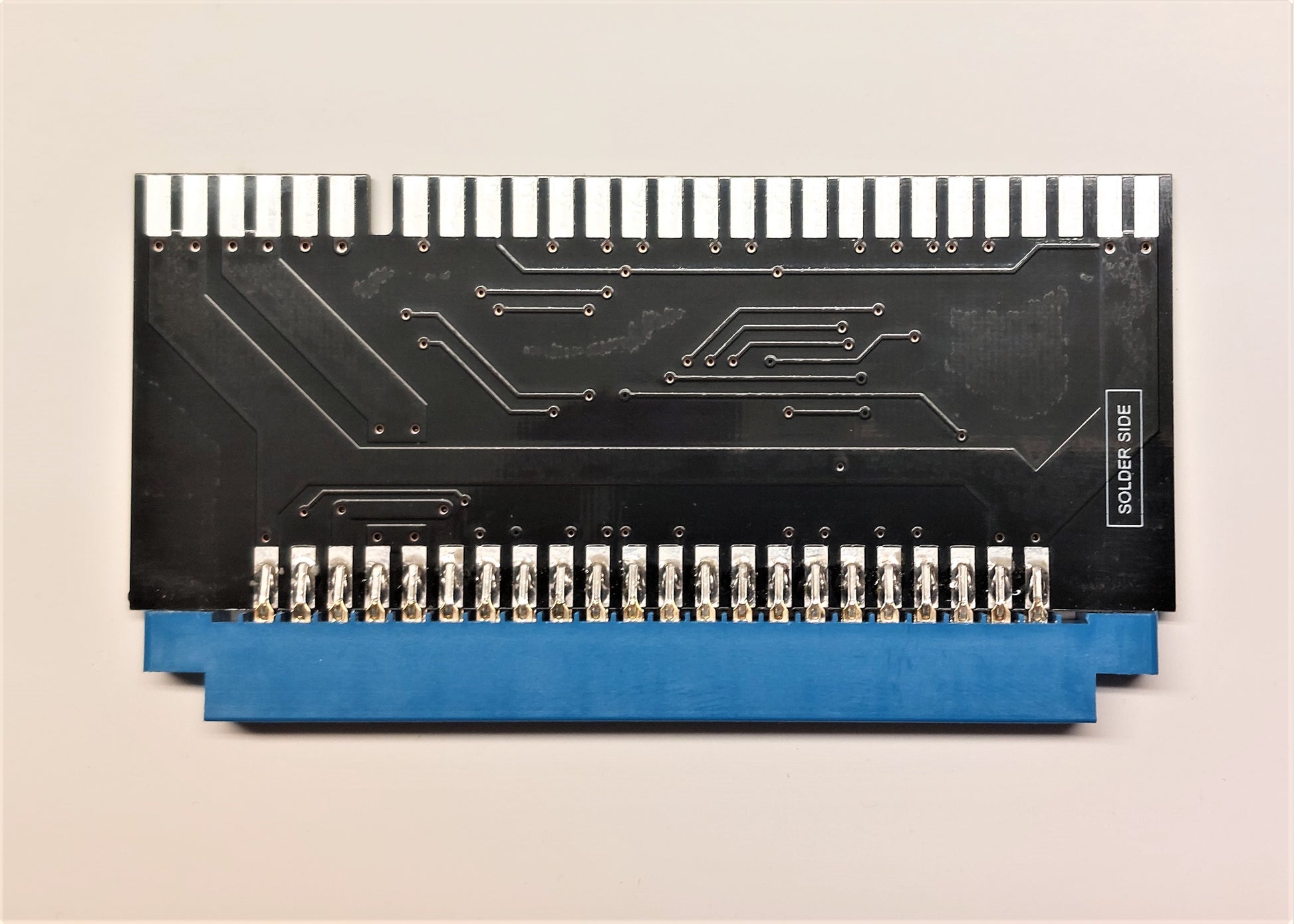

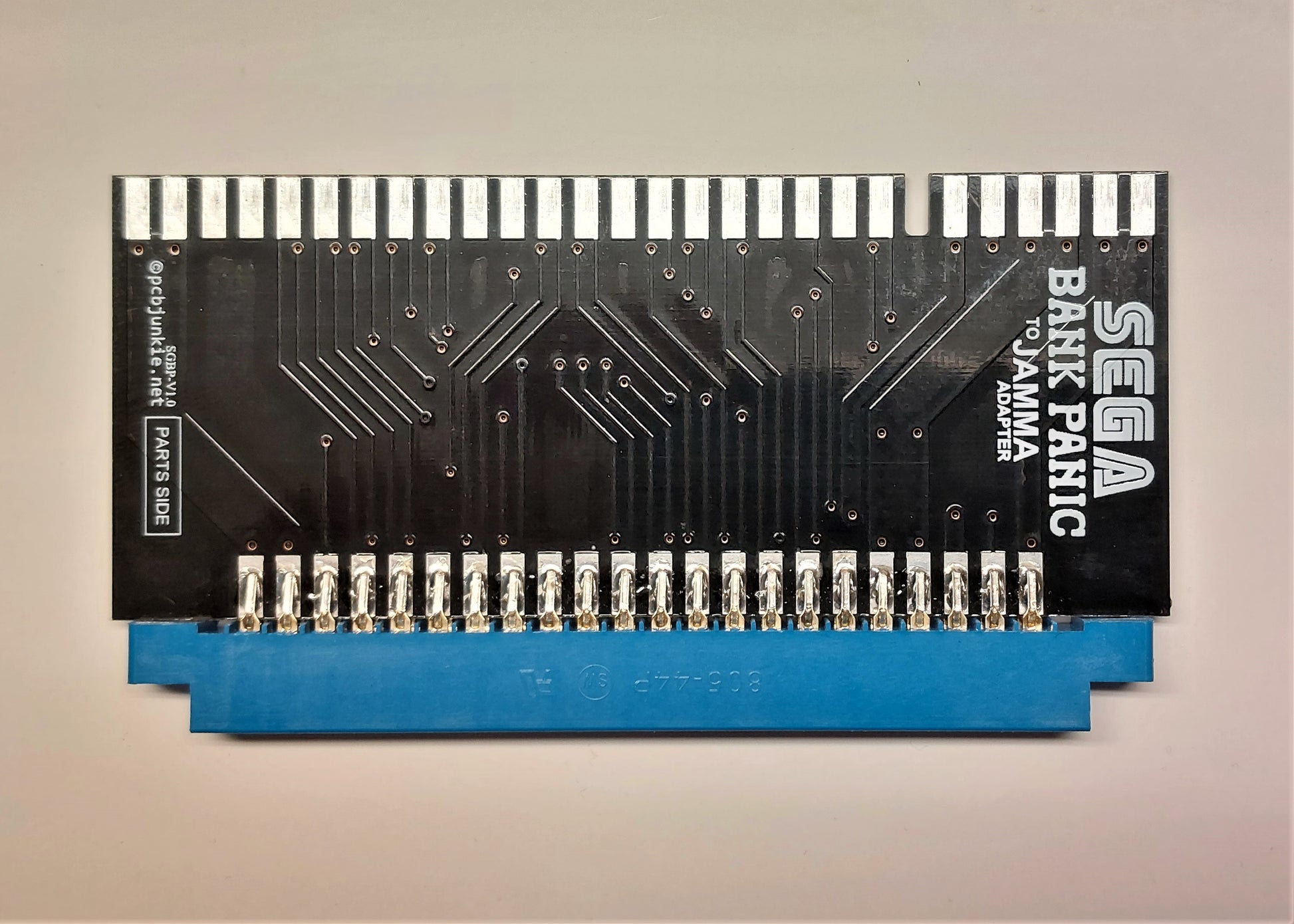

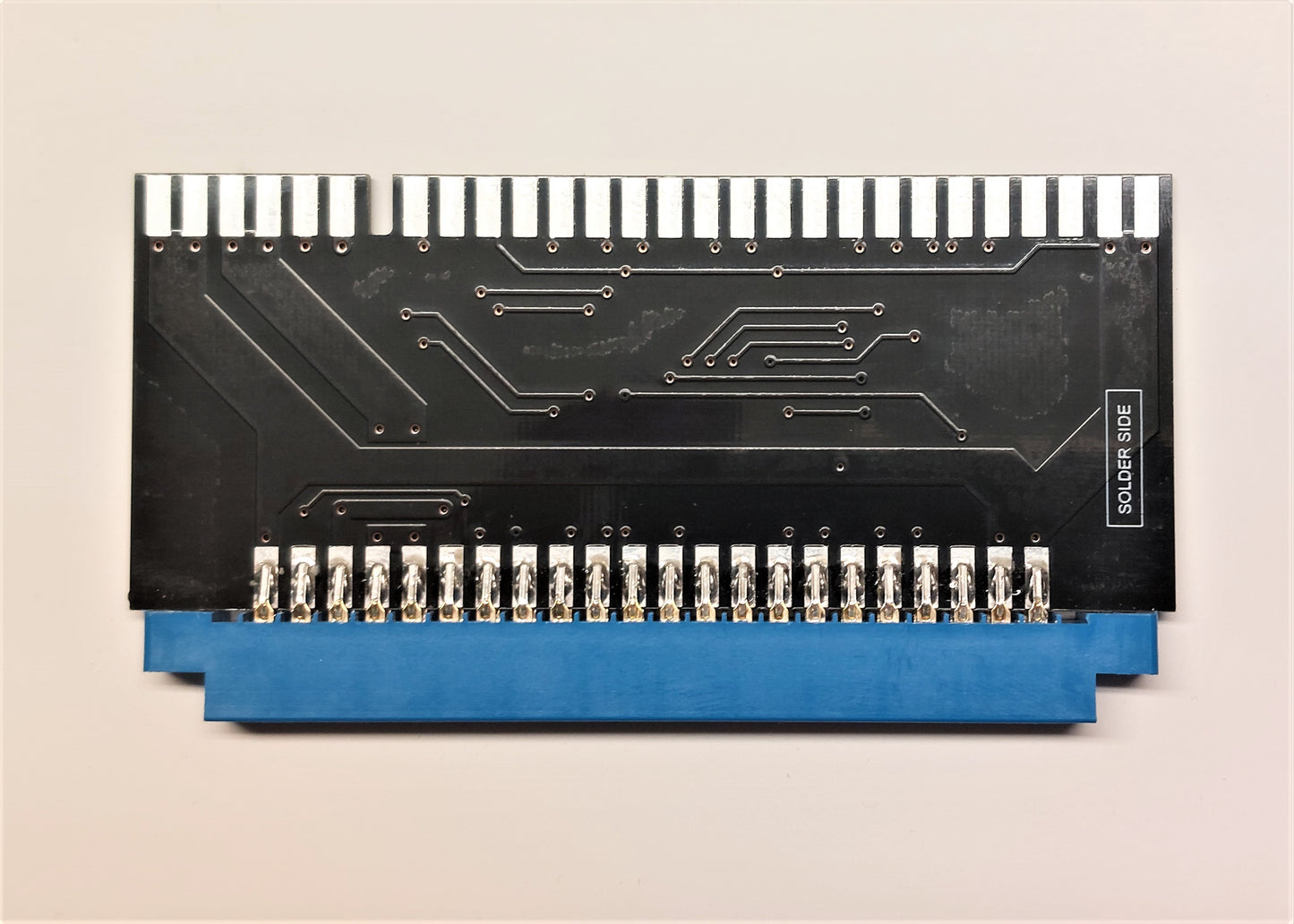

Sega Bank Panic to JAMMA Adapter
Couldn't load pickup availability
Allows you to use your Sega Bank Panic pre-JAMMA game, in a JAMMA cabinet or a super gun device.
Bank Panic was originally developed by Sanritsu Denki and released outside of North America by Sega for the arcade and the console market. In the US the game was manufactured and distributed by Bally / Midway.
This is yet another game released by Sega with a unique pinout, most likely because the game was not developed in house by Sega themselves.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| SPKGND | SPKGND |
| SPK2+ | SPK1+ |
| +12V | +12V |
| +5V | +5V |
| +5V | +5V |
| NC | NC |
| VSYNC | VBLUE |
| VGREEN | VRED |
| SVC | COUNT2 |
| COIN1 | COUNT1 |
| P2RIGHT | P1RIGHT |
| P2LEFT | P1LEFT |
| NC | NC |
| NC | NC |
| P2B1 | P1B1 |
| P2START | P1START |
| NC | NC |
| P2B2 | P1B2 |
| P2B3 | P1B3 |
| NC | COIN2 |
| GND | GND |
| GND | GND |
Dimensions
Dimensions
