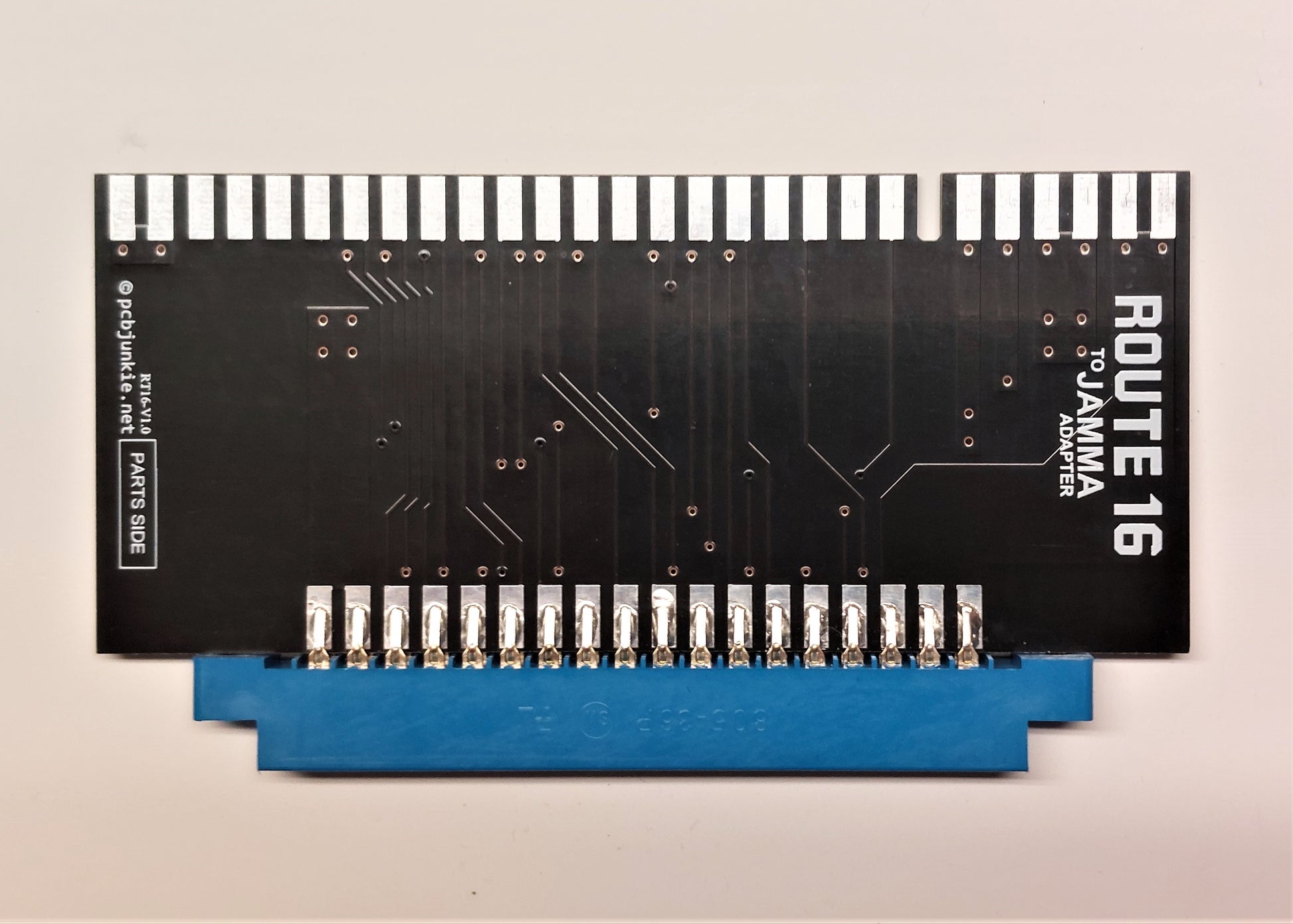

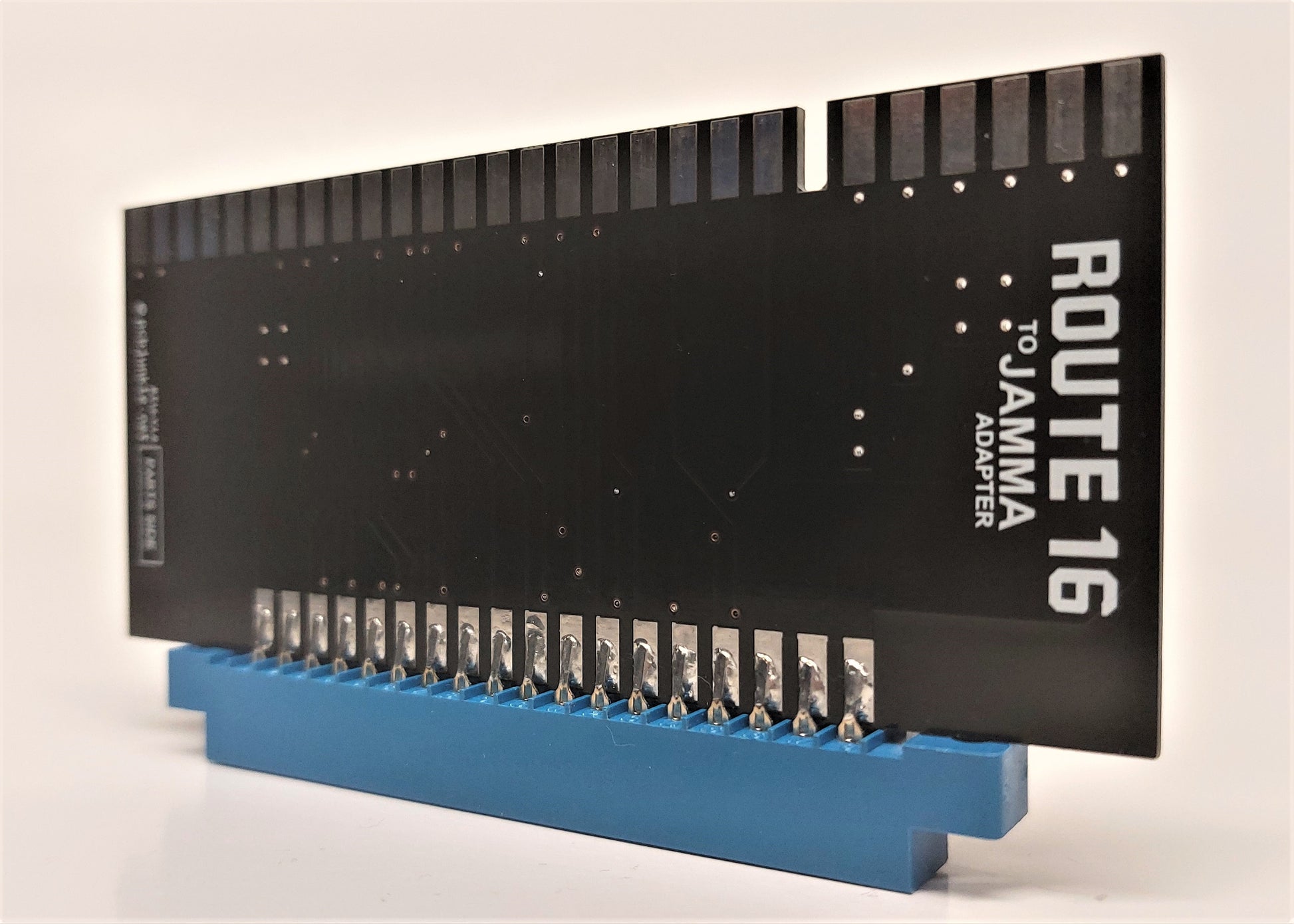

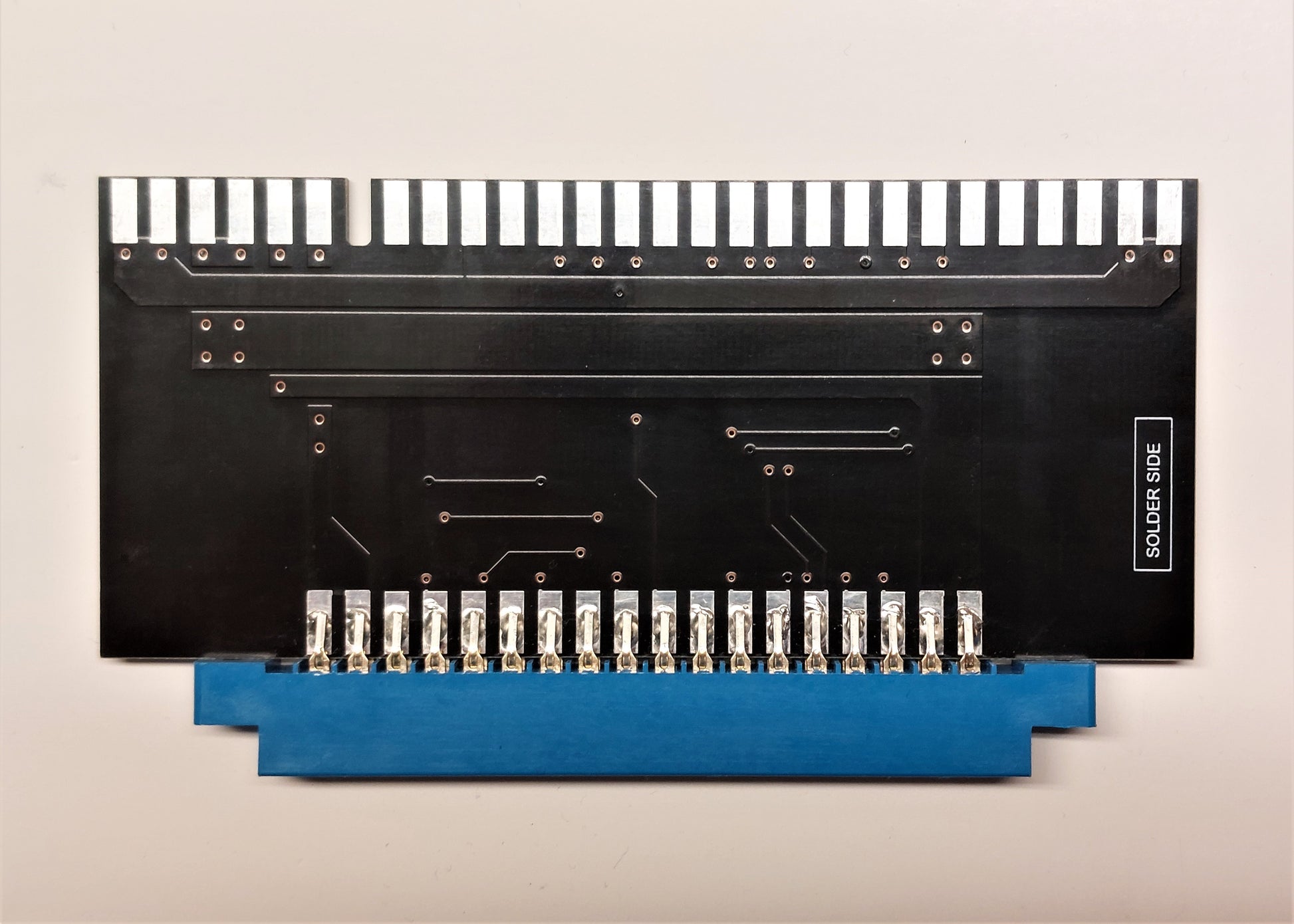

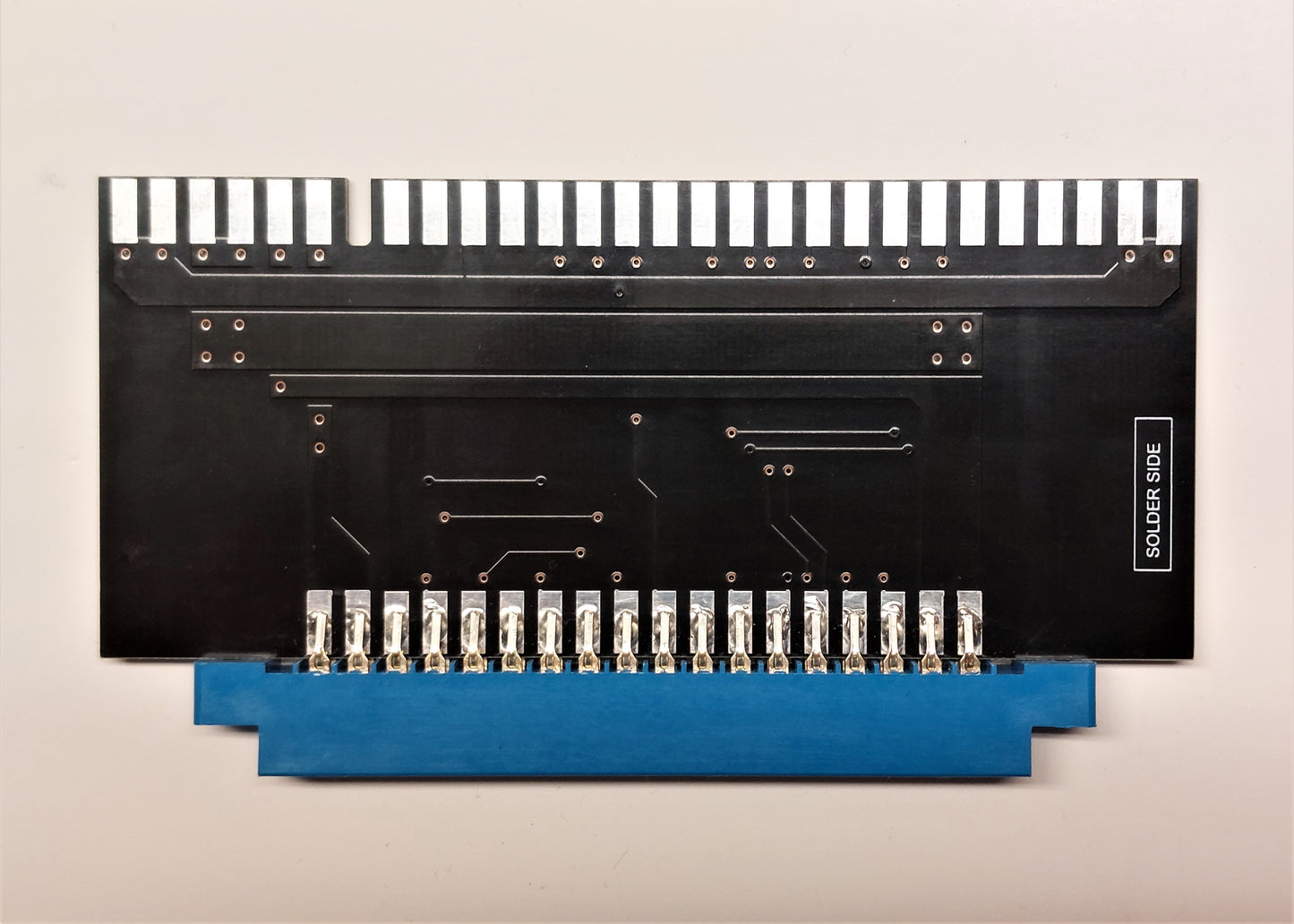

Route 16 to JAMMA Adapter
Couldn't load pickup availability
Allows you to use your Route 16 pre-JAMMA game, in a JAMMA cabinet or a supergun device.
Route 16 was originally developed by Sun Electronics and was released in 1981 and distributed by Centuri.
Route 16 is a fairly rare game and has a unique pinout. Games made in the early 1980s typically did not use common pinout standards.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
Pinout
Pinout
SOLDER SIDE | PARTS SIDE |
---|---|
+12V | GND |
+12V | GND |
NC | GND |
SPK+ | VSYNC |
NC | VBLUE |
NC | VRED |
COUNT | VGREEN |
NC | NC |
COIN1 | P1START |
SVC | P2START |
NC | NC |
P1B1 | P2B1 |
P1DOWN | P2DOWN |
P1UP | P2UP |
P1LEFT | P2LEFT |
P1RIGHT | P2RIGHT |
-5V | +5V |
-5V | +5V |
Dimensions
Dimensions
Board Size: 50mm x 112mm
Weight: 50g
