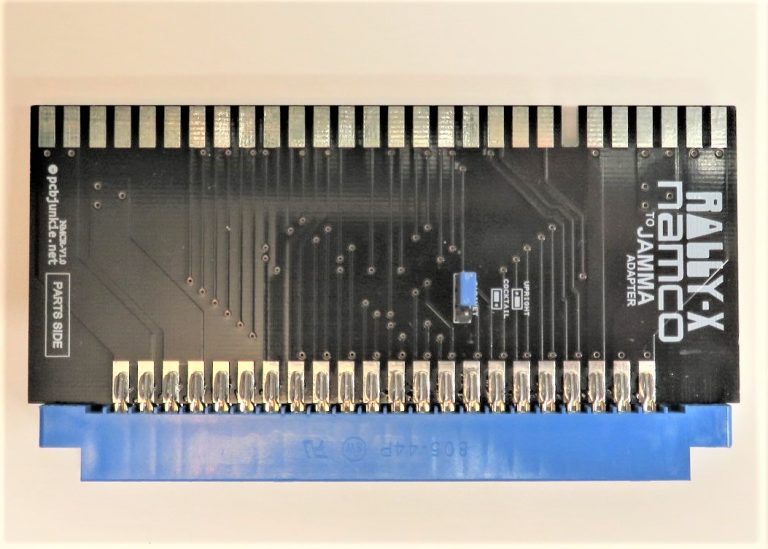

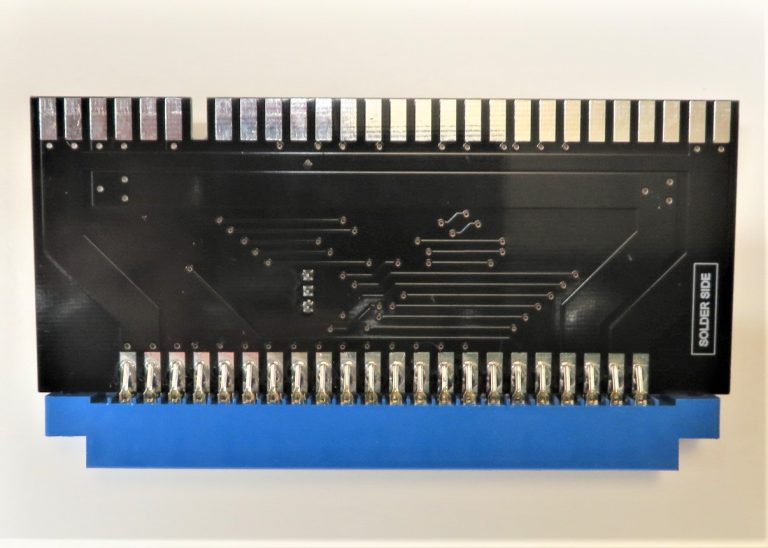

Namco Rally-X to JAMMA Adapter
Couldn't load pickup availability
Rally-X was a fairly popular game developed by Namco in 1980. While the hardware was similar to Pacman, the game uses a unique pinout due to the different power requirements and the addition of button controls. Namco ended up standardizing their pinouts going forward with the release of Galaga in 1981. Midway licensed the game for distribution in North America.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
The adapter has been tested with a genuine version of Namco’s Rally-X
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| GND | GND |
| +12V | +12V |
| SPK+ | SPK- |
| VSYNC | VBLUE |
| VGREEN | VRED |
| VGND | GND |
| TABLE | NC |
| TEST | CREDSW |
| P2B1 | P1B1 |
| P2LEFT | P1LEFT |
| P2RIGHT | P1RIGHT |
| P2DOWN | P1DOWN |
| P2UP | P1UP |
| P2START | P1START |
| NC | COIN1 |
| COUNT1 | NC |
| CREDMULTPW | CREDMUL |
| +5V | +5V |
| +5V | +5V |
| GND | GND |
| GND | GND |
