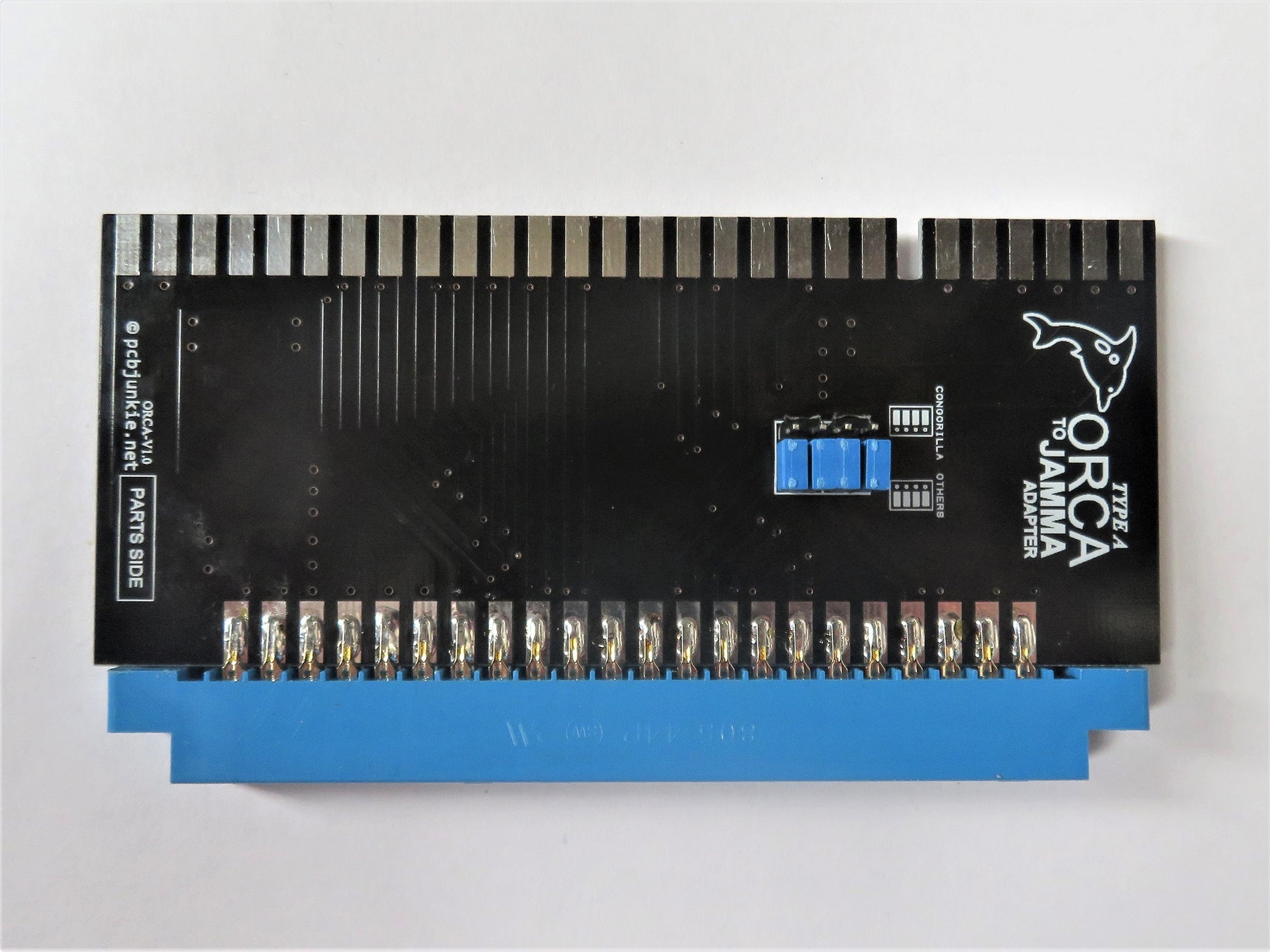

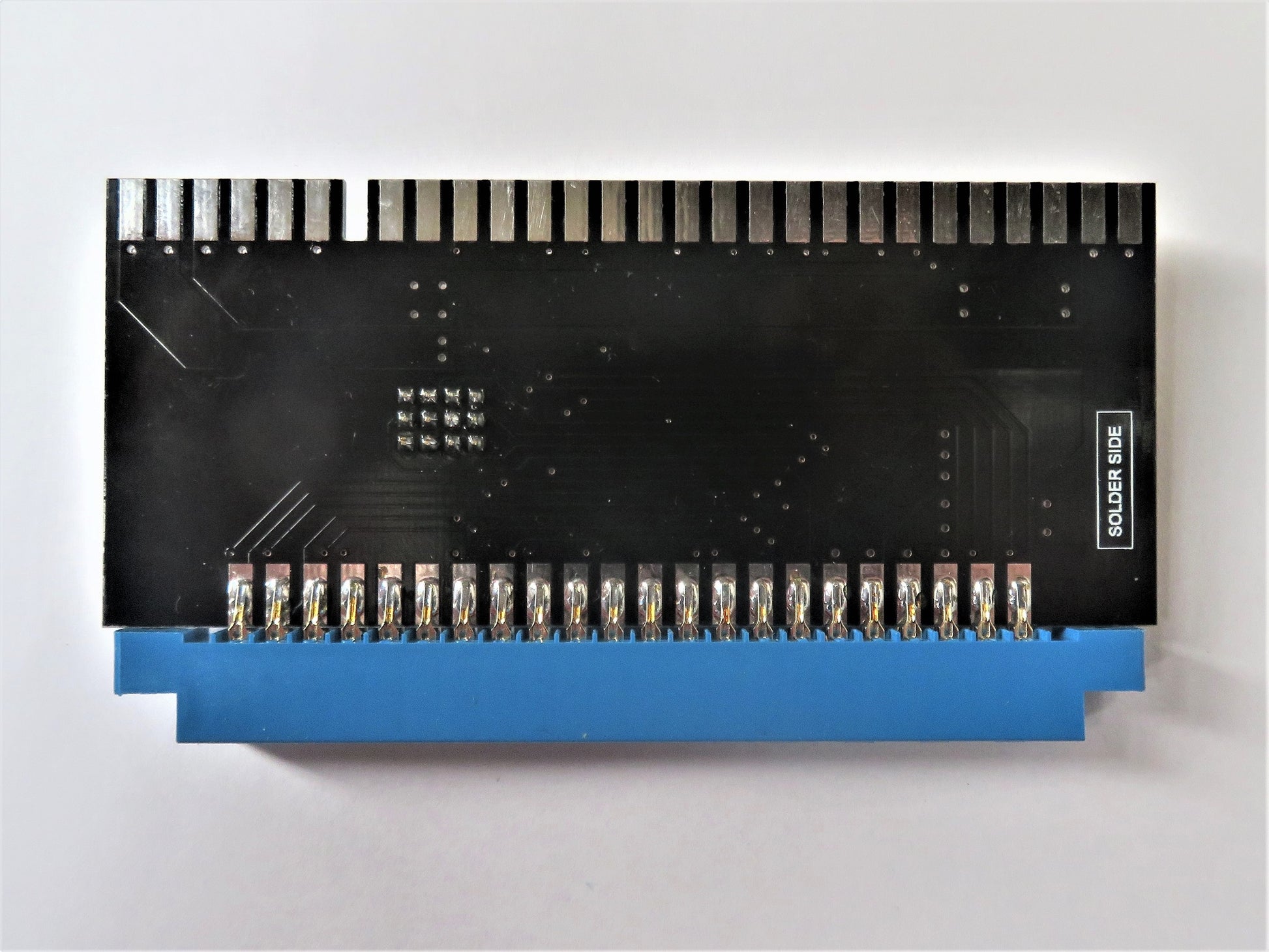

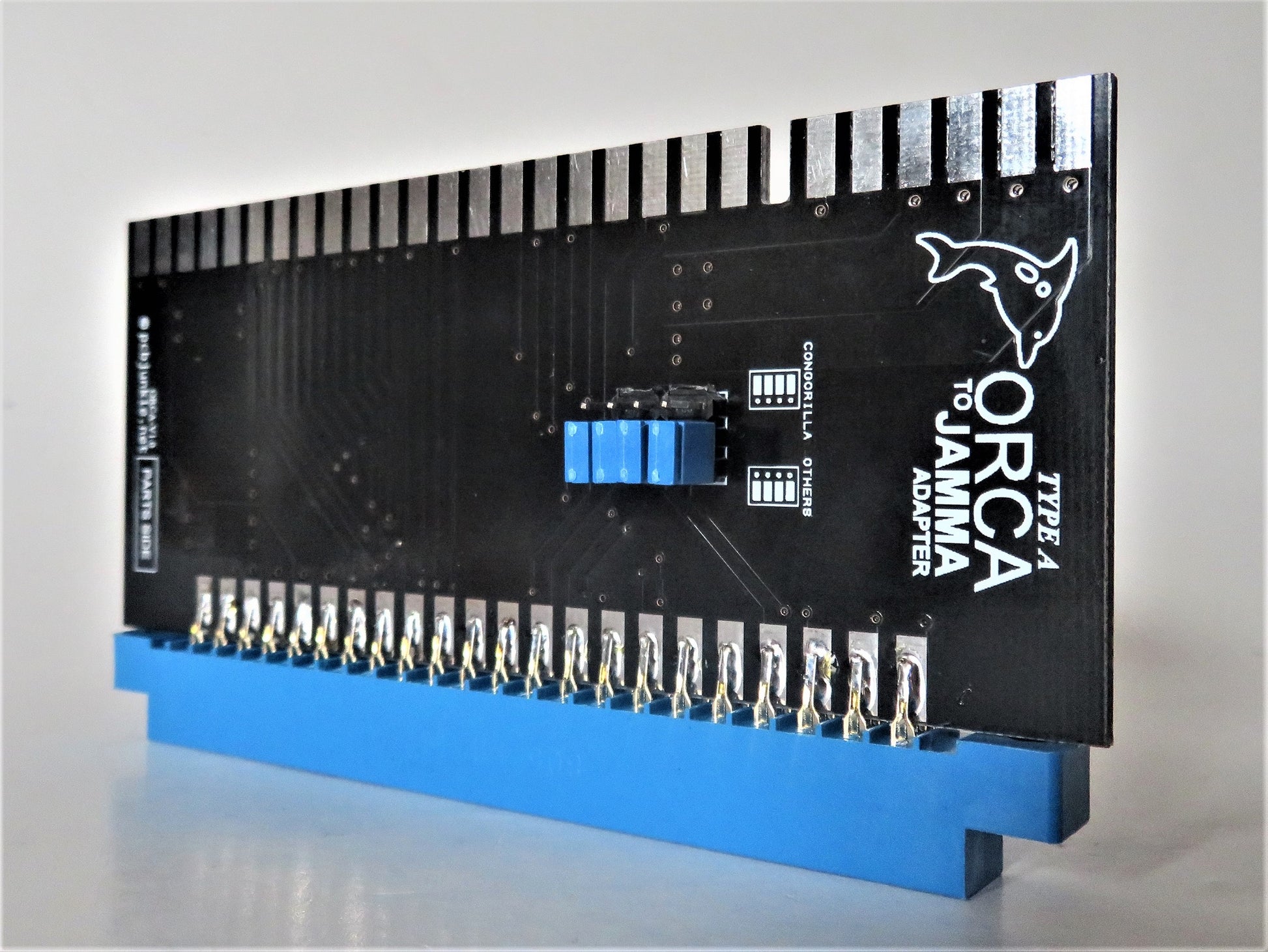

Orca Type A to JAMMA Adapter

Regular price $26.99 CAD
Regular price Sale price $26.99 CAD
Sale Sold out

Allows you to use your Orca or pinout compatible pre-JAMMA game, in a JAMMA cabinet or a supergun device.

Orca, a company whose employees eventually formed Toaplan in the late 1980s, released a few original games earlier in the decade. They also bootlegged a few popular games like Ms. Pacman and Crazy Kong (aka Congorilla).

The company used two main pinouts for their games, one used mainly with their static, board type games using the OVG-5X PCB models, and another used in scrolling games and shooters that use the other Orca hardware with different designations. There are however exceptions to this rule with Orca games, so please check the pinout section to determine whether the game you have is compatible with this adapter.

This adapter aims to be as compatible as possible with the fixed screen games.

For an adapter that works with shooter games like Espial, Vastar, Zodiack, etc… please see the listing for Orca Type B adapters.

Game Compatibility

This adapter should be compatible with the following games:

and likely other games by Orca.

It is extremely important that you check the pinout against your board before powering on your game. Orca released bootleg games that are compatible with the original game pinouts.

The adapter has been tested with Changes and Orca Crazy Kong.

Pinout

SOLDER SIDE PARTS SIDE
P2UP P2DOWN
NC P1B1
P1UP P1DOWN
P1*/P2 LEFT P1*/P2 RIGHT
NC NC
NC NC
P1UP P1DOWN
NC P2B1
P2UP P2DOWN
P1/P2* LEFT P1/P2* RIGHT
NC NC
NC NC
COIN1 COIN2
P1START P2START
NC NC
SPK+ +12V
+5V +5V
+5V +5V
GND GND
GND GND
VSYNC VBLUE
VGREEN VRED

(*) – Congorilla pinout.

Dimensions

Board Size: 50mm x 112mm
Weight: 50g

Shipping & Returns

Standard 30 days return policy. Buyer pays for return shipping. See Return policy page for more information.
