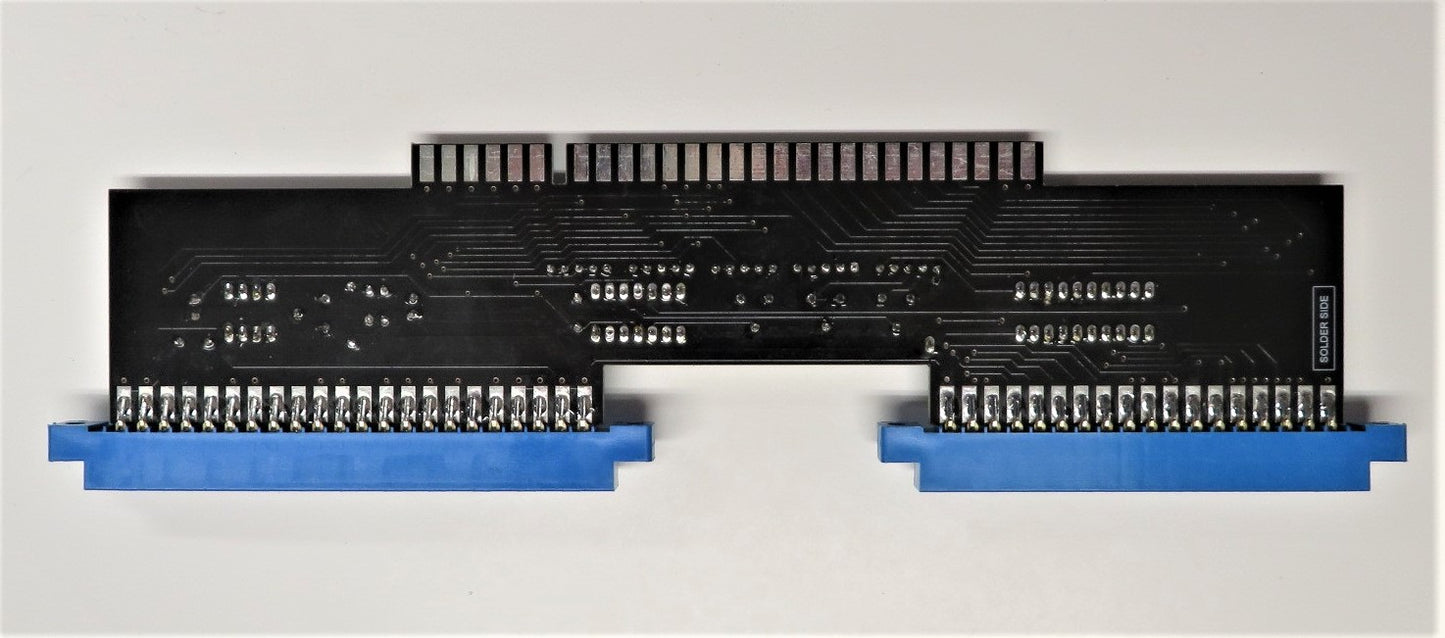

Nintendo PlayChoice-10 Single to JAMMA Adapter
Couldn't load pickup availability
Allows you to play you Nintendo Playchoice 10 games in a JAMMA cabinet or a supergun device.
After the success with the NES / Famicom consoles, Nintendo developed what can be thought of as cross-promotional hardware, to run its most popular NES games inside an arcade cabinet. Two such systems were developed. The VS system tried to be more of an arcade system and used modified NES games, while the PC-10 system was very similar to the home console, and used the exact same game ROMs with an additional ROM for gameplay instuctions. The PC-10 had a secondary CPU that controlled the display for the game select and gameplay hint screens and the game timer.
Two versions of the PC-10 system exist. The “single” system, used a single display which would switch between the game and the hint / timer screen. The “dual” system had two dedicated monitors for each of the two functions. The “single” system was a retrofit for the VS system cabinets and used a pinout similar to the VS system pinout. The “dual” system was a retrofit for the PunchOut cabinet and used a 56 pin pinout, nearly identical to PunchOut.
This adapter works with the Single version of the Playchoice-10, but it is not compatible with the Dual version of the PCB. The adapter features a video generator for on-screen display of the in-game timer, a video inverter circuit and a sound amplifier.
Some Playchoice 10 functions don’t have a JAMMA equivalent. The following mapping is used to wire these functions to corresponding JAMMA controls:
PC-10 FUNCTION | JAMMA FUNCTION |
---|---|
START | P1 START |
SELECT | P2 START |
TIMER ON-SCREEN DISPLAY | P1 BUTTON 3 |
RESET | P1 BUTTON 4 |
CHANNEL SELECT | P2 BUTTON 3 |
CHANNEL ENTER | P2 BUTTON 4 |
Game Compatibility
Game Compatibility
Pinout
Pinout
44 Pin Edge Connector:
SOLDER SIDE | PARTS SIDE |
---|---|
GND | GND |
GND | GND |
SOUND | NC |
SVC | NC |
NC | NC |
COUNT | NC |
+12V | NC |
NC | NC |
NC | NC |
VSYNC | NC |
VBLUE | NC |
VGND | NC |
VGREEN | NC |
VRED | NC |
COIN2 | NC |
COIN1 | NC |
NC | NC |
+12V | +12V |
+5V | +5V |
+5V | +5V |
GND | GND |
GND | GND |
36 Pin Edge Connector:
SOLDER SIDE | PARTS SIDE |
---|---|
GND | GND |
P1B1 | RESET |
P1B2 | NC |
P1DOWN | NC |
P1UP | +5V |
P1LEFT | GUN HIT |
P1RIGHT | GUN TRIG |
GAME ENT | LEDWR |
CH START | LEDA0 |
GAME SEL | LEDA1 |
CH SEL | LEDA4 |
P2B1 | +5V |
P2B2 | +5V |
P2DOWN | LEDD0 |
P2UP | LEDD1 |
P2LEFT | LEDD2 |
P2RIGHT | LEDD3 |
GND | GND |
Dimensions
Dimensions
Board Size: 50mm x 210mm
Weight: 120g
