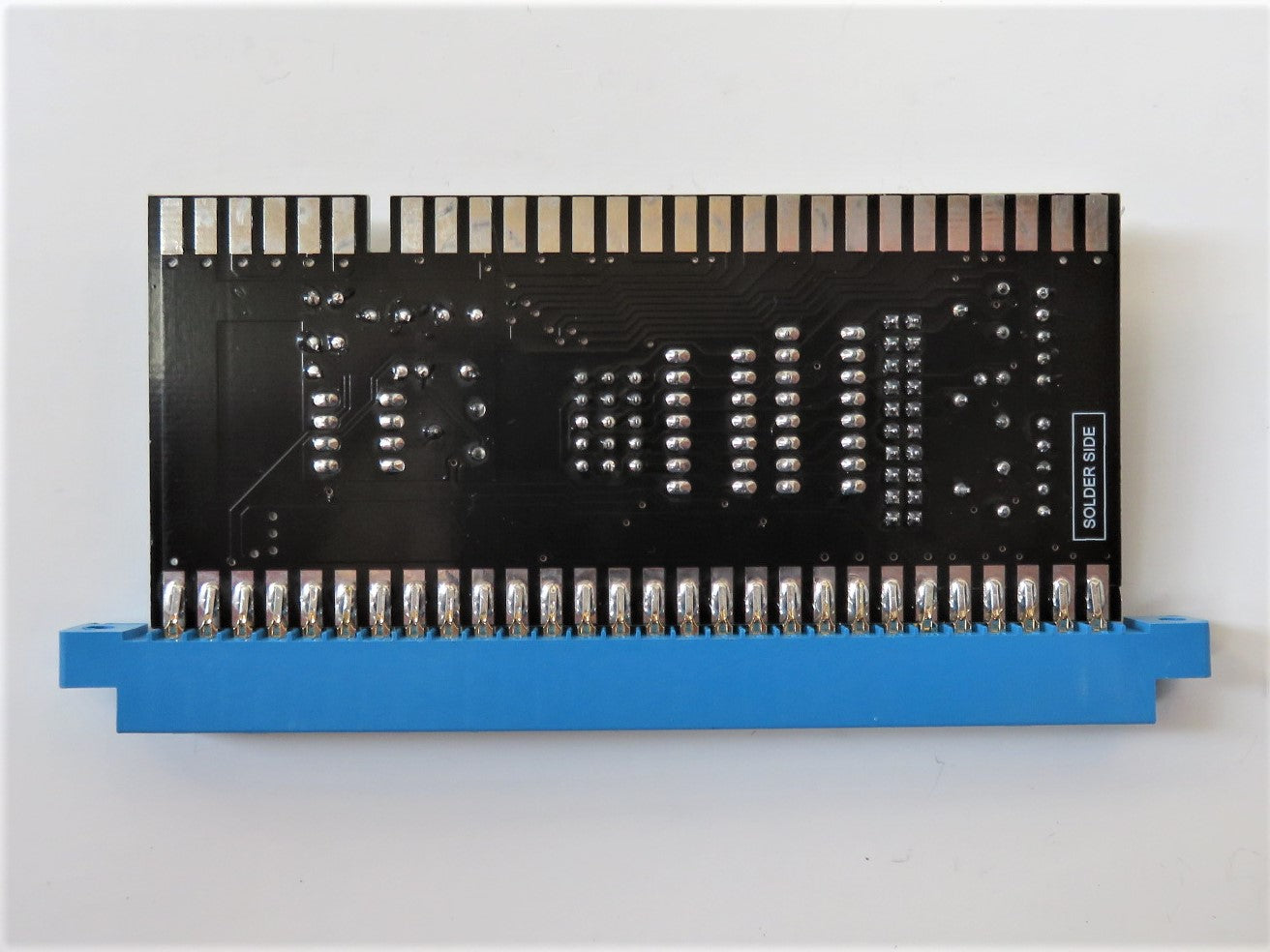

Nintendo PlayChoice-10 Dual to JAMMA Adapter

Regular price $79.99 CAD
Regular price Sale price $79.99 CAD
Sale Sold out

Allows you to play you Nintendo Playchoice 10 games in a JAMMA cabinet or a supergun device.

After the success with the NES / Famicom consoles, Nintendo developed what can be thought of as cross-promotional hardware, to run its most popular NES games inside an arcade cabinet. Two such systems were developed. The VS system tried to be more of an arcade system and used modified NES games, while the PC-10 system was very similar to the home console, and used the exact same game ROMs with an additional ROM for gameplay instuctions. The PC-10 had a secondary CPU that controlled the display for the game select and gameplay hint screens and the game timer.

Two versions of the PC-10 system exist. The “single” system, used a single display which would switch between the game and the hint / timer screen. The “dual” system had two dedicated monitors for each of the two functions. The “single” system was a retrofit for the VS system cabinets and used a pinout similar to the VS system pinout. The “dual” system was a retrofit for the PunchOut cabinet and used a 56 pin pinout, nearly identical to PunchOut.

The adapter works with the Dual version of the Playchoice 10 but it is not compatible with the Single version of the PCB. This adapter features a video switching circuit, and video inverter circuit and a sound amplifier.

Some Playchoice 10 functions don’t have a JAMMA equivalent. The following mapping is used to wire these functions to corresponding JAMMA controls:

PC-10 FUNCTION JAMMA FUNCTION
START P1 START
SELECT P2 START
SCREEN TOGGLE P1 BUTTON 3
RESET P1 BUTTON 4
CHANNEL SELECT P2 BUTTON 3
CHANNEL ENTER P2 BUTTON 4

Game Compatibility

All games compatible with the Nintendo PlayChoice-10 boards can be used with this adapter. All PlayChoice-10 carts are compatible with both the Single and the Dual Screen boards

Pinout

Main Edge Connector:

SOLDER SIDE PARTS SIDE
GND GND
NC GND
SAUD MAUD
NC START
NC RESET
NC NC
NC SELECT
NC P2DOWN
NC P2UP
NC P2LEFT
NC P2RIGHT
P2B1 P2B2
NC COIN1
NC NC
NC NC
NC COUNT1
+24V SVC
NC NC
NC NC
+5V +5V
+5V +5V
GND GND
GND GND
SVSYNC MVSYNC
SVBLUE SVGND
SVRED SVGREEN
MVBLUE MVGND
MVRED MVGREEN

20 Pin IDC Connector:

P1RIGHT P1LEFT
P1DOWN P1UP
GND NC
P1B1 P1B2
GND NC
CH SELECT CH ENTER
GND GND
NC GND
GUN TRIGGER (NC) GUN HIT (NC)
+5V +5V

Dimensions

Board Size: 50mm x 210mm
Weight: 120g
