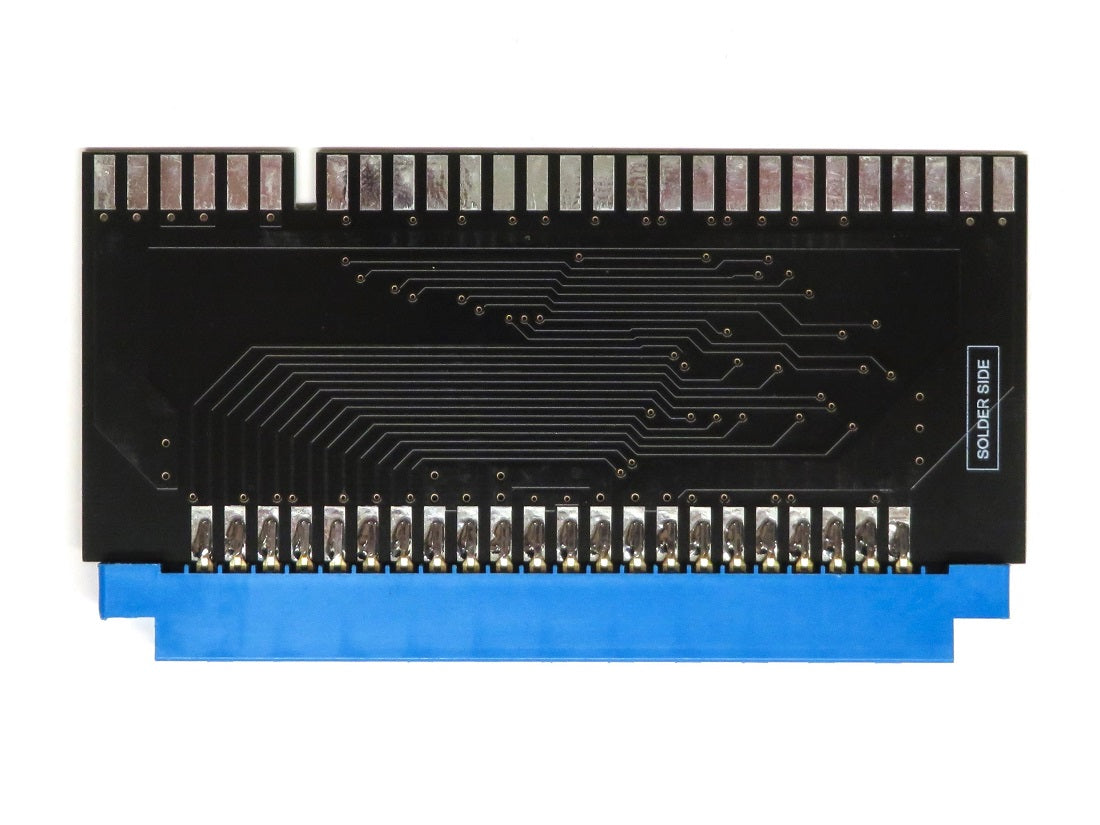

Nichibutsu Type B to JAMMA Adapter
Couldn't load pickup availability
Allows you to use your Nichibutsu pre-JAMMA game, in a JAMMA cabinet or a supergun device.
Nichibutsu, aka Nihon Bussan Co., was a small video game developer. Just like many arcade game manufacturers from this period, their games shared similar hardware and pinout configuration.
There are two styles of pinouts that Nichibutsu used. One for their earlier games that used an edge connector and a separate 5 pin video connector, and another for games released later on that used only a single edge connector. This adapter works with the later games that do not require the addition video harness.
Game Compatibility
Game Compatibility
This is the list of compatible games that should be compatible with this adapter:
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| P1UP | P1DOWN |
| P1LEFT | P1RIGHT |
| P1B1 | P1B2 |
| P2UP | P2DOWN |
| P2LEFT | P2RIGHT |
| P2B1 | P2B2 |
| COIN1 | COIN2 |
| GND | GND |
| GND | GND |
| +5V | +5V |
| +12V | NC |
| NC | +12V |
| +5V | +5V |
| GND | GND |
| GND | GND |
| P1START | P2START |
| TEST | SVC |
| COUNT1 | COUNT2 |
| SPK+ | SPK- |
| NC | VRED |
| VGREEN | VBLUE |
| VGND | VSYNC |
Dimensions
Dimensions
Shipping & Returns
Shipping & Returns
We ship twice a week, usually Tuesdays and Thursdays. Some items are built to order and require a 5 business days turnaround. Thank you for your understanding and your patience.
There is 30 days return policy on undamaged items. Buyer pays for return shipping. See Return policy page for more information.
