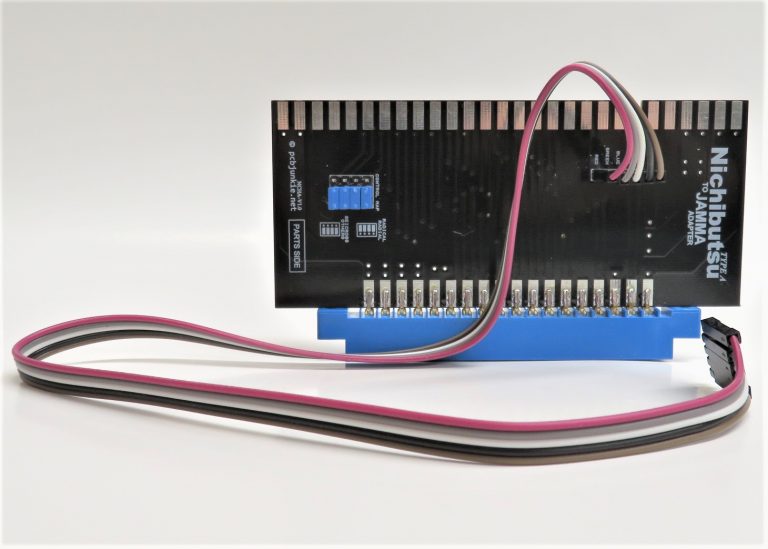

Nichibutsu Type A to JAMMA Adapter
Couldn't load pickup availability
Allows you to use your Nichibutsu pre-JAMMA game, in a JAMMA cabinet or a supergun device.
Nichibutsu, aka Nihon Bussan Co., was a small video game developer. Just like many arcade game manufacturers from this period, their games shared similar hardware and pinout configuration.
There are two styles of pinouts that Nichibutsu used. One for their earlier games that used an edge connector and a separate 5 pin video connector, and another for games released later on that used only a single edge connector. This adapter works with the earlier games that require the addition video harness.
Game Compatibility
Game Compatibility
This is the list of compatible games that should be compatible with this adapter:
Note: Jumper settings allows to change control mapping to support the common control schemes.
The adapter has been tested with many genuine Nichibutsu boards for compatibility. As always, check the pinout to ensure your game is compatible with this adapter.
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| TST/P2B2 | NC/P2B1 |
| +5V | +5V |
| P1UP | P1DOWN |
| NC | NC |
| P1LEFT | P1RIGHT |
| COIN1 | COIN2 |
| P1START | P2START |
| P2UP | P2DOWN |
| P2LEFT | P2RIGHT |
| SVC | P1B2(R) |
| P1B1(SR) | P2B1(S) |
| NC | SPK+ |
| 6.3VAC(+5V) | +12V |
| +5V | +5V |
| +5V | +5V |
| GND | GND |
| GND | GND |
Dimensions
Dimensions
