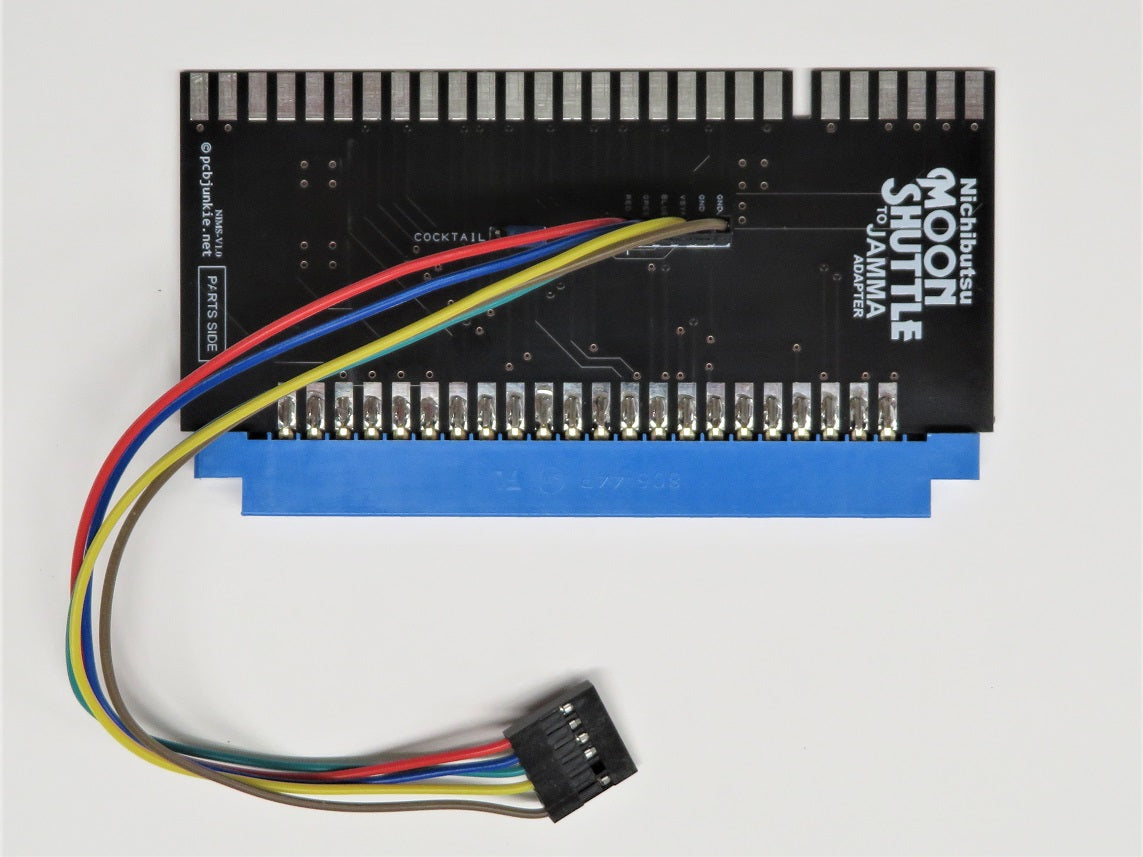

Nichibutsu Moon Shuttle to JAMMA Adapter
Couldn't load pickup availability
Allows you to use your Nichibutsu Moon Shuttle arcade board in a JAMMA cabinet or a super gun device.
Moon Shuttle is a horizontal shoot'em up arcade game that was released by Nichibutsu in 1981. It was licensed to Taito for US manufacture and distribution. The unique features of this game are 3-directional joystick controls and the ability to extent your game by purchasing additional ships.
Moon Shuttle as well as other Nichibutsu games of that period, especially those with unusual controls, have unique pinouts. This adapter therefore, works only with this one game.
Game Compatibility
Game Compatibility
This is the list of games that you may be able to use with this adapter:
This adapter has been tested with a genuine Moon Shuttle board for compatibility.
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| COIN1 | COIN2 |
| P1UP | P1DOWN |
| P1B1 | P1RIGHT |
| NC | SVC |
| NC | NC |
| NC | NC |
| P1START | P2START |
| P2UP | P2DOWN |
| P2B1 | P2RIGHT |
| TEST | UPRIGHT |
| NC | NC |
| NC | NC |
| NC | NC |
| NC | NC |
| NC | NC |
| SPK+ | +12V |
| +5V | +5V |
| +5V | +5V |
| GND | GND |
| GND | GND |
| NC | NC |
| NC | NC |
Pinout is ordered right to left when looking at the parts side of the board with the edge connector facing away.
Dimensions
Dimensions
Shipping & Returns
Shipping & Returns
We ship twice a week, usually Tuesdays and Thursdays. Some items are built to order and require a 5 business days turnaround. Thank you for your understanding and your patience.
There is 30 days return policy on undamaged items. Buyer pays for return shipping. See Return policy page for more information.
