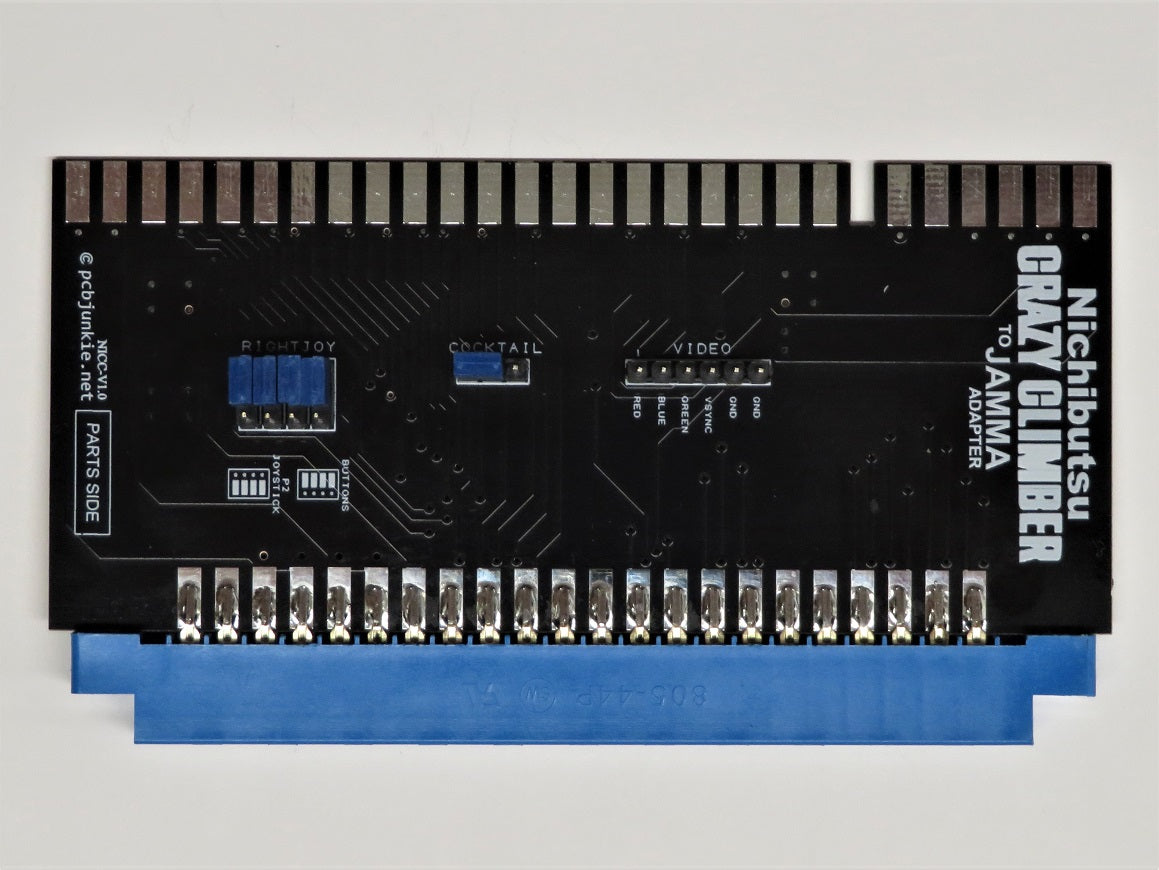

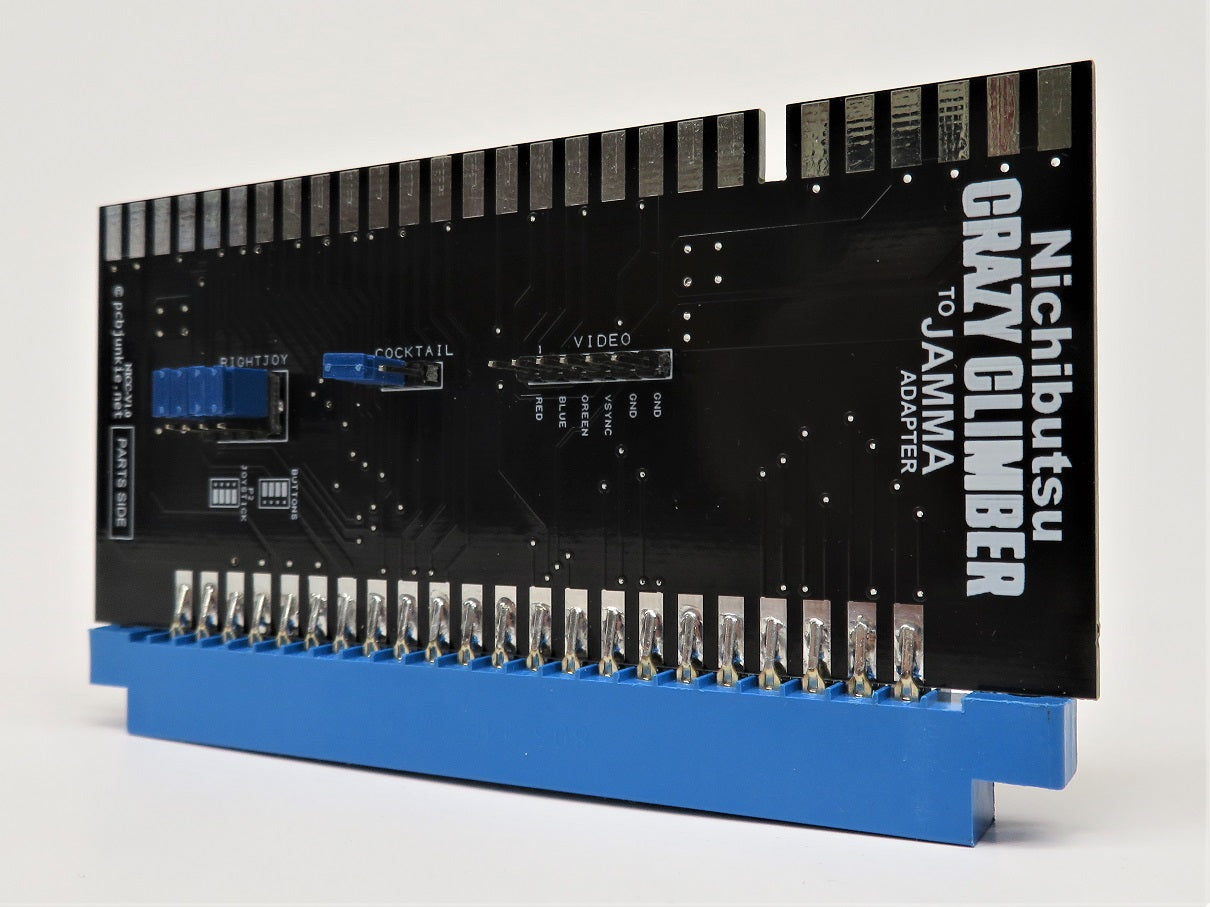

Nichibutsu Crazy Climber to JAMMA Adapter

$37.99 CAD
$37.99 CAD
Sale Sold out

Allows you to use your Nichibutsu Crazy Climber arcade board in a JAMMA cabinet or a super gun device.

Crazy Climber was released by Nichibutsu in 1980. It was licensed to Taito for US manufacture and distribution. It was Nichibutsu’s most successful game of this period and the first to introduce climbing mechanics in a video game. Another unique feature of this game is the 2 joystick controls used to move the player limbs to climb the skyscraper.

This adapter handles the unique controls in two ways. One, is to use player 1 and player 2 joysticks for single player controls, or two, the right joystick is replaced by buttons, the direction of which is dictated by the typical position of the buttons on the control panel (LEFT:1, UP:2, RIGHT:3, DOWN:4). The control scheme can be changed using the jumpers on the adapter.

Crazy Climber as well as other Nichibutsu games of that period, especially those with unusual controls, have unique pinouts. This adapter therefore, works only with this one game.

Game Compatibility

This is the list of games that you may be able to use with this adapter:

This adapter has been tested with a genuine Crazy Climber board for compatibility.

Pinout

SOLDER SIDE PARTS SIDE
P1UP P1DOWN
P1LEFT P1RIGHT
P2UP/P1B2 P2DOWN/P1B4
P2LEFT/P1B1 P2RIGHT/P1B3
NC NC
NC NC
P2UP P2DOWN
P2LEFT P2RIGHT
P2B2 P2B4
P2B1 P2B3
NC NC
NC NC
COIN1 COIN2
P1START P2START
UPRIGHT NC
SPK+ +12V
+5V +5V
+5V +5V
GND GND
GND GND
NC NC
NC NC

Pinout is ordered right to left when looking at the parts side of the board with the edge connector facing away. Pinout shows jumper selectable 2 JOYSTICK/BUTTON control mapping configurations.

Dimensions

Board Size: 50mm x 112mm
Weight: 50g
