Namco Galaga to JAMMA Adapter
Couldn't load pickup availability

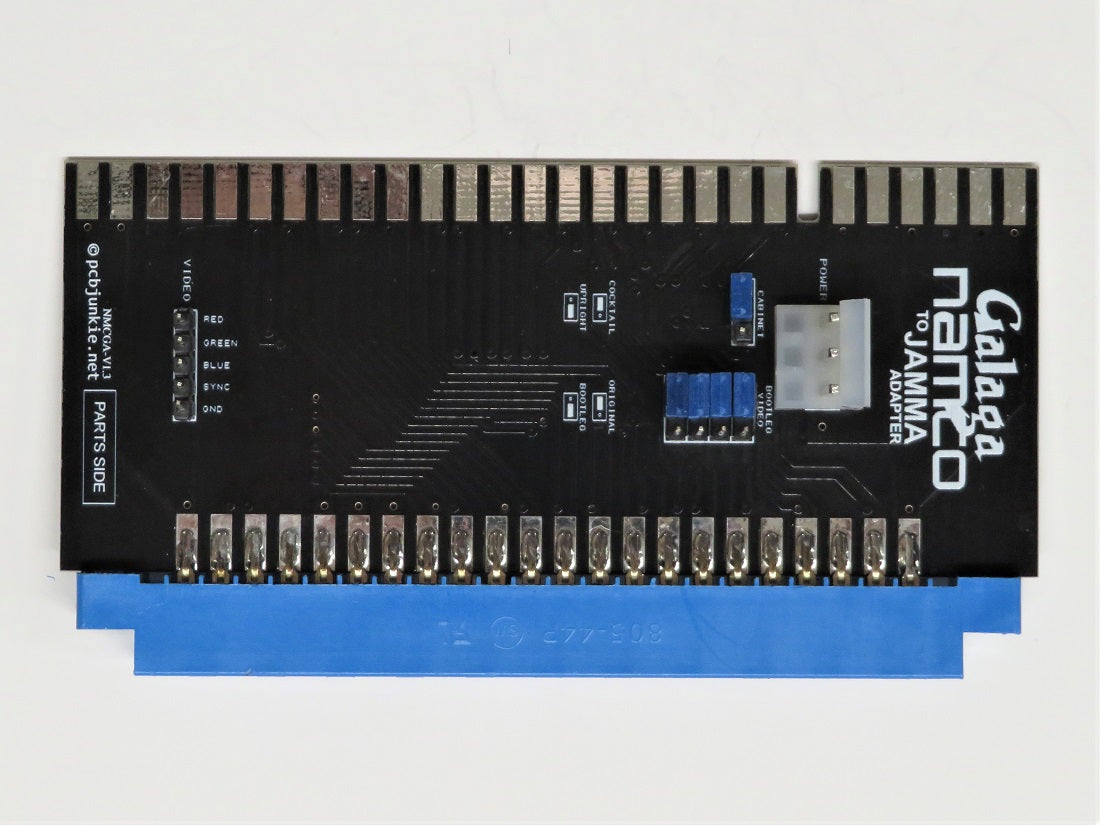

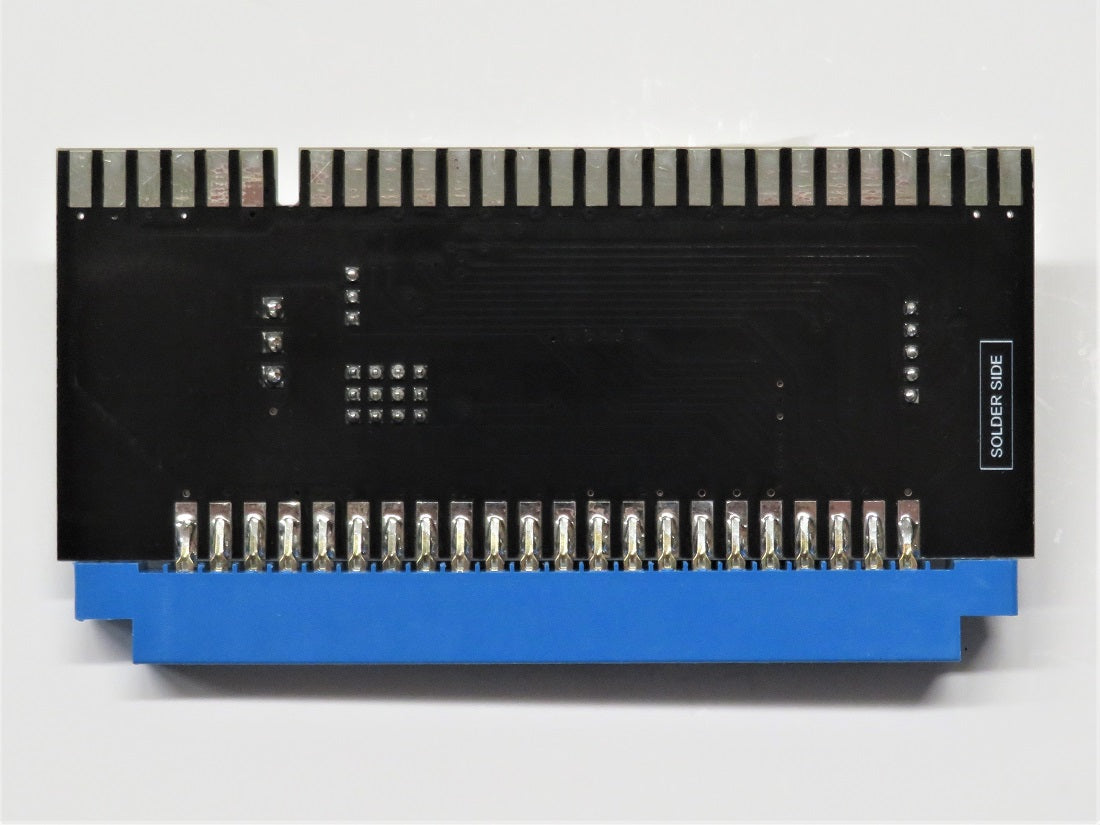

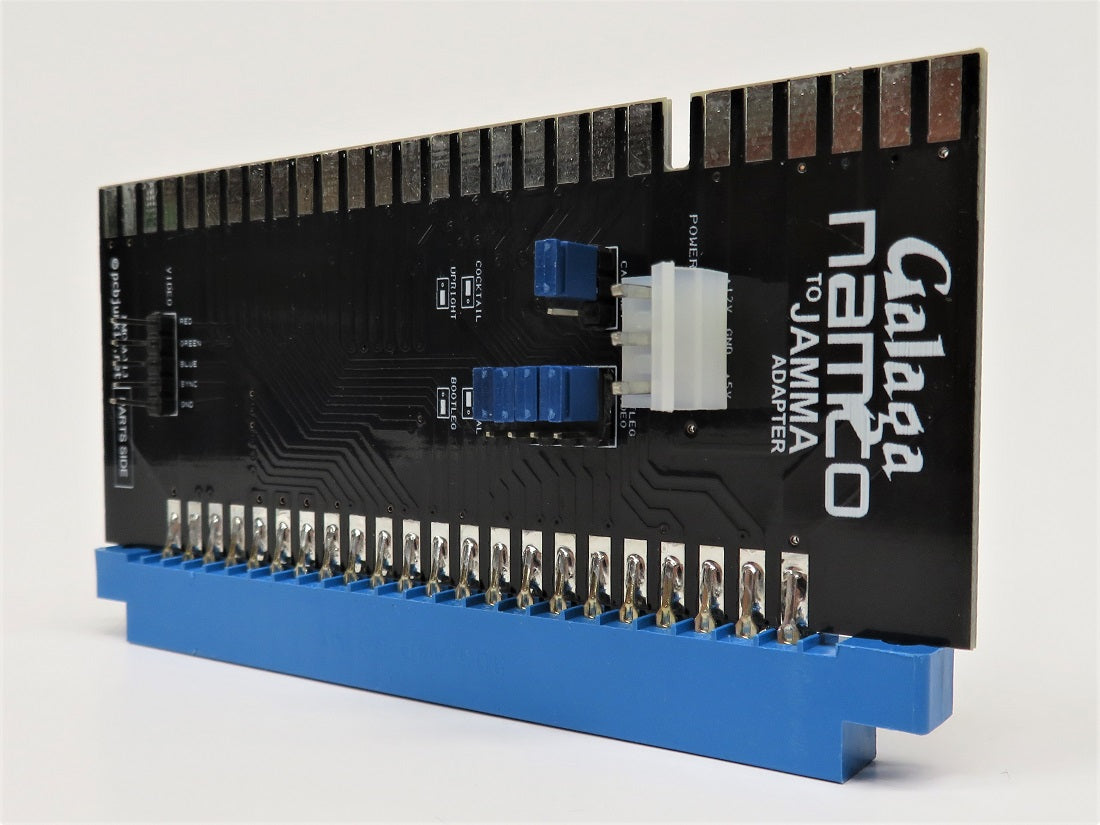

Allows you to use your Namco Galaga or a pinout compatible game, in a JAMMA cabinet or a super gun device.
In 1981, only two years into the operation of its arcade division and after the success of Pacman, Namco had another major hit with the release of Galaga.
Galaga used a brand new pinout which was quite different from the earlier Galaxian / Pacman / Rally-X pinouts, and it was designed to run on DC power.
In the years that followed, Namco used this exact pinout for a number of other releases.

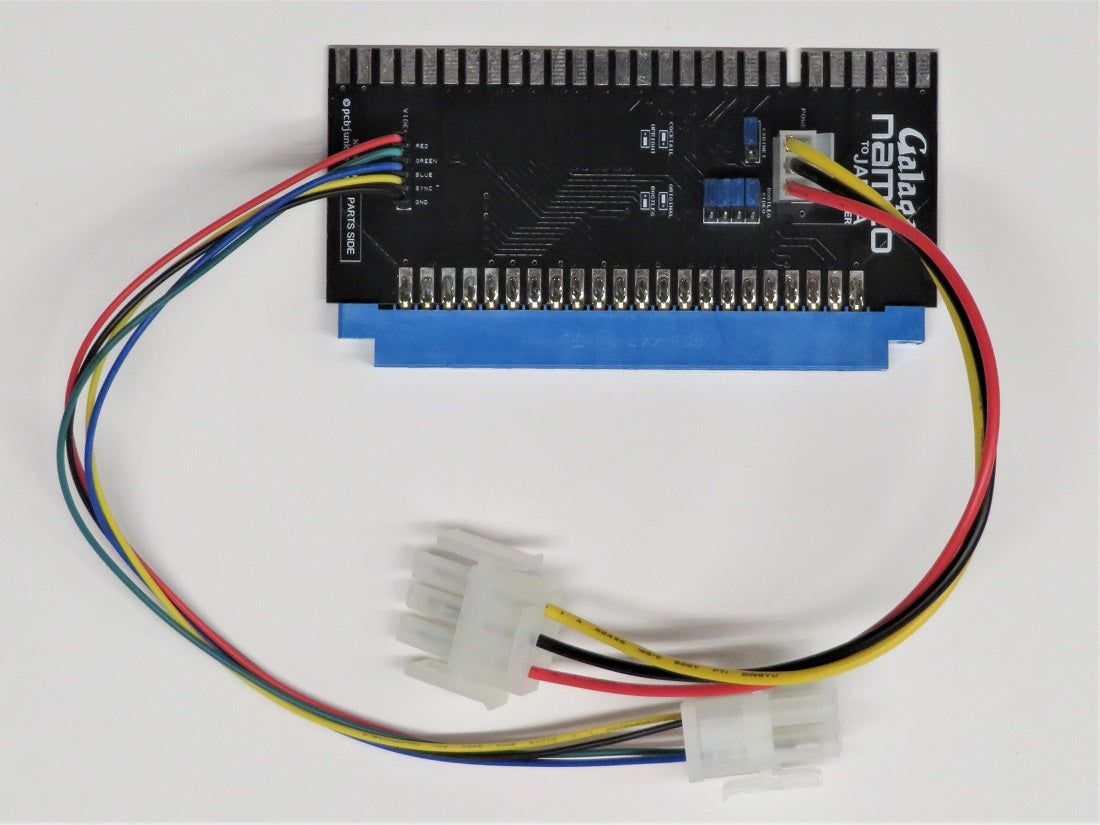

This pinout is unusual in that it has 3 connectors in total, a 44 pin edge connector for control switches and sound, one 3 ping plug for power, and another 6 pin plug for video.
Game Compatibility
Game Compatibility
This adapter is compatible with the following genuine Namco games:
- Bosconian
- Galaga
- Dig Dug
- Libble Rabble
- Mappy
- Phozon
- Galaga ’84
- Galaga 3
- Gaplus
- Pac-Land
- Super Xevious
- Alien Sector
- Baraduke
- Dig Dug II
- MetroCross
- Sky Kid
- Toy Pop
The adapter has been tested with genuine Namco boards for compatibility.
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| TABLE | COUNT2 |
| NC | NC |
| P2B2 | P1B2 |
| NC | NC |
| *VSYNC | *VRED |
| *VBLUE | *VGREEN |
| P2UP | P1UP |
| P2RIGHT | P1RIGHT |
| P2DOWN | P1DOWN |
| P2LEFT | P1LEFT |
| P2B1 | P1B1 |
| P2START | P1START |
| COIN2 | COIN1 |
| TEST | SVC |
| GND | GND |
| +5V | +5V |
| +12V | +12V |
| * P2LAMP | * P1LAMP |
| COUNT1 | LOCK1 |
| SPK- | SPK+ |
| GND | GND |
