Make Trax to JAMMA Adapter
Couldn't load pickup availability

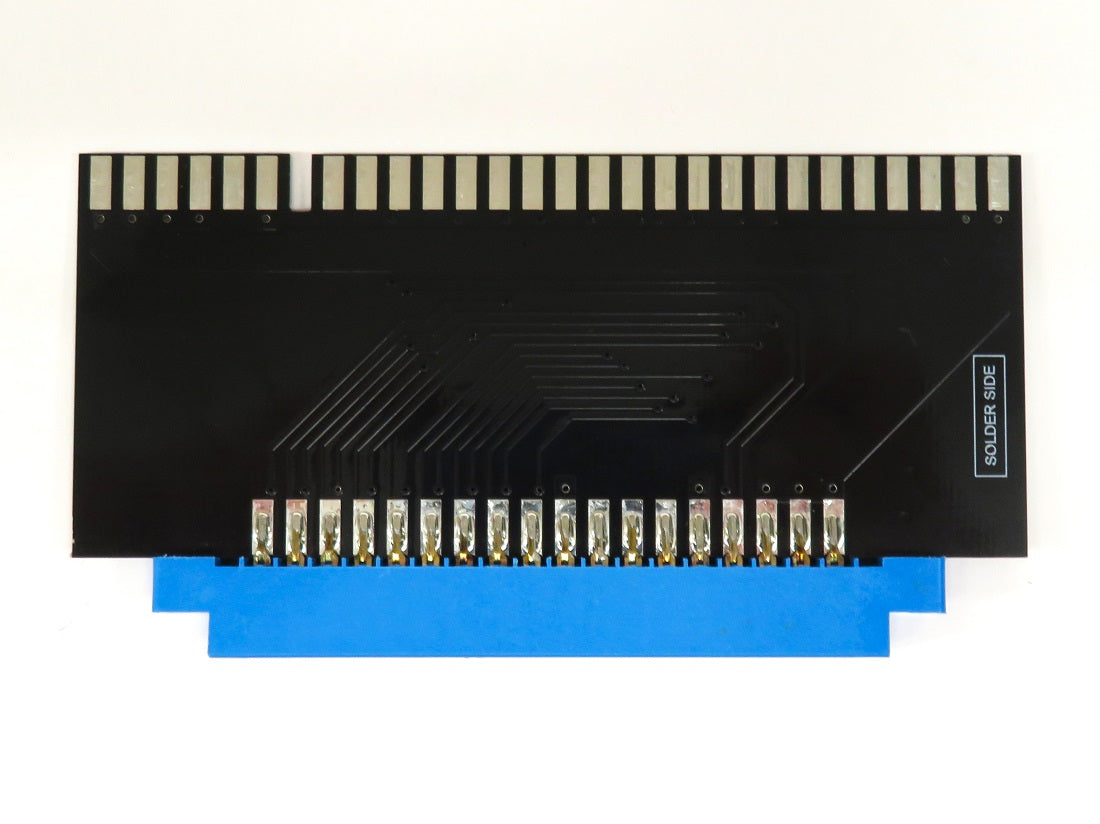

Brand new Make Trax / Crush Roller to JAMMA adapter.
Allows you to use your Make Trax, Crush Roller, or game running on this hardware, in a JAMMA cabinet or a supergun device.
Make Trax, or Crush Roller as it’s known in Japan, is a fairly popular 1981 game developed by Alpha Denshi and licensed for distribution by Kural in Japan, Williams in the US, and Exidy in Europe.
The interesting thing about Make Trax is that it is very similar to Pacman hardware. A number of romhacks were created for this hardware as a result, the most common being a pretty faithful version of Ms. Pacman.
This game uses a pinout that is a variant of the Falcon pinout class. For other games that are part of the Falcon conversion class, please see the listing for Falcon Type A and B and Phoenix adapters.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
The adapter has been tested with a genuine Make Trax pcb.
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| NC | VSYNC |
| P2LEFT | VGREEN |
| P2RIGHT | VBLUE |
| VRED | P1LEFT |
| NC | P1RIGHT |
| COIN1 | P1START |
| P1DOWN | P2START |
| P1UP | P2UP |
| NC | P2DOWN |
| +5V | +5V |
| NC | NC |
| NC | NC |
| NC | VSYNC+ |
| +12V | +12V |
| SPK- | SPK+ |
| GND | GND |
| GND | GND |
| GND | GND |
Dimensions
Dimensions
