Konami to JAMMA Adapter
Couldn't load pickup availability

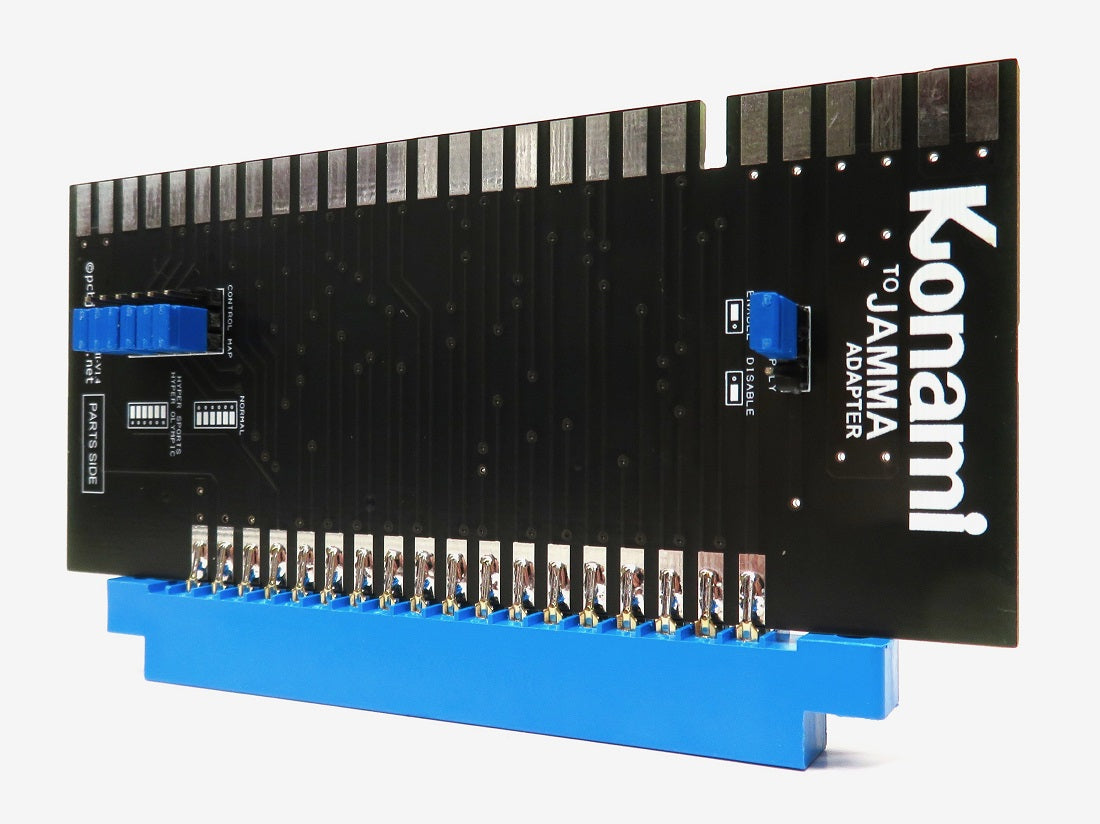

Allows you to use your Konami pre-JAMMA game, in a JAMMA cabinet or a supergun device.
There are many games that share this pinout. Konami produced many successful games during the 1980s, and most of these used the same pinout with some small variations.
One of these variations includes the requirement for a -5V supply. Some Konami games will not run properly with the -5V rail present, others require it to function properly. Other games change the controls by swapping joysticks for a set of buttons as is the case with Konami sports games such as Hyper Olympic and Hyper Sports.
For these games, the adapter includes a set of jumpers to allow the -5V rail to be present at the PCB connector, and allows button remapping so that games such as Hyper Olympic and Hyper Sports can be playable in a 2 player JAMMA cabinet. Games such as Gyruss that have stereo sound also work correctly with this adapter.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
- End The
- 600
- Amidar
- Armored Car
- Billiards The
- Frog
- Frogger
- Jungler
- Lil’ Hustler
- Moon War
- Scramble
- Space Fortress
- Strategy X
- Super Cobra
- AvailableTactician
- Turtles
- Video Hustler (Tago)
- Amigo
- Anteater
- Dark Planet
- Guttang Gottong
- Jackler
- Loco-Motion
- Macho Mouse
- Mighty Monkey
- Pootan
- Pooyan
- Pop Flamer
- Rescue
- Space Pilot
- Tazz Mania
- Time Pilot
- Tutankham
- Eggs
- Gyruss
- Hyper Olympic
- Juno First
- Lost Tomb
- Mega Zone
- Roc’n Rope
- Track & Field
- Venus
- Antarctic Adventure
- Circus Charlie
- Comic Bakery
- Hyper Olympic ’84
- Hyper Sports
- Mikie, High School Graffiti
- Pandora’s Palace
- Road Fighter
- Shinnyuushain Tooru-kun
- Sky Jaguar
- Super Basketball
- Time Pilot ’84
- Troopy
- Finalizer – Super Transformation
- Galactic Warriors
- Green Beret
- Jail Break
- Kicker
- Knightmare
- Konami’s Ping-Pong
- Nemesis
- Rush’n Attack
- Shao-lin’s Road
- Twin Bee
- Yie Ar Kung-Fu
- Darwin 4078
- Far West
- Iron Horse
- Mr. Goemon
- Devil World
- Hustler, The
- Majuu No Oukoku
- Mexico 86
- Rack ‘Em Up
- Hard Puncher
- Hexion
- Quiz Gakumon No Susume
- Trukker
It has been tested with many, many genuine and bootleg Konami boards for compatibility.
