Karate Champ to JAMMA Adapter

$24.99 CAD
$24.99 CAD
Sale Sold out

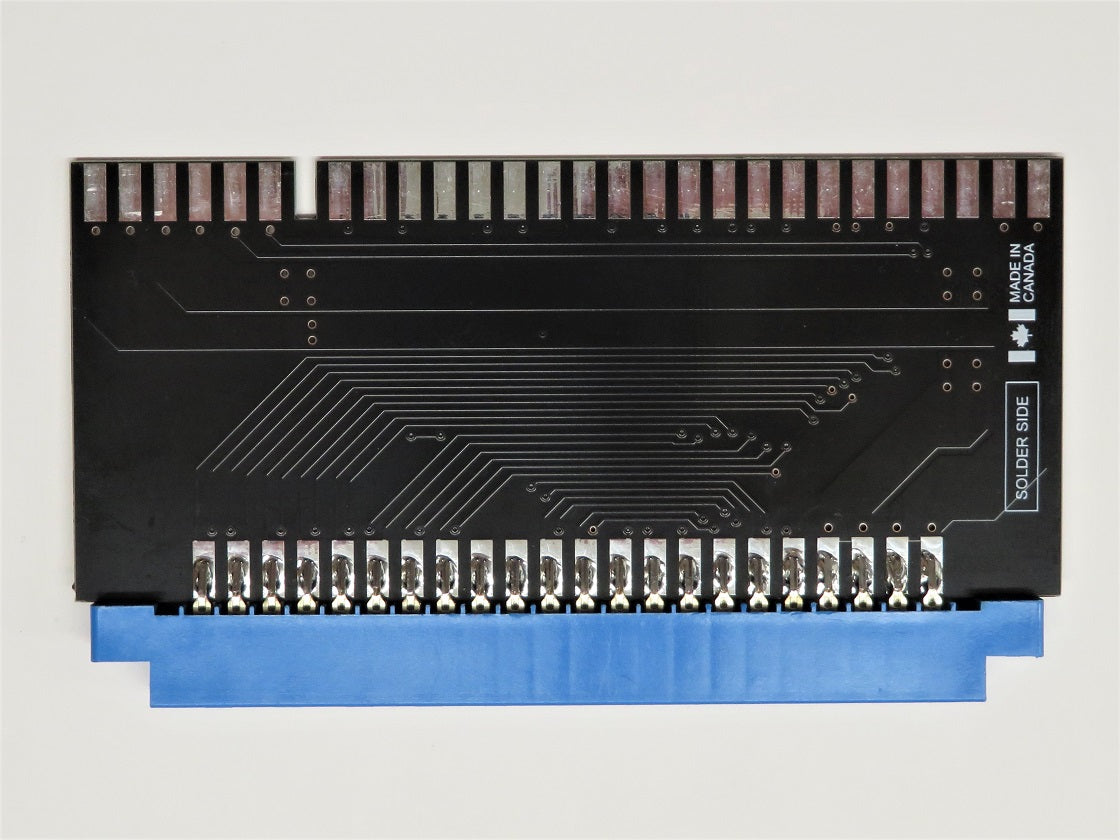

Allows you to use your Data East Karate Champ game board, in a JAMMA cabinet or a super gun device.

Karate Champ was a smash hit for Data East in the mid 80s. In the US, it was the highest-grossing arcade game of 1985 and one of the best selling home computer games of the second half of the decade. The game itself was developed by Technos. Karate Champ was highly influential, giving rise to other Technos developed games like Renegade and Double Dragon. The Player Vs Player variant of the Karate Champ, established the 1 on 1 fighter genre, and influenced the creators of many fighting games of the late 80s and much of the 90s.

While Karate Champ can be used with the Data East conversion class adapter, the game's 2 joystick controls and pin assignment are quite different from that pinout. This adapter attempts to make Karate Champ as playable as possible on a 4 button or a 6 button Street Fighter II control panel.

Game Compatibility

This is the list of games that you may be able to use with this adapter:

  • Karate Champ
  • Karate Champ – Player Vs Player *
  • Karate Dou *
  • Taisen Karate Dou

    •  The adapter has been tested with genuine Data East boards and bootleg Karate Champ for compatibility.



    Pinout

    SOLDER SIDE PARTS SIDE
    P2BDOWN P1BDOWN
    P2BUP P1BUP
    P2BLEFT P1BLEFT
    P2BRIGHT P1BRIGHT
    P2DOWN P1DOWN
    P2UP P1UP
    P2LEFT P1LEFT
    P2RIGHT P1RIGHT
    NC NC
    NC NC
    P2START P1START
    COIN2 COIN1
    COUNT2 COUNT1
    VGREEN VBLUE
    VRED VSYNC
    NC NC
    SPK- SPK+
    -5V +12V
    +5V +5V
    +5V +5V
    GND GND
    GND GND

    Pinout is ordered right to left when looking at the parts side of the board with the edge connector facing away.

    Dimensions

    Board Size: 50mm x 112mm
    Weight: 50g

    Shipping & Returns

    We ship twice a week, usually Tuesdays and Thursdays. Some items are built to order and require a 5 business days turnaround. Thank you for your understanding and your patience.

    There is 30 days return policy on undamaged items. Buyer pays for return shipping. See Return policy page for more information.
