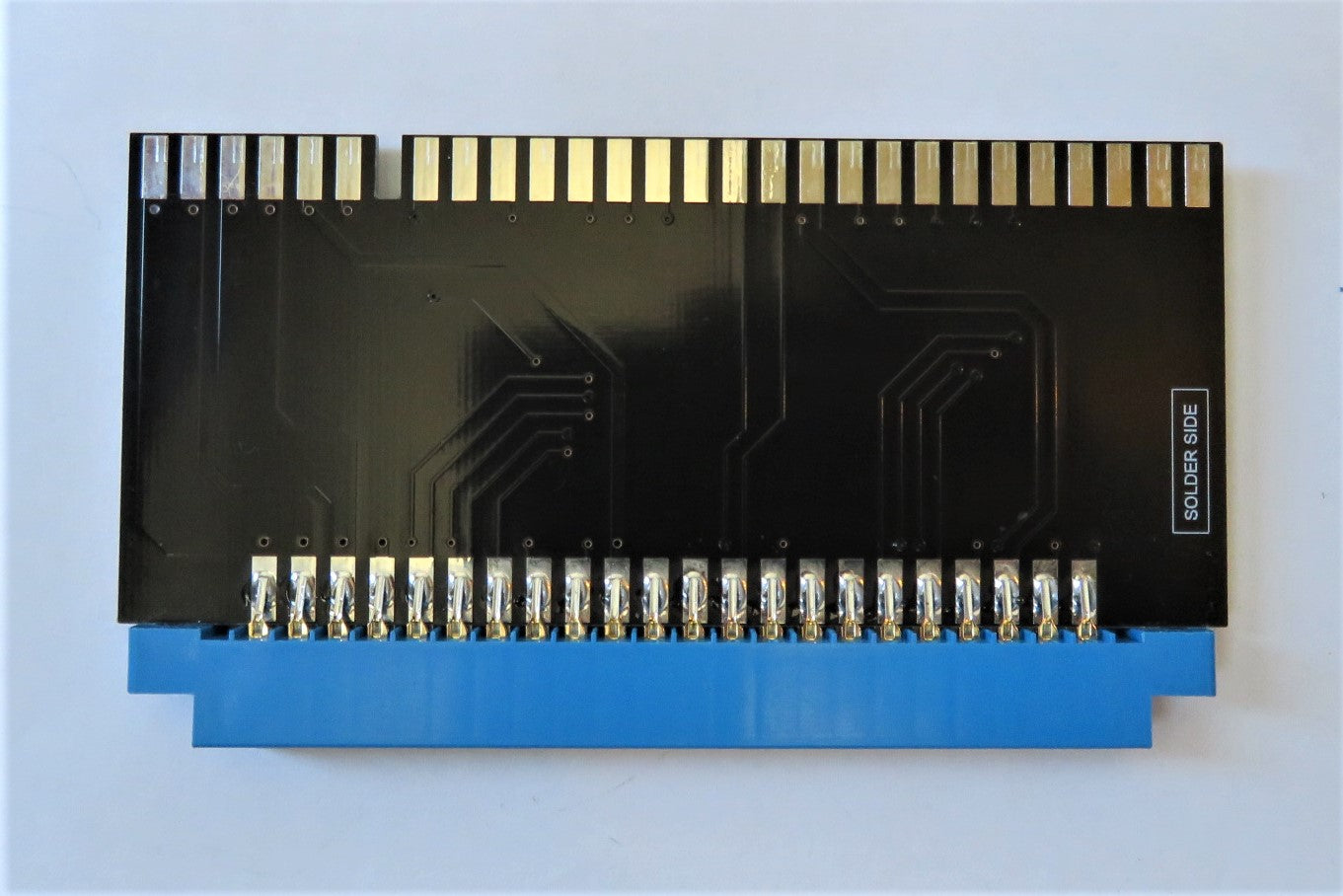

Taito / Kaneko to JAMMA Adapter
Couldn't load pickup availability
Allows you to use your Taito / Kaneko developed classic pre-JAMMA game, in a JAMMA cabinet or a supergun device.
In 1982, Kaneko began developing and manufacturing arcade games and licensed them almost exclusively to Taito. This continued until the early 1990s' at which point Kaneko began to make games under its own brand.
This adapter works with many pre-JAMMA Taito / Kaneko games.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
- Samurai Nippon-Ichi
- Lady Master of Kung Fu / Nunchackun
- Mission 660
- Alphax Z / The 26th Z
- Go Go Mr. Yamaguchi / Yuke Yuke Yamaguchi-kun
- Vs. Gong Fight / Ring Fighter
It has been tested with genuine Samurai Nippon-Ichi board for compatibility. These games are fairly uncommon. Limited testing was performed on these games. Please check compatibility with your game before connecting this adapter.
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| GND | GND |
| +5V | +5V |
| +12V | +12V |
| VBLUE | VGREEN |
| VRED | VSYNC |
| VGND | NC |
| COUNT2 | SPK+ |
| COUNT1 | SPK- |
| -5V | -5V |
| NC | NC |
| NC | SVC |
| P2START | COIN2 |
| P1START | COIN1 |
| NC | NC |
| NC | NC |
| P2B2 | P1B2 |
| P2B1 | P1B1 |
| P2DOWN | P1DOWN |
| P2UP | P1UP |
| P2LEFT | P1LEFT |
| P2RIGHT | P1RIGHT |
Dimensions
Dimensions
