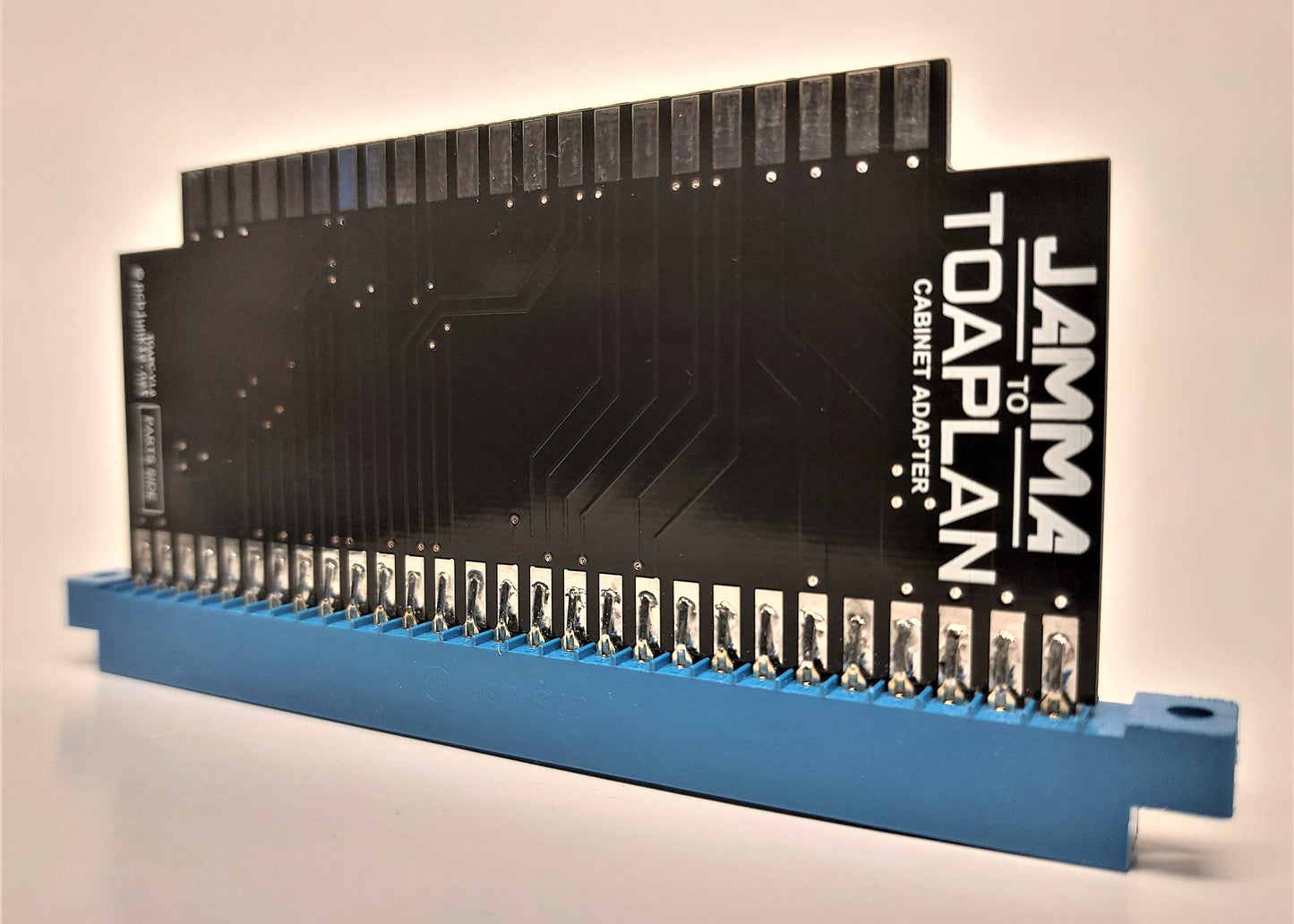

JAMMA to Toaplan Cabinet Adapter

$23.99 CAD
$23.99 CAD
Sale Sold out

Allows you to use your JAMMA game in a Toaplan cabinet, or a cabinet wired according to the Toaplan conversion class. Games with up to two buttons are supported.

Cabinet Compatibility

These games should be compatible with this adapter:

Voltages

This adapter does not connect the -5V power rail which is not present in Toaplan cabinet wiring harnesses. Games that require -5V may not run.

Inputs and Outputs

In most circumstances this adapter will work as intended with your cabinet without any modifications. Problems may occur in a modified cabinet, or with games that require more than 2 buttons.

If the button order is wrong you may need to swap the wires going to the buttons behind the control panel.

Pinout

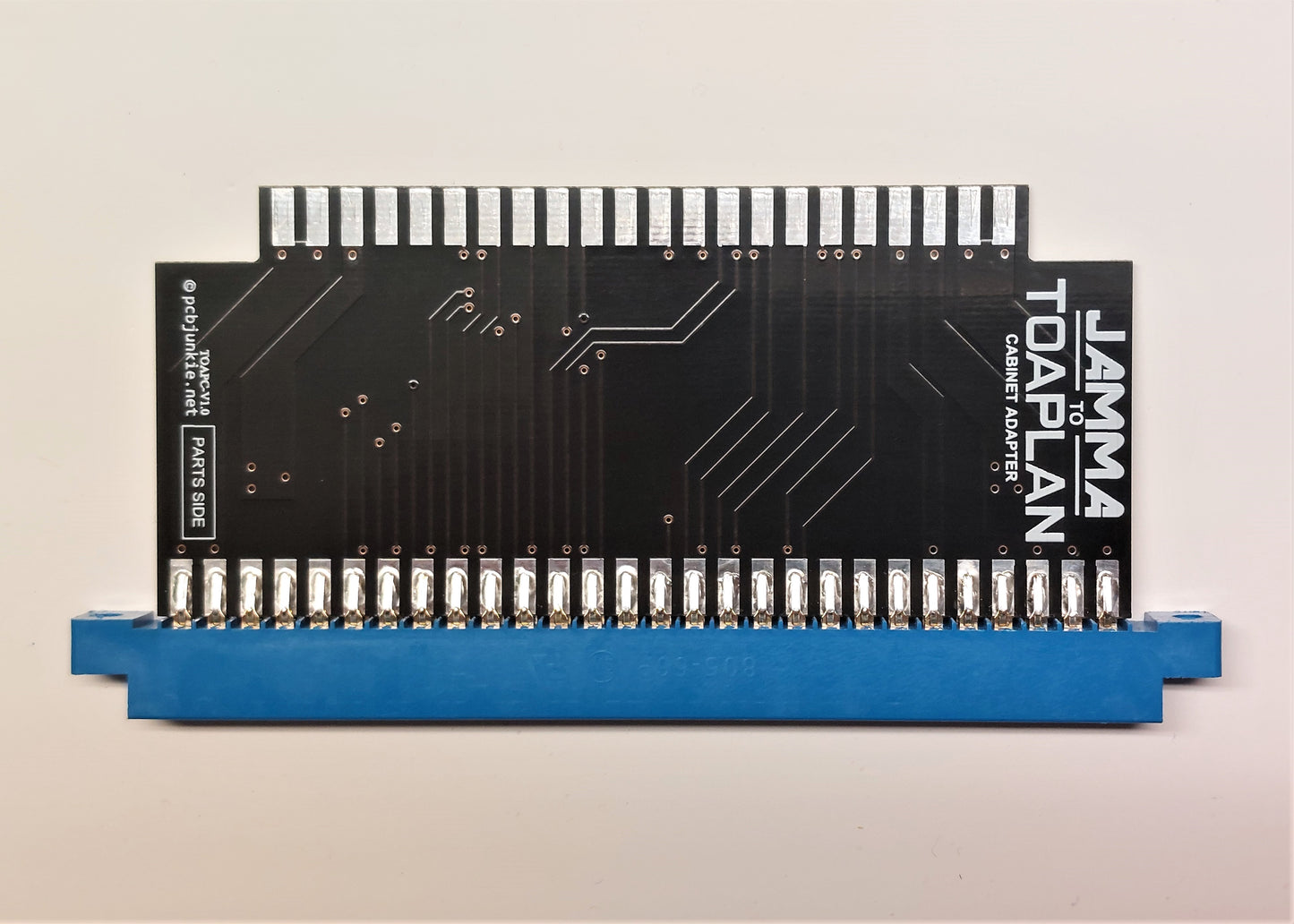

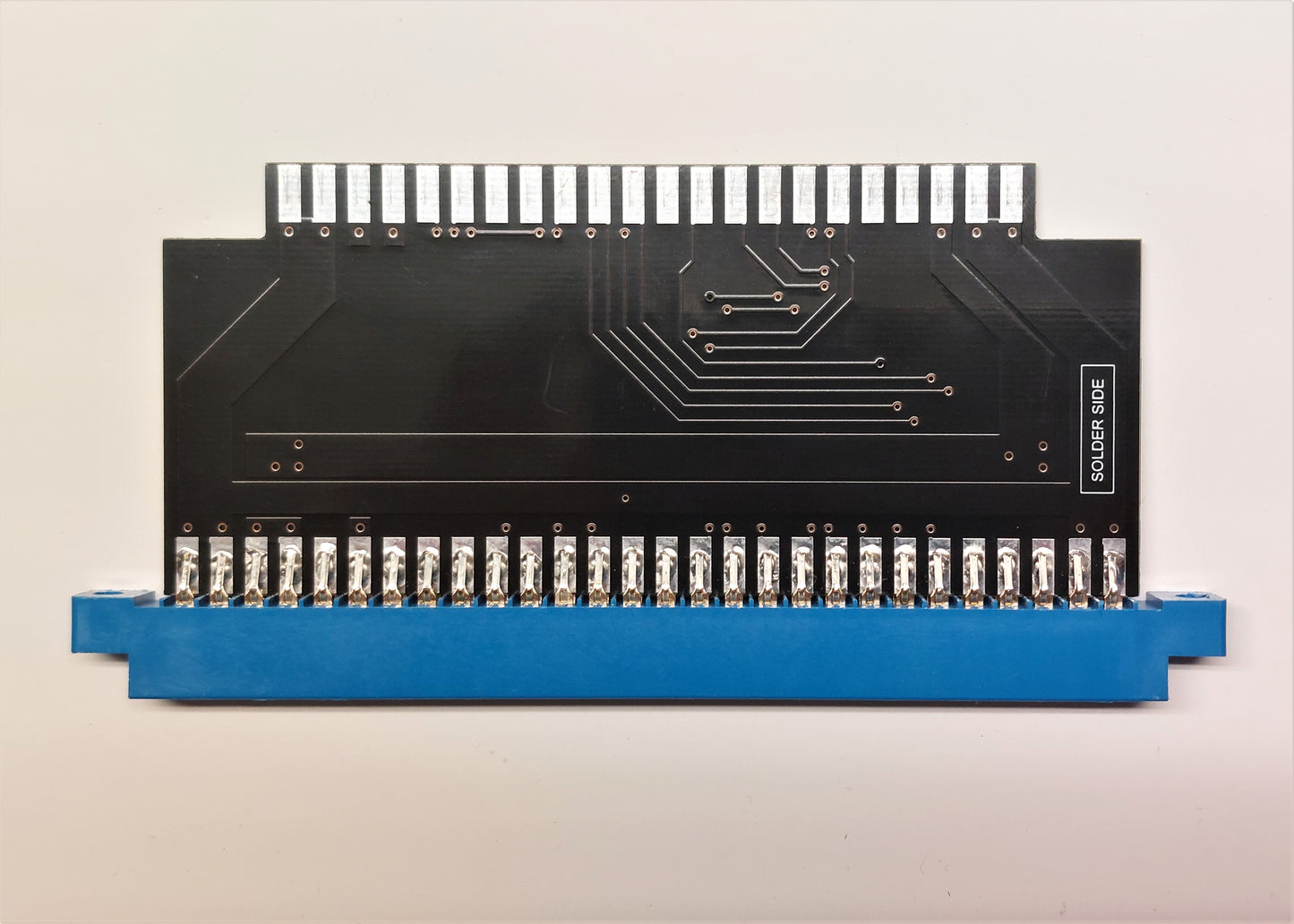

SOLDER SIDE PARTS SIDE
GND GND
GND GND
+5V +5V
+12V +12V
SPK- SPK+
VGREEN VBLUE
NC VRED
NC VSYNC
P2START P1START
P2B1 P1B1
P2B2 P1B2
NC NC
P1RIGHT P1UP
P1LEFT P1DOWN
P2RIGHT P2UP
P2LEFT P2DOWN
COIN2 COIN1
NC NC
NC NC
+5V +5V
GND GND
GND GND

Dimensions

Board Size: 50mm x 112mm
Weight: 50g
