JAMMA to Technos Cabinet Adapter

$23.99 CAD
$23.99 CAD
Sale Sold out

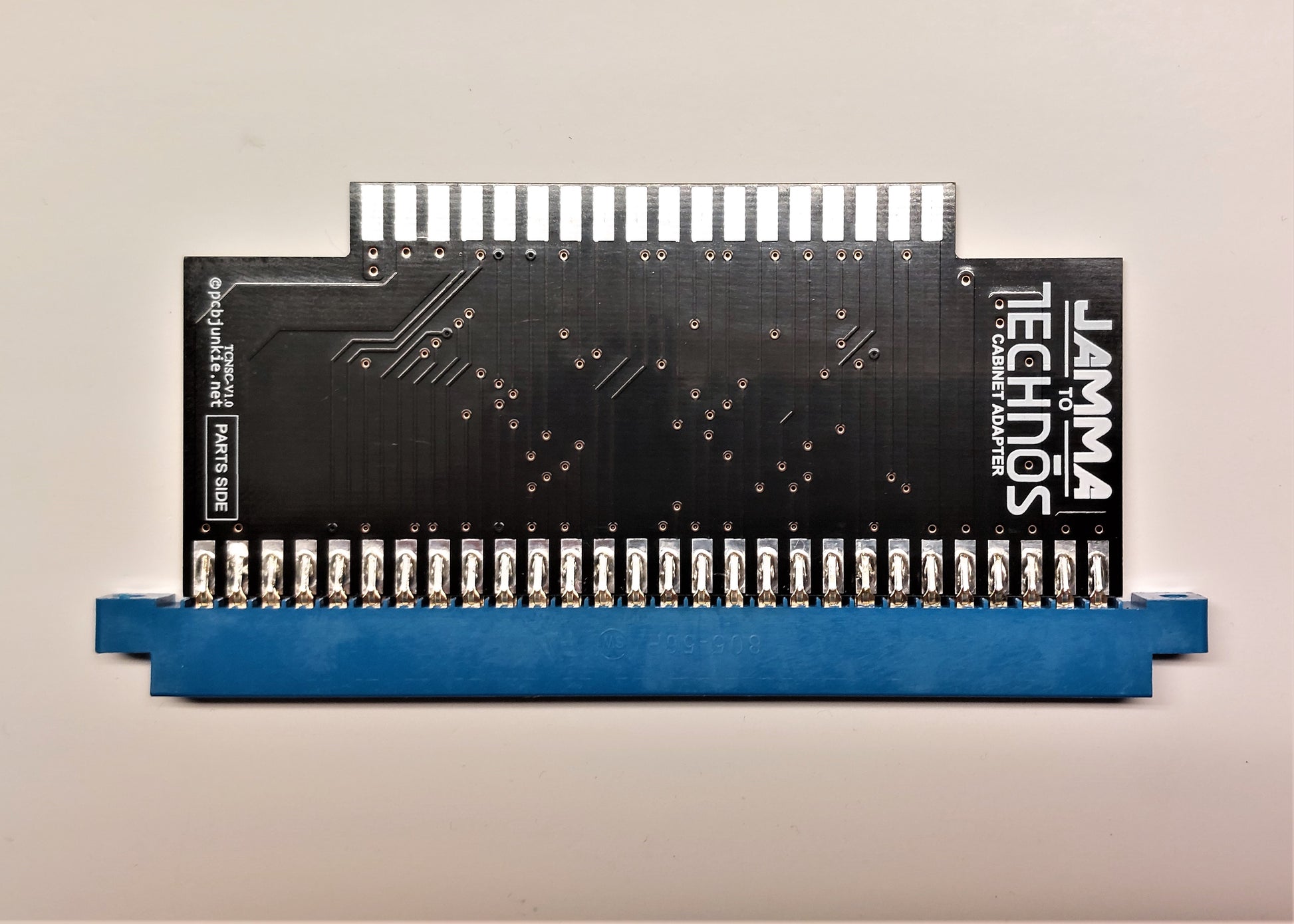

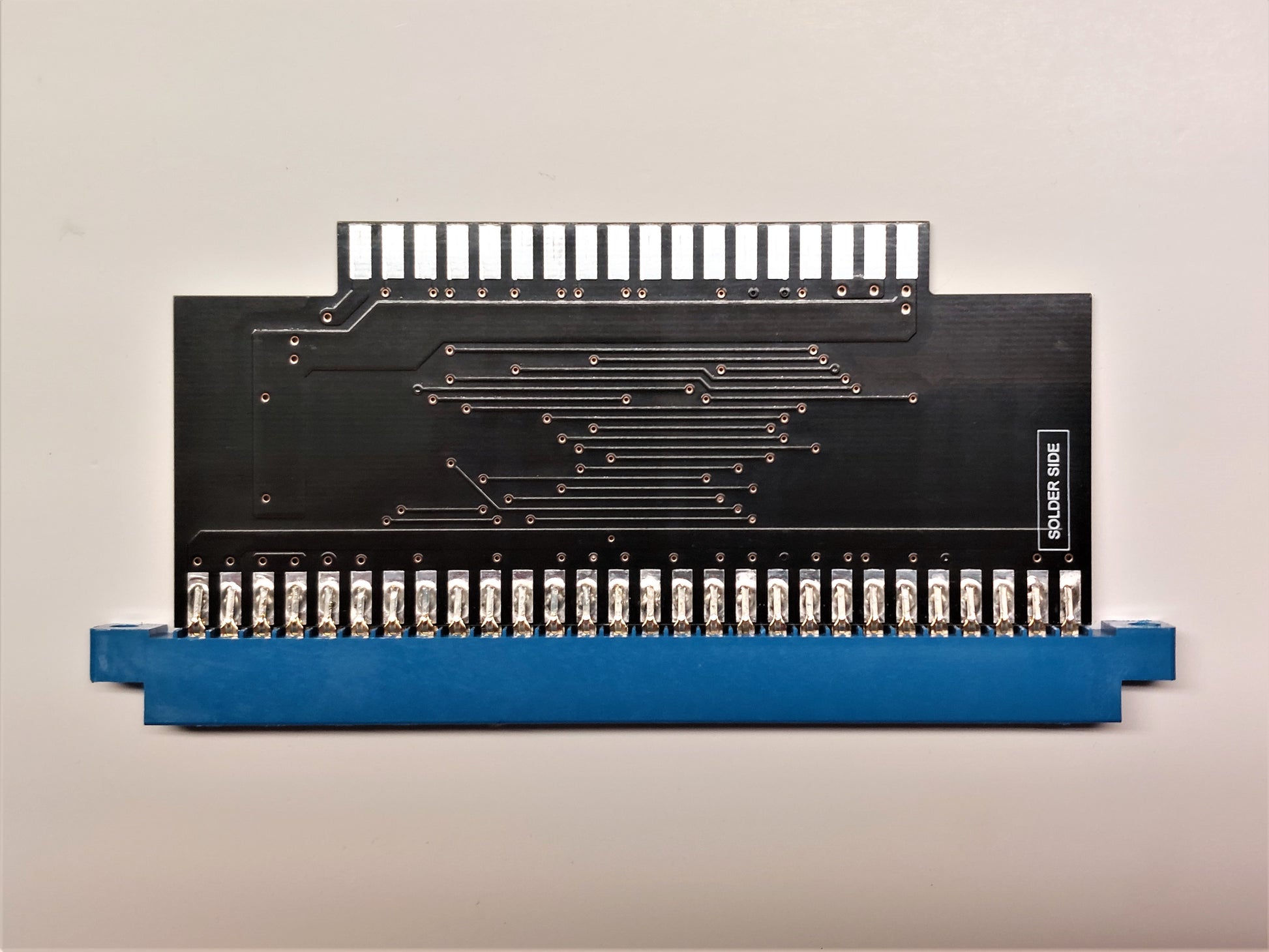

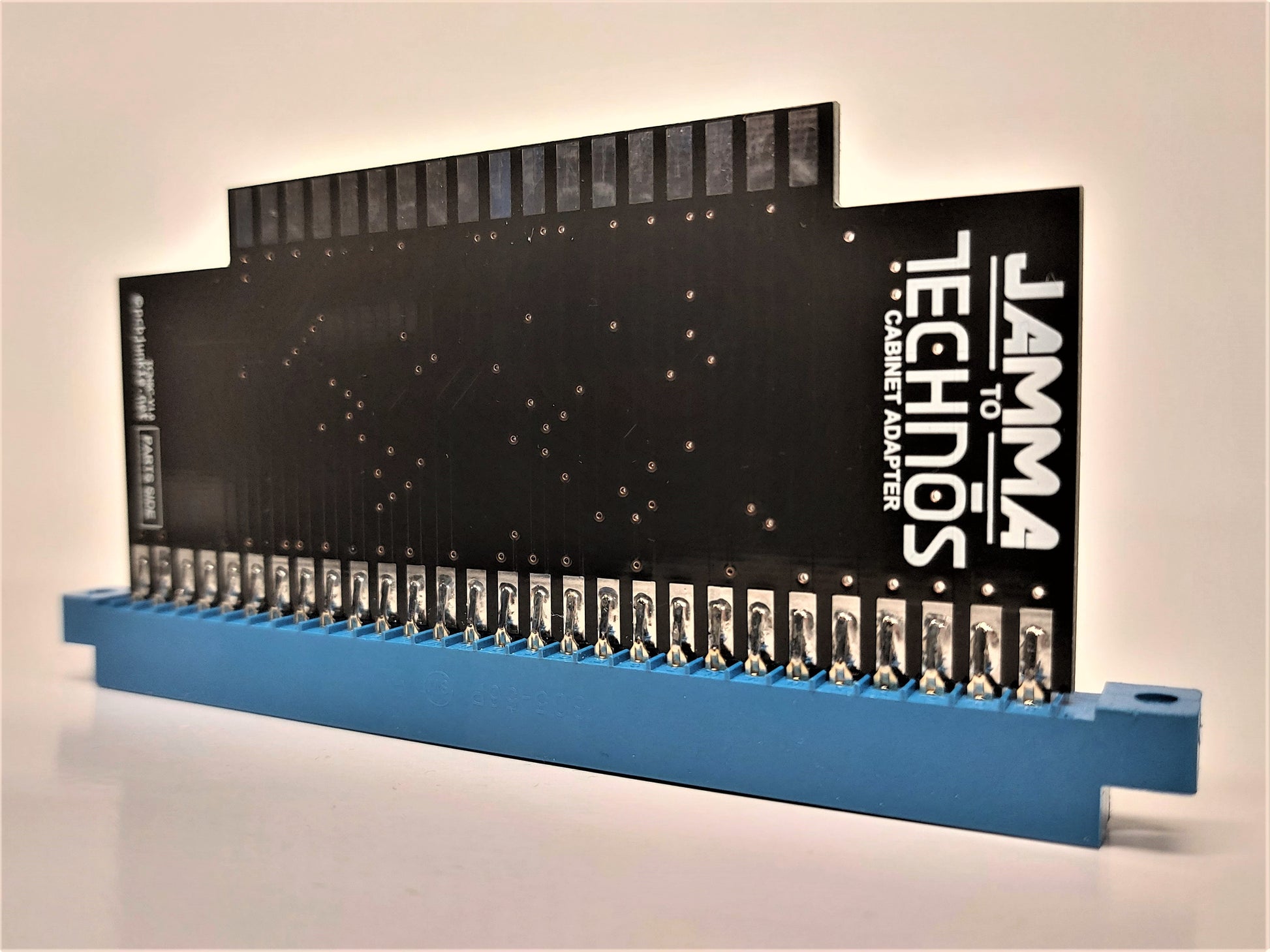

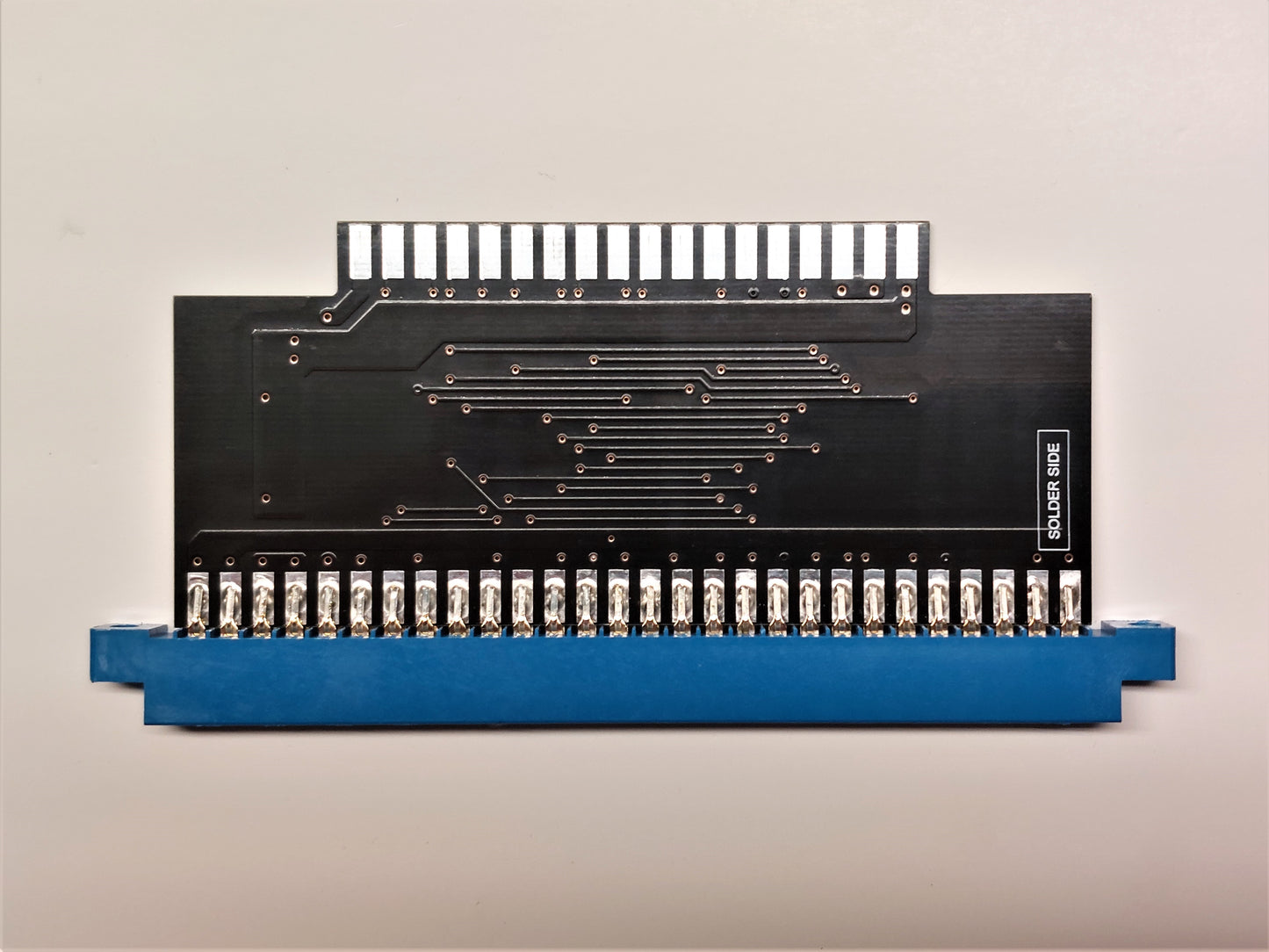

Allows you to play your JAMMA games in a Technos cabinet or a cabinet wired according to the Technos conversion class. This adapter will play JAMMA games with up to 3 buttons.

Cabinet Compatibility

This is the list of compatible games that can be used with this adapter:

Note: Scrambled Egg may use a Konami pinout.

Voltages

All voltages are present when using this adapter.

Inputs and Outputs

In most circumstances this adapter will work as intended with your cabinet without any modifications. Problems may occur in a modified cabinet, or with games that require more than 3 buttons.

If the button order is wrong you may need to swap the wires going to the buttons behind the control panel.

Pinout

SOLDER SIDE PARTS SIDE
-5V* +12V
SPK- SPK+
P1B1 P1UP
P1RIGHT P1LEFT
P1START P2START
P2B1 P2UP
P2DOWN NC
P2LEFT P2RIGHT
COUNT1 P1DOWN
COIN2 COIN1
NC COUNT2
P1B2 P2B2
VGREEN VBLUE
VRED VSYNC
P1B3 P2B3
GND GND
GND GND
+5V +5V
Note: This pinout is very similar to Konami. While the power, video and audio pins are correct, this pinout changes the location of the control pins.

Dimensions

Board Size: 50mm x 112mm
Weight: 50g
