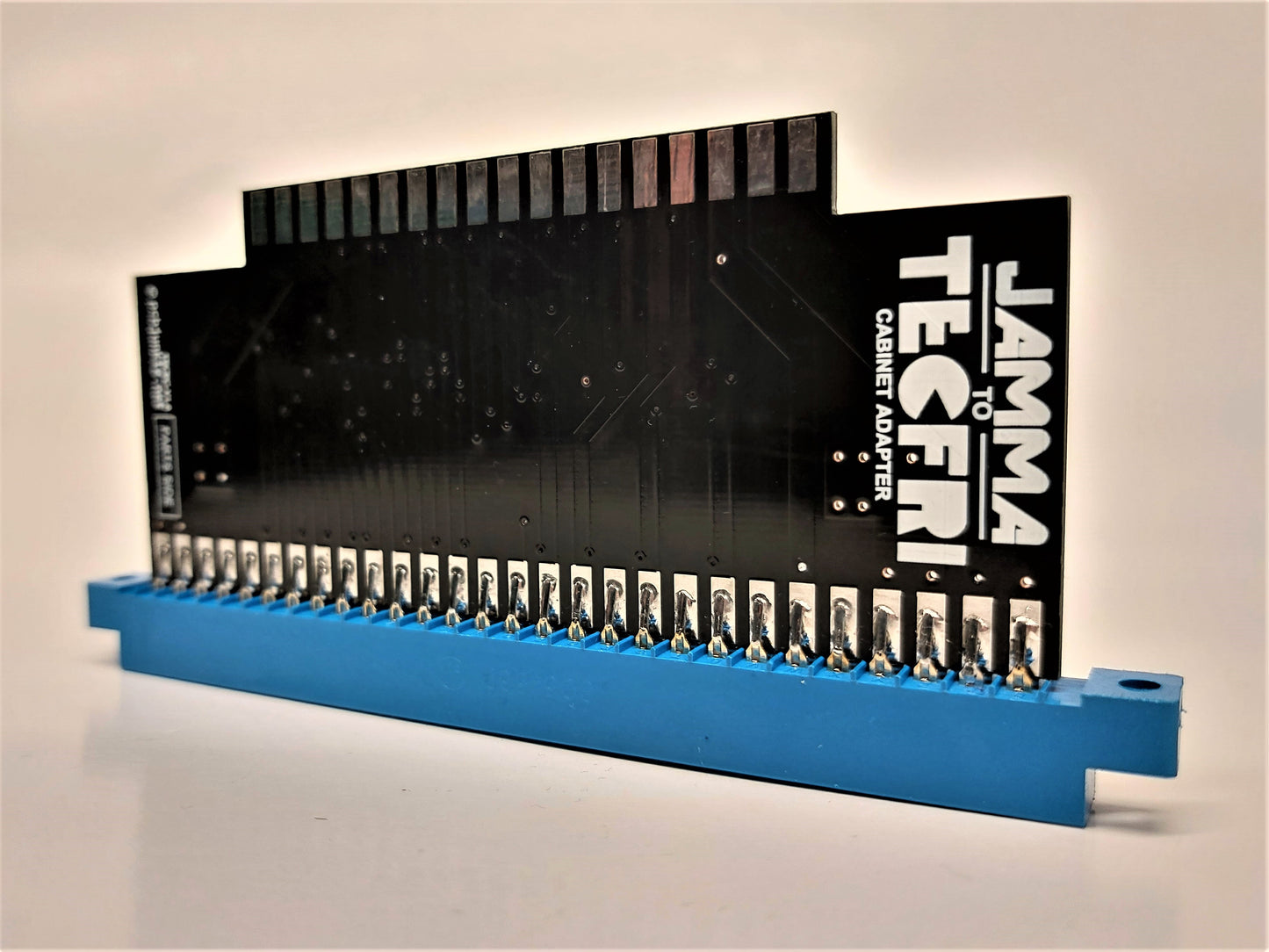

JAMMA to Tecfri Cabinet Adapter

Regular price $23.99 CAD
Regular price Sale price $23.99 CAD
Sale Sold out

Allows you to play your JAMMA games in a Tecfri cabinet or a cabinet wired according to the Tecfri conversion class. This adapter will play JAMMA games with up to 2 buttons.

Cabinet Compatibility

This is the list of compatible games that can be used with this adapter:

Voltages

This adapter does not support the -5V power rail which is not present in Tecfri cabinets’ wiring harnesses. Games that require -5V may not run.

Inputs and Outputs

In most circumstances this adapter will work as intended with your cabinet without any modifications. Problems may occur in a modified cabinet, or with games that require more than 2 buttons.

If the button order is wrong you may need to swap the wires going to the buttons behind the control panel.

Pinout

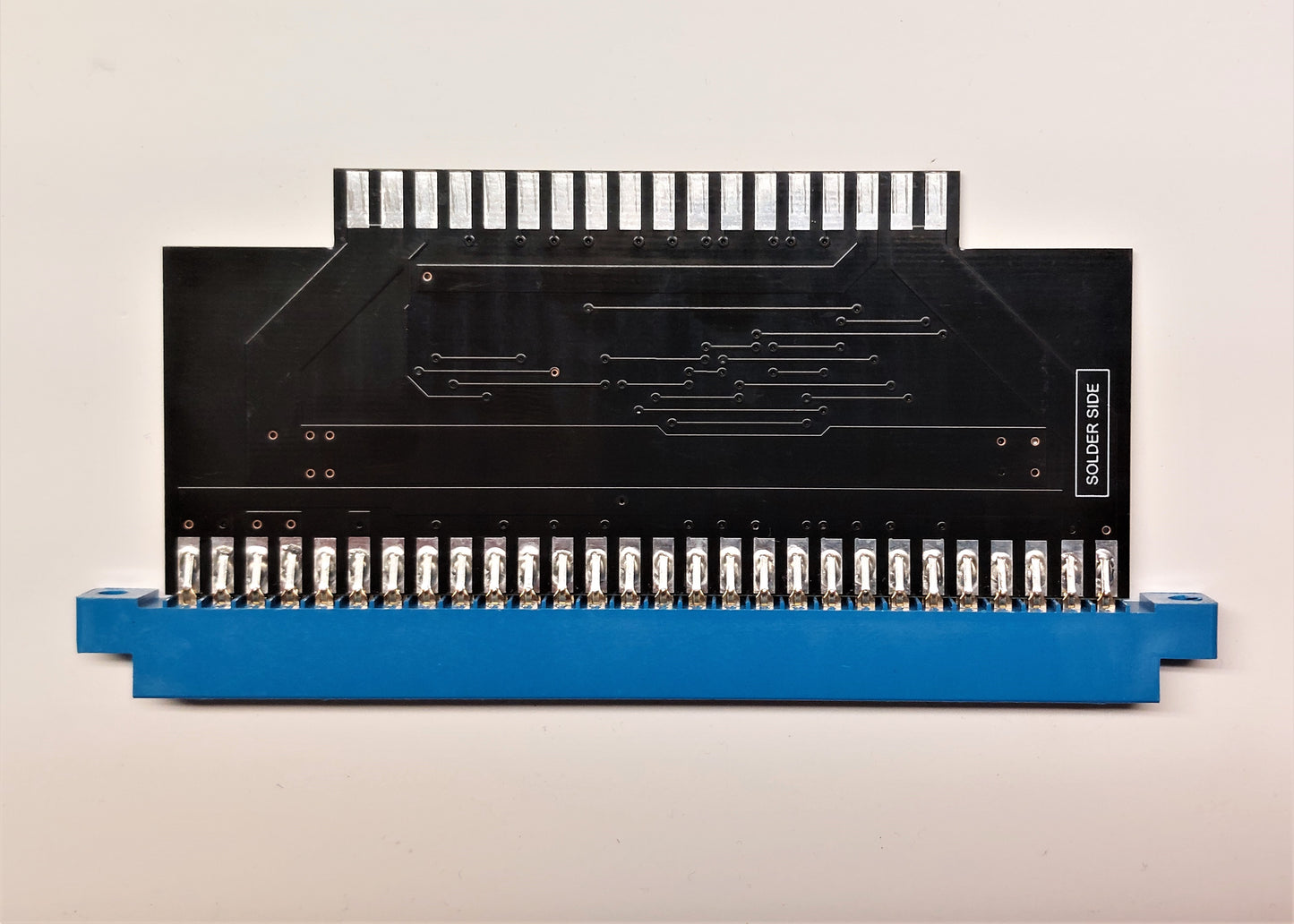

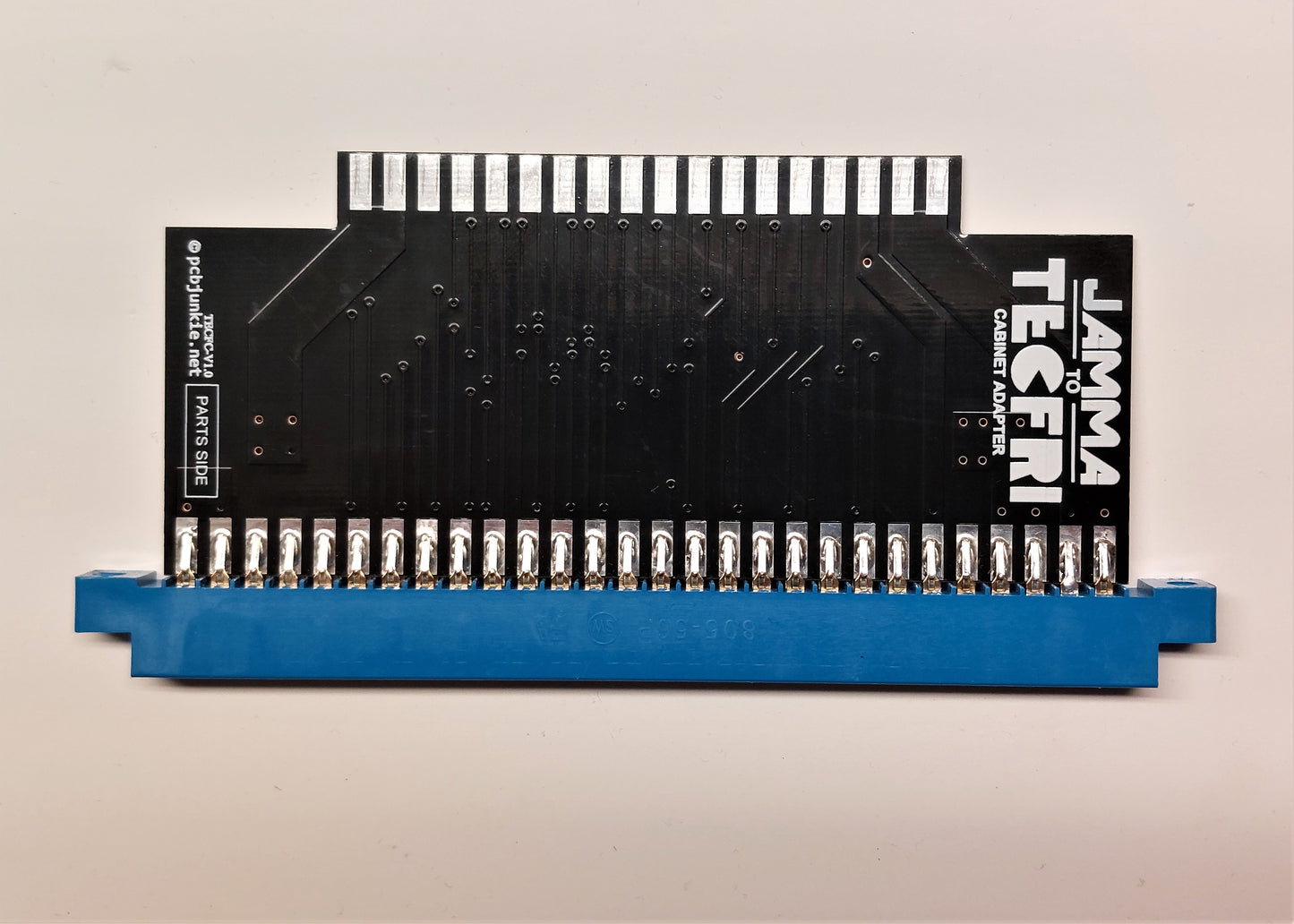

SOLDER SIDE PARTS SIDE
+5V GND
+5V GND
SPK+ +12V
SPK- VSYNC
NC VGREEN
COUNT2 VRED
COUNT1 VBLUE
P2RIGHT COIN1
P2LEFT COIN2
P2DOWN P1START
P2UP P2START
P1RIGHT P2B1
P1LEFT P2B2
P1DOWN P1B1
P1UP P1B2
+12V (COUNT+)
GND +5V
GND +5V

Dimensions

Board Size: 50mm x 112mm
Weight: 50g
