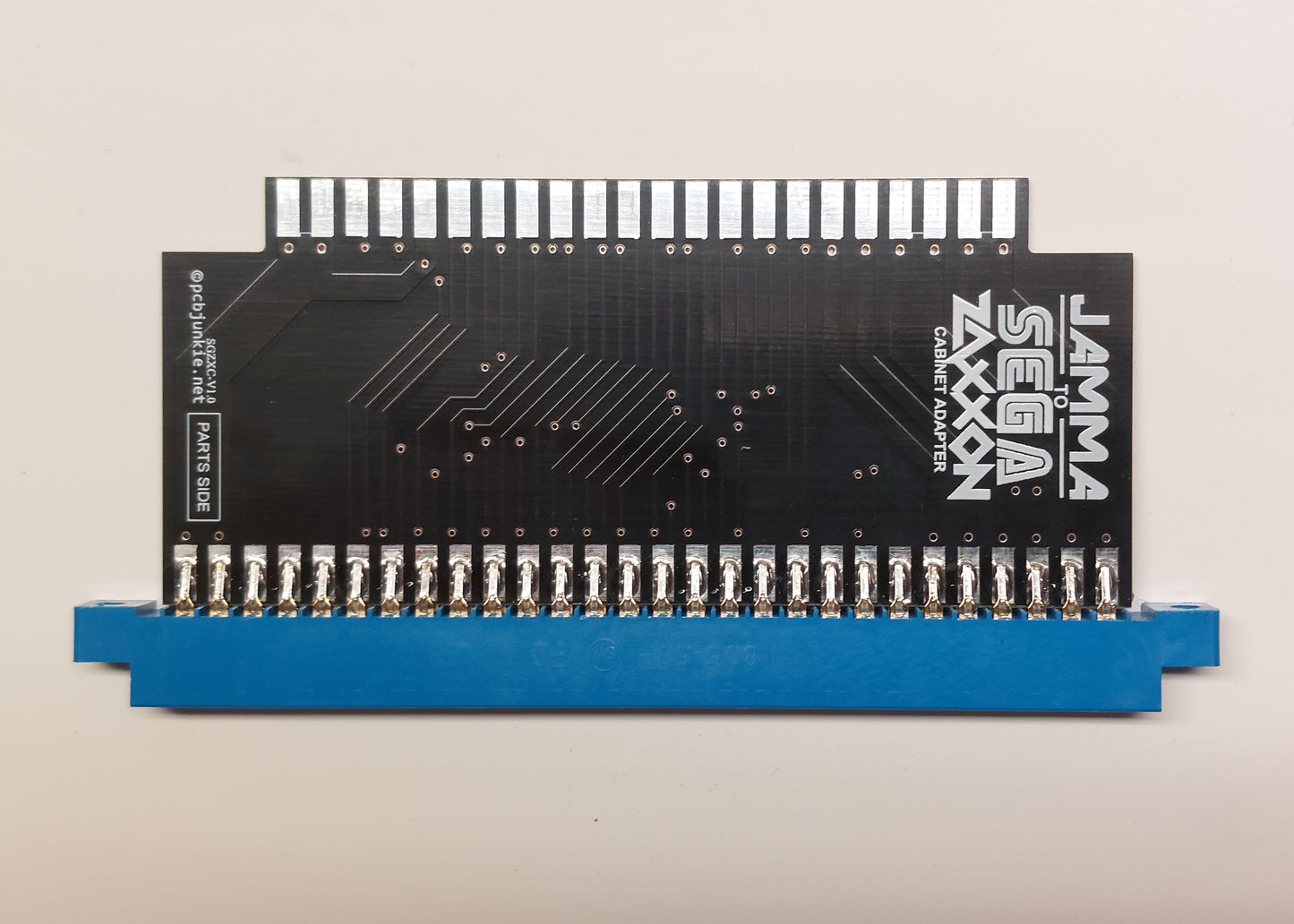

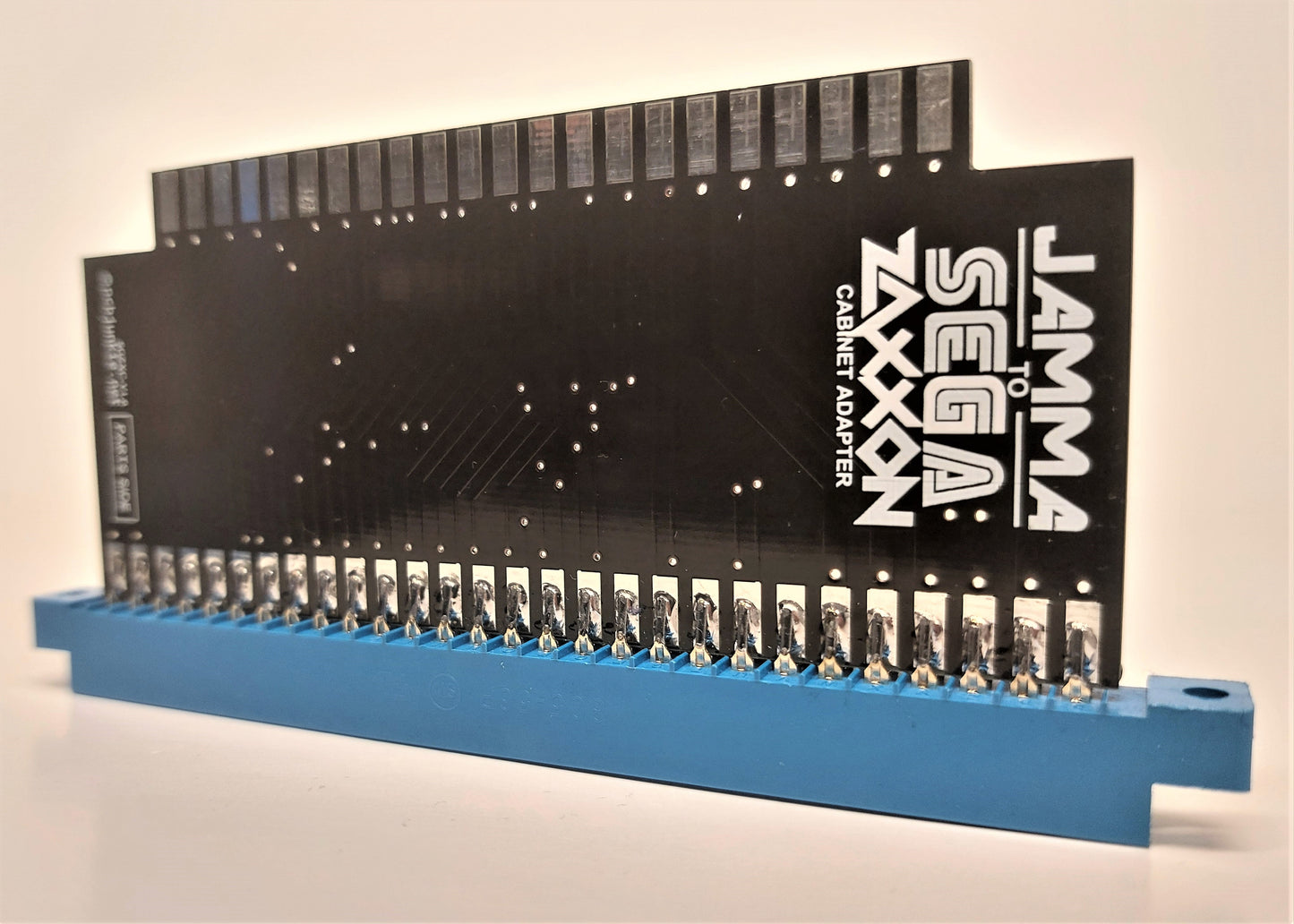

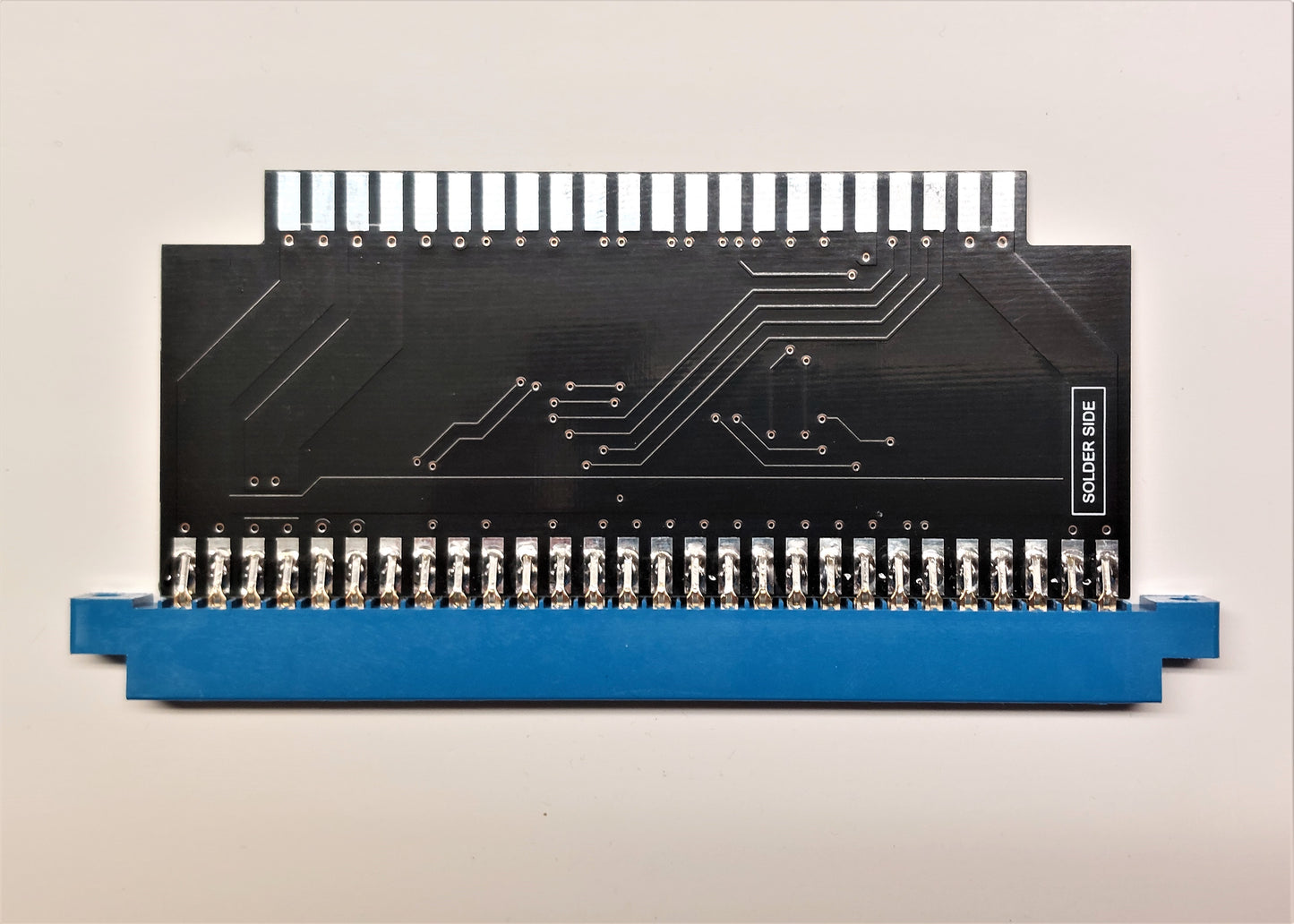

JAMMA to Sega Zaxxon Cabinet Adapter
Allows you to play your JAMMA games in your Sega Zaxxon, Congo Bongo or Super Spy cabinet. Games with up to 2 buttons are supported.
Cabinet Compatibility
Cabinet Compatibility
This is the list of compatible games that can be used with this adapter:
Voltages
Voltages
All JAMMA voltages are available with this adapter.
Inputs and Outputs
Inputs and Outputs
In most circumstances this adapter will work as intended with your cabinet without any modifications. Problems may occur in a modified cabinet, or with games that require more than 2 buttons and more than one coin switch present.
If the button order is wrong you may need to swap the wires going to the buttons behind the control panel.
If game can’t be coined up, say in a case where only COIN2 switch is wired in the cabinet, and the game only supports the COIN1 switch, you may need to swap the connections to the coin switches .
Pinout
Pinout
SOLDER SIDE | PARTS SIDE |
---|---|
GND | GND |
GND | GND |
+5V | +5V |
+5V | +5V |
-5V | -5V |
+12V | +12V |
SPK- | SPK+ |
COUNT1 | COUNT2 |
COIN1 | COIN2 |
RESET | SVC |
P1START | P2START |
P1LEFT | P1RIGHT |
P1UP | P1DOWN |
P1B1 | P1B2 |
P2LEFT | P2RIGHT |
P2UP | P2DOWN |
P2B1 | P2B2 |
GND | GND |
VRED | VGREEN |
VBLUE | VSYNC |
GND | GND |
GND | GND |
Dimensions
Dimensions
Board Size: 45mm x 112mm
Weight: 50g
