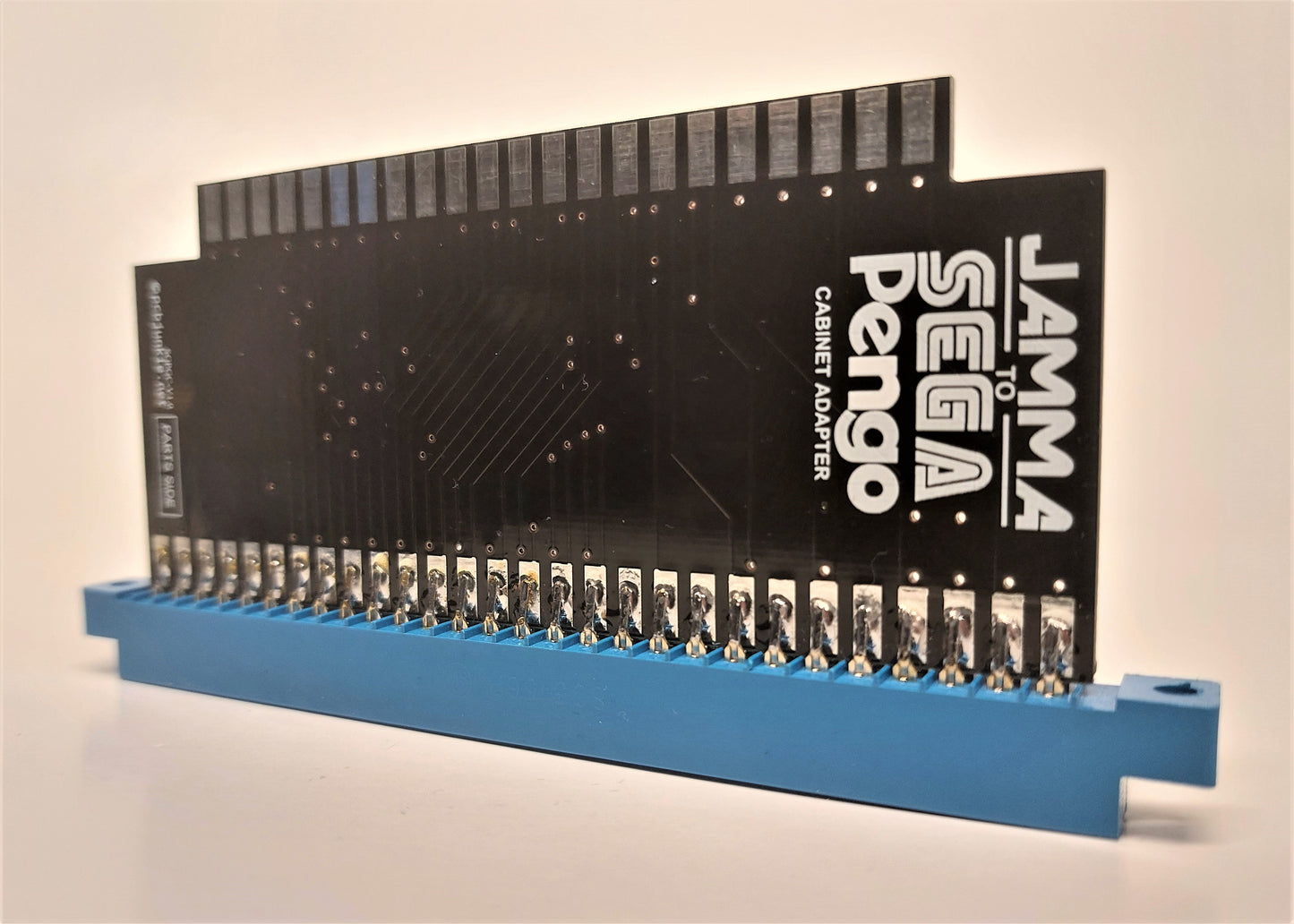

JAMMA to Sega Pengo Cabinet Adapter

Regular price $23.99 CAD
Regular price Sale price $23.99 CAD
Sale Sold out

Allows you to play your JAMMA game in a Sega Pengo pre-JAMMA game cabinet. This adapter supports JAMMA games with only one button.

Cabinet Compatibility

This is the list of compatible games that can be used with this adapter:

Voltages

This adapter does not support the -5V power rail which is not present in Sega Pengo cabinet’s wiring harness. Games that require -5V may not run.

Inputs and Outputs

In most circumstances this adapter will work as intended with your cabinet without any modifications. Problems may occur in a modified cabinet, or with games that require more than one button, or use the -5V power rail.

Pinout

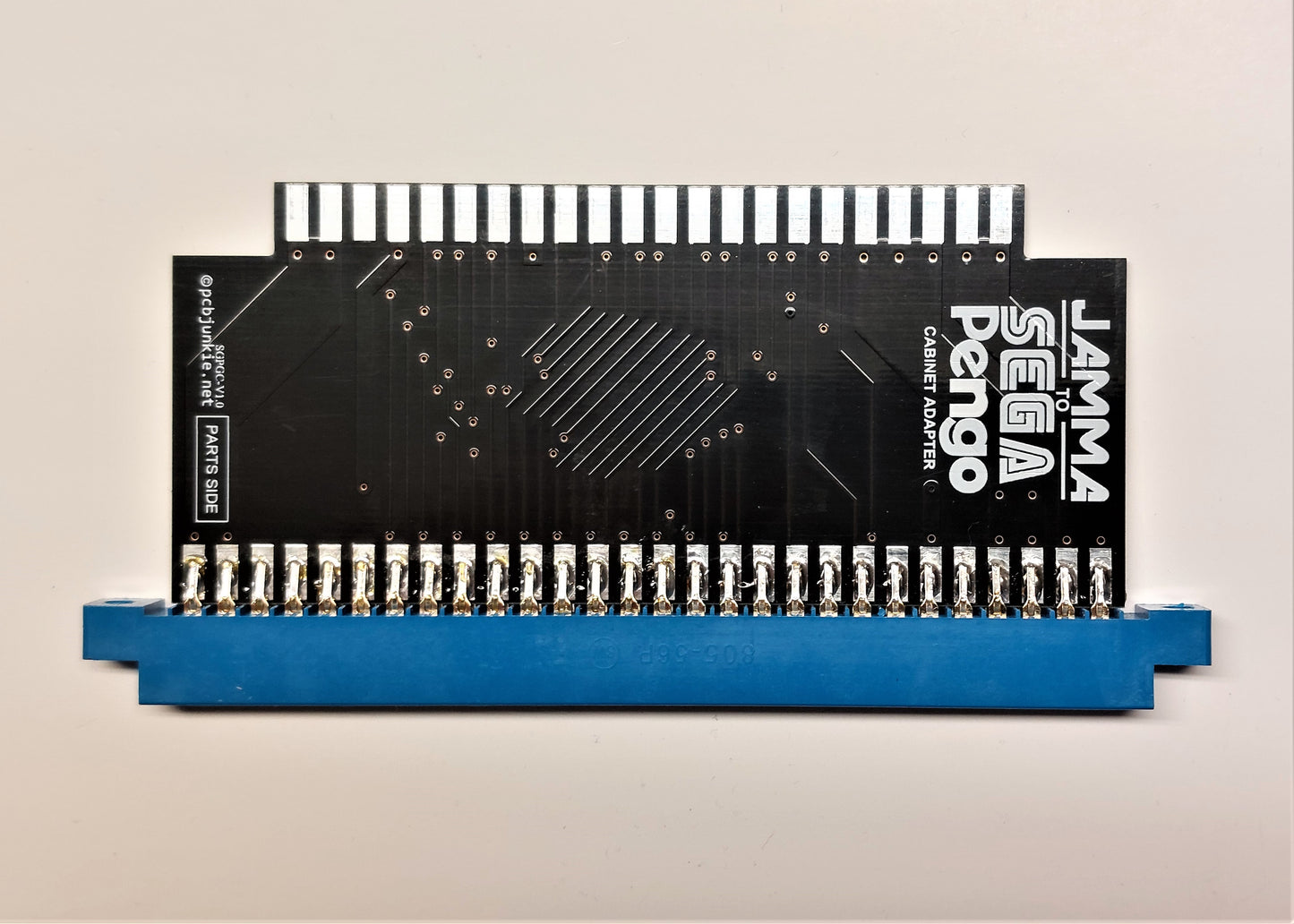

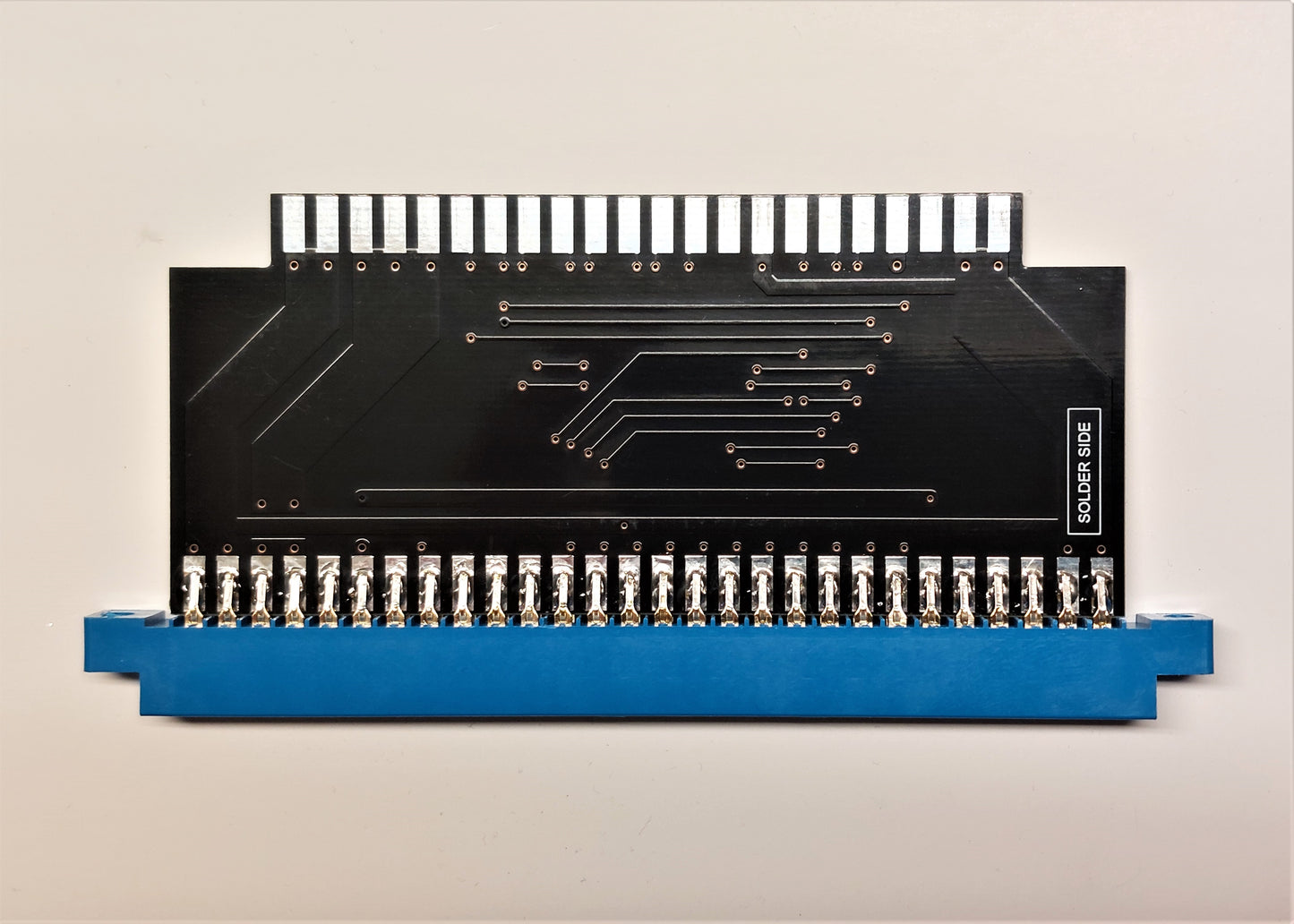

SOLDER SIDE PARTS SIDE
GND GND
GND GND
+5V +5V
+5V +5V
+5V +5V
P1B1 COUNT2
P2B1 COUNT1
COIN1 COIN2
TEST SVC
P1START P2START
P1LEFT P1RIGHT
P1UP P2UP
P2LEFT P2RIGHT
NC P1DOWN
GND GND
VRED VGREEN
VBLUE VSYNC
P2DOWN SPK+
+12V +12V
VOL* VOL*
GND GND
GND GND

Dimensions

Size: 50x113mm
Weight: 50g

Shipping & Returns

Standard 30 days return policy. Buyer pays for return shipping. See Return policy page for more information.
