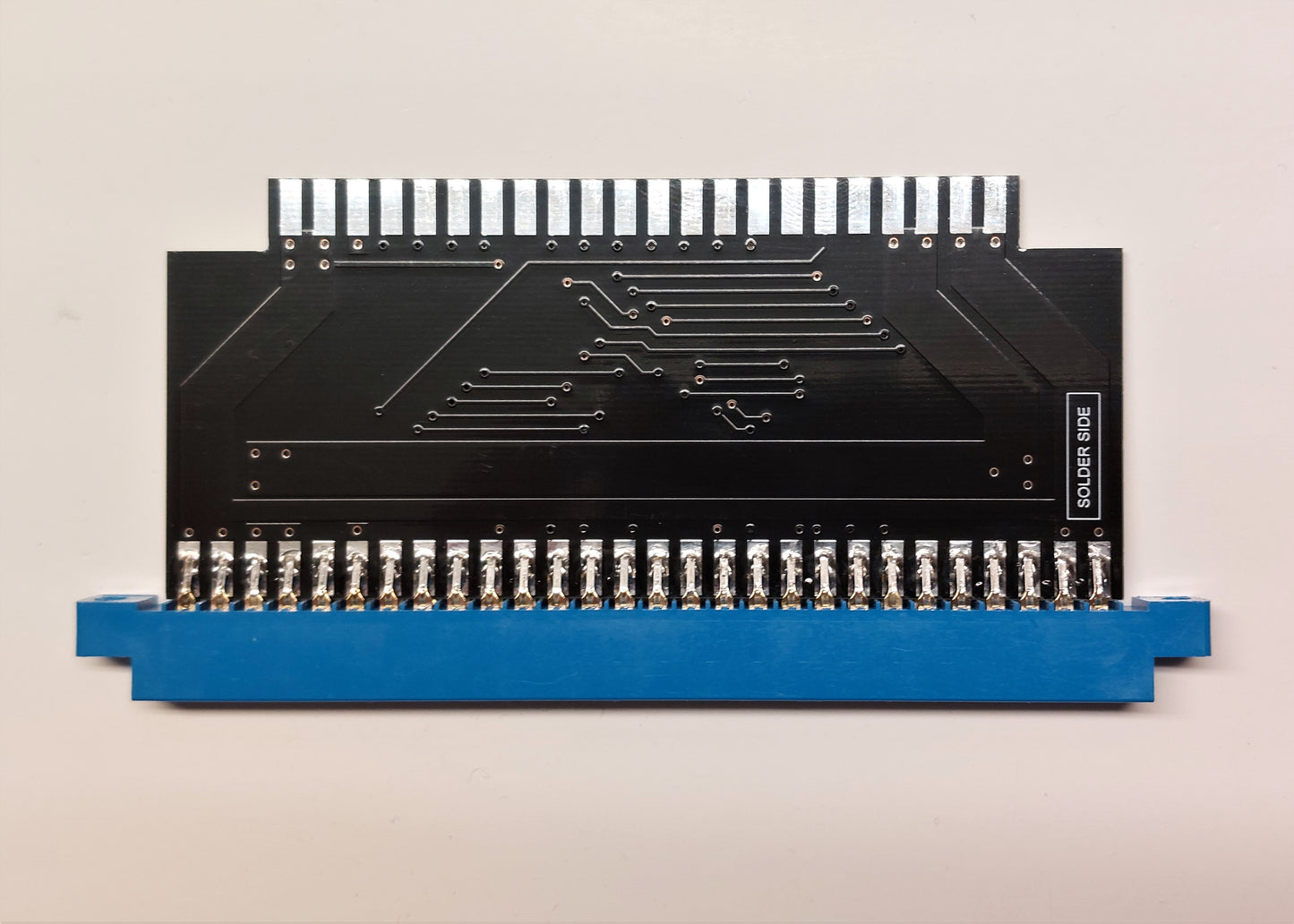

JAMMA to Namco Rally-X to Cabinet Adapter

$27.99 CAD
$27.99 CAD
Sale Sold out

Allows you to play your JAMMA games in a Namco Rally-X cabinet. This adapter will play JAMMA games with up to one button.

Cabinet Compatibility

This is the list of compatible games that can be used with this adapter:

The adapter has been tested with a genuine version of Namco’s Rally-X

Voltages

This adapter does not connect the -5V power rail which is not present in Rally-X cabinet’s wiring harness. Games that require -5V may not run.

Inputs and Outputs

In most circumstances this adapter will work as intended with your cabinet without any modifications. Problems may occur in a modified cabinet, or with games that require more than one button or more than one coin switch.

Pinout

SOLDER SIDE PARTS SIDE
GND GND
GND GND
+12V +12V
SPK+ SPK-
VSYNC VBLUE
VGREEN VRED
VGND GND
TABLE NC
TEST CREDSW
P2B1 P1B1
P2LEFT P1LEFT
P2RIGHT P1RIGHT
P2DOWN P1DOWN
P2UP P1UP
P2START P1START
NC COIN1
COUNT1 NC
CREDMULTPW CREDMUL
+5V +5V
+5V +5V
GND GND
GND GND

Dimensions

Board Size: 50mm x 112mm
Weight: 50g
