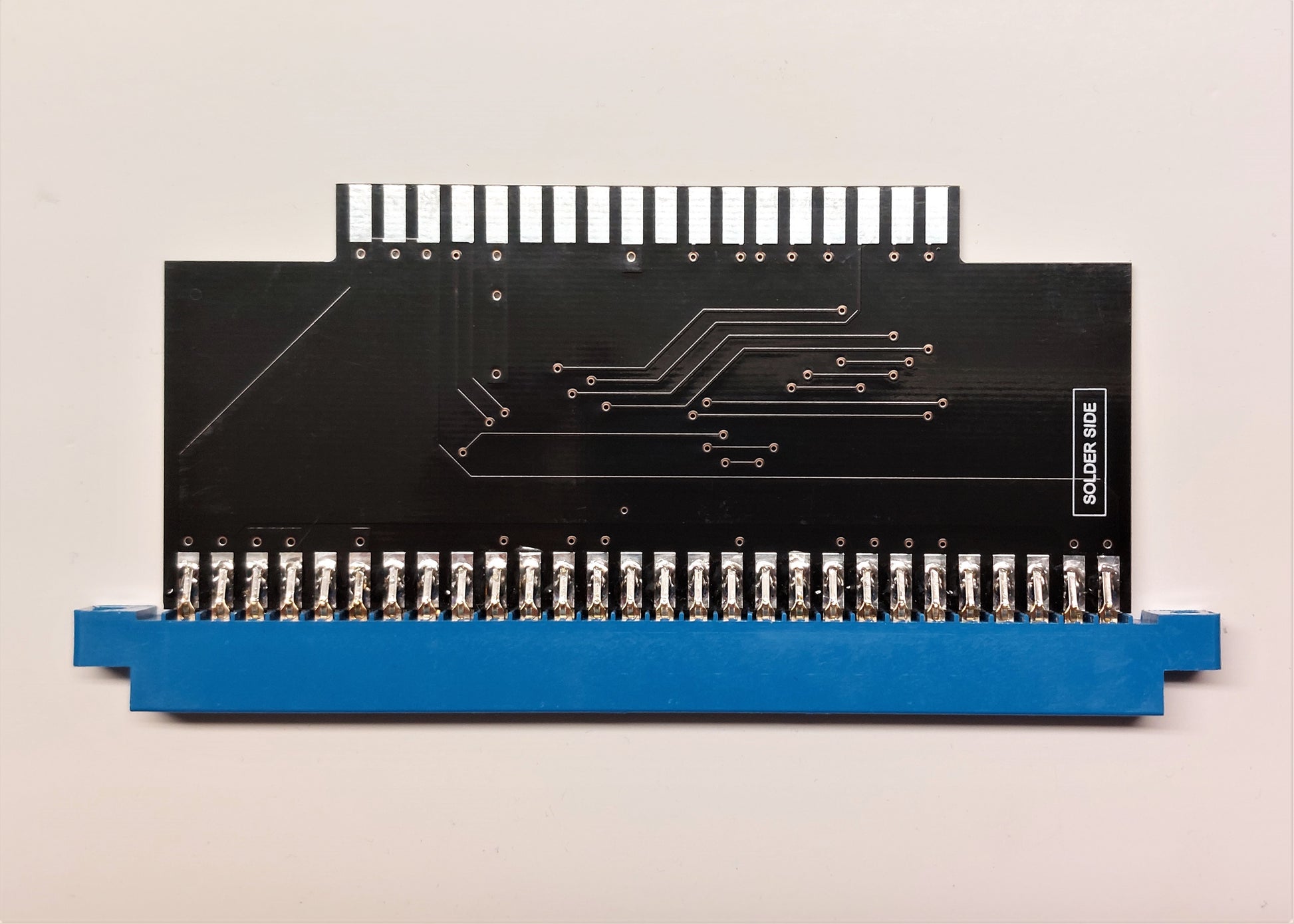

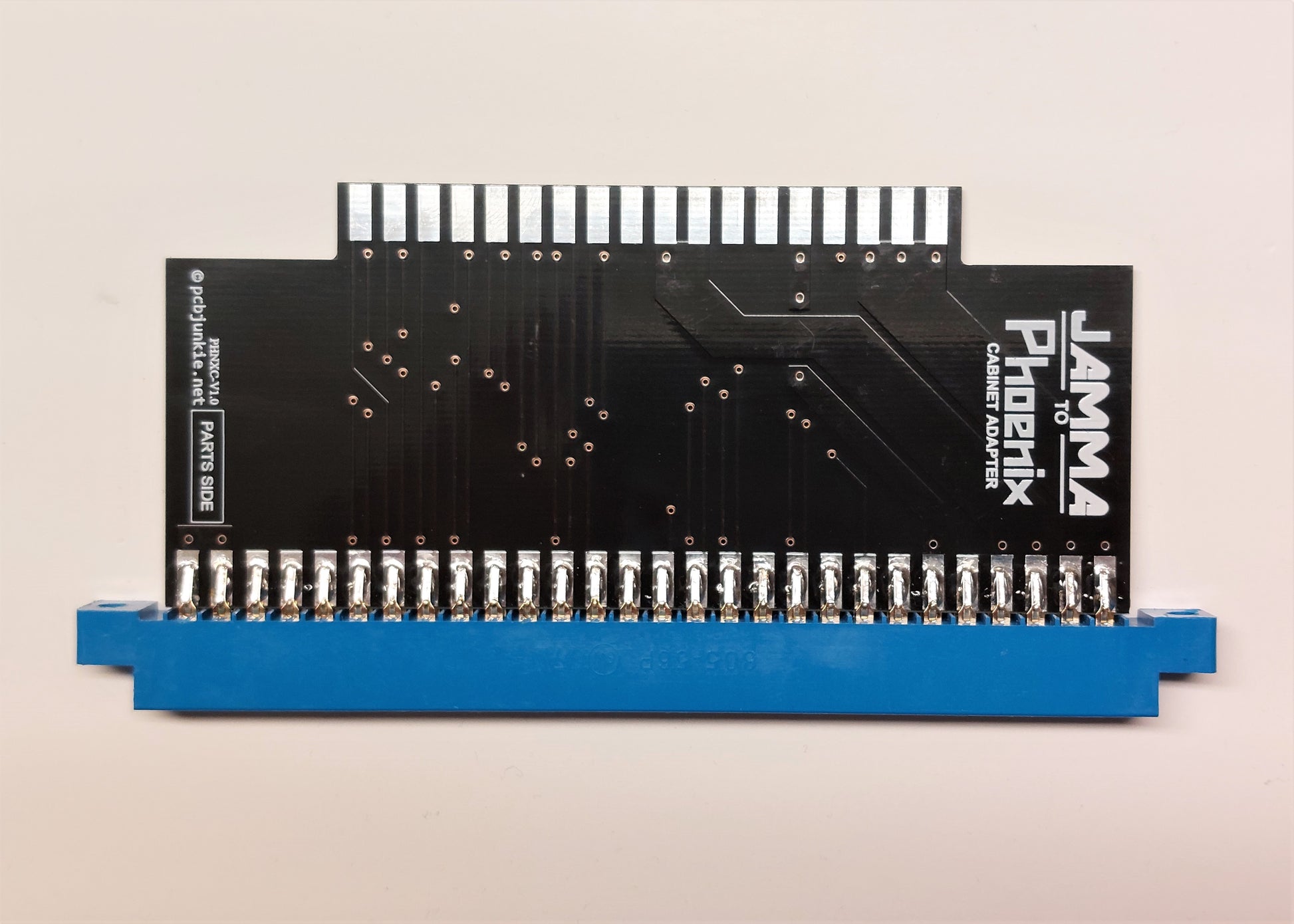

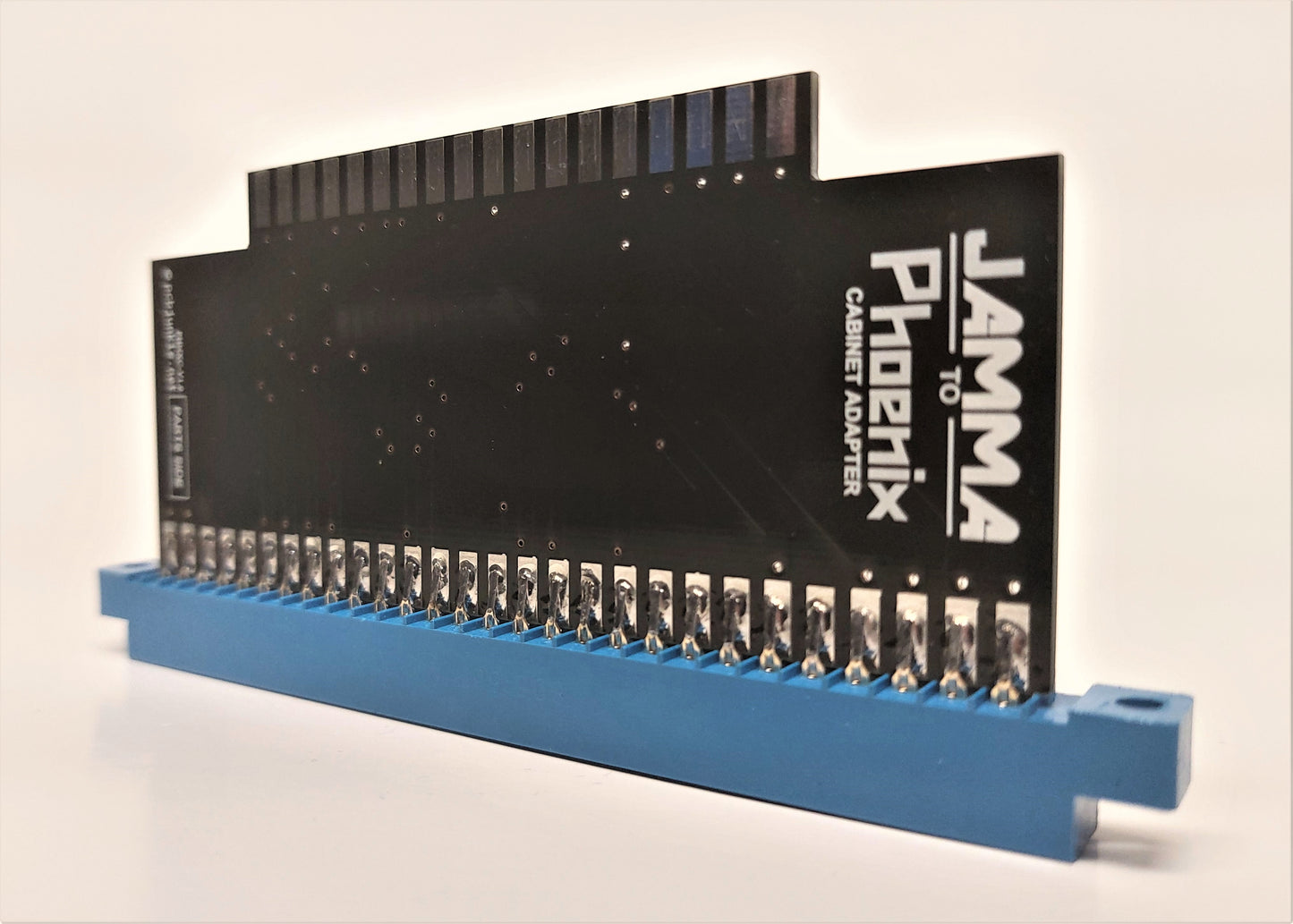

JAMMA to Phoenix Cabinet Adapter

This is the list of compatible games that can be used with this adapter:

• Phoenix
• Pleiades

This adapter does not connect the -5V power rail which is not present in Phoenix / Pleiads cabinets’ wiring harness. Games that require -5V may not run.

In most circumstances this adapter will work as intended with your cabinet without any modifications. Problems may occur in a modified cabinet, or with games that require more than 2 buttons, 2 coin switches, or 4 way joysticks. This limitation however, still allows many games, especially vertical shooters, to be played on these cabinets.

If the button order is wrong you may need to swap the wires going to the buttons behind the control panel. If the game can’t be coined up, the coin switch wires may need to be bridged in order to trigger both coin 1 and coin 2 pins on the JAMMA end.

Size: 50x113mm
Weight: 50g
