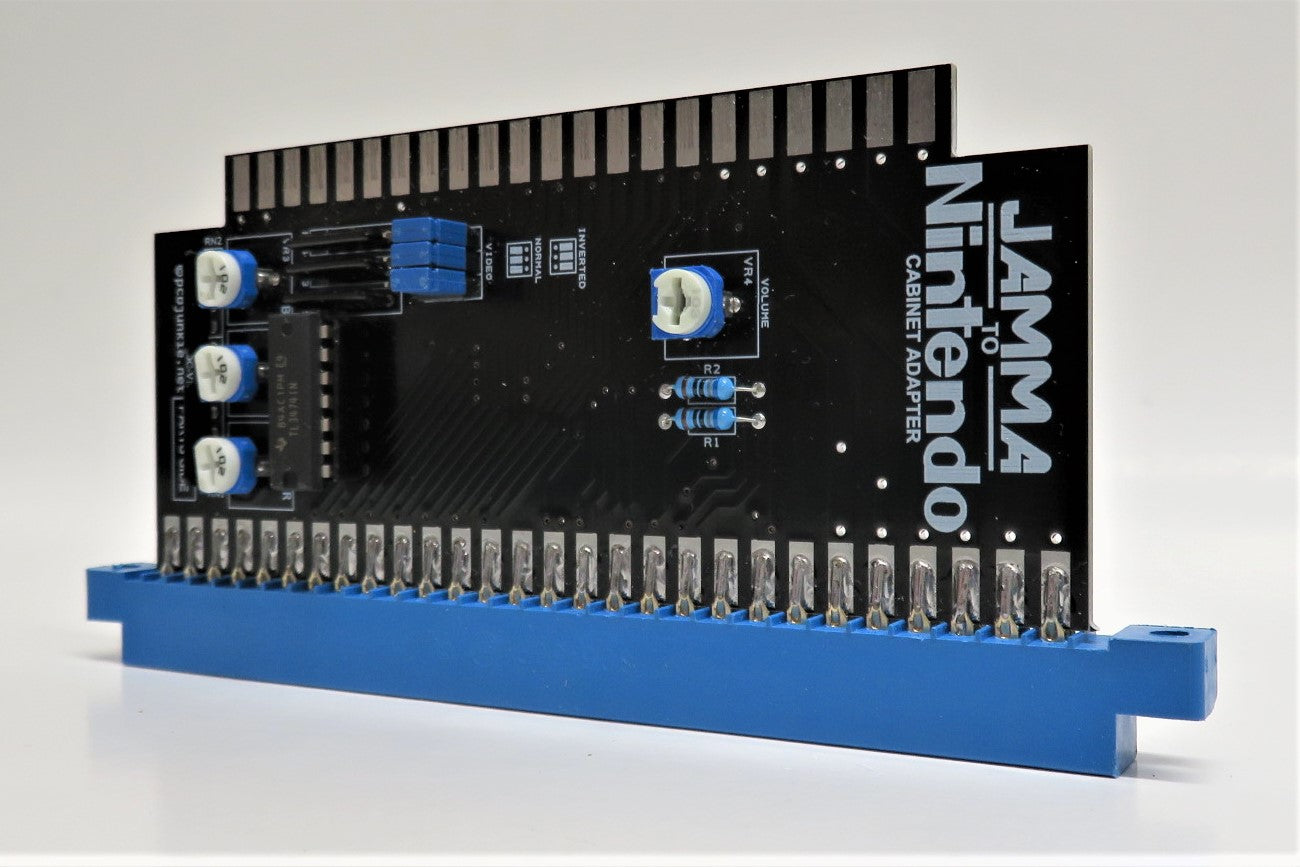

JAMMA to Nintendo Cabinet Adapter

Regular price $57.99 CAD
Regular price Sale price $57.99 CAD
Sale Sold out

Allows you to play your JAMMA games in a Nintendo cabinet.

The original Nintendo PCBs output inverted video signals and require an external sound amplifier, while bootlegs output normal video signals and have an on-board sound amp. The cabinet, depending on what game is inside, will likely have the audio amplifier and the original inverting monitor, but not necessarily.

As a result this adapter includes a sound attenuating circuit and a video inverter. The low cost, high speed video inverter can be disabled on the adapter making it compatible with both original and modified cabinets via a couple of jumpers.

The signal DC offset for each color (Red, Green and Blue) can also be adjusted to display properly on am inverting monitor. The video inverter is a simple linear design for the best possible picture at a low cost.

Pinout

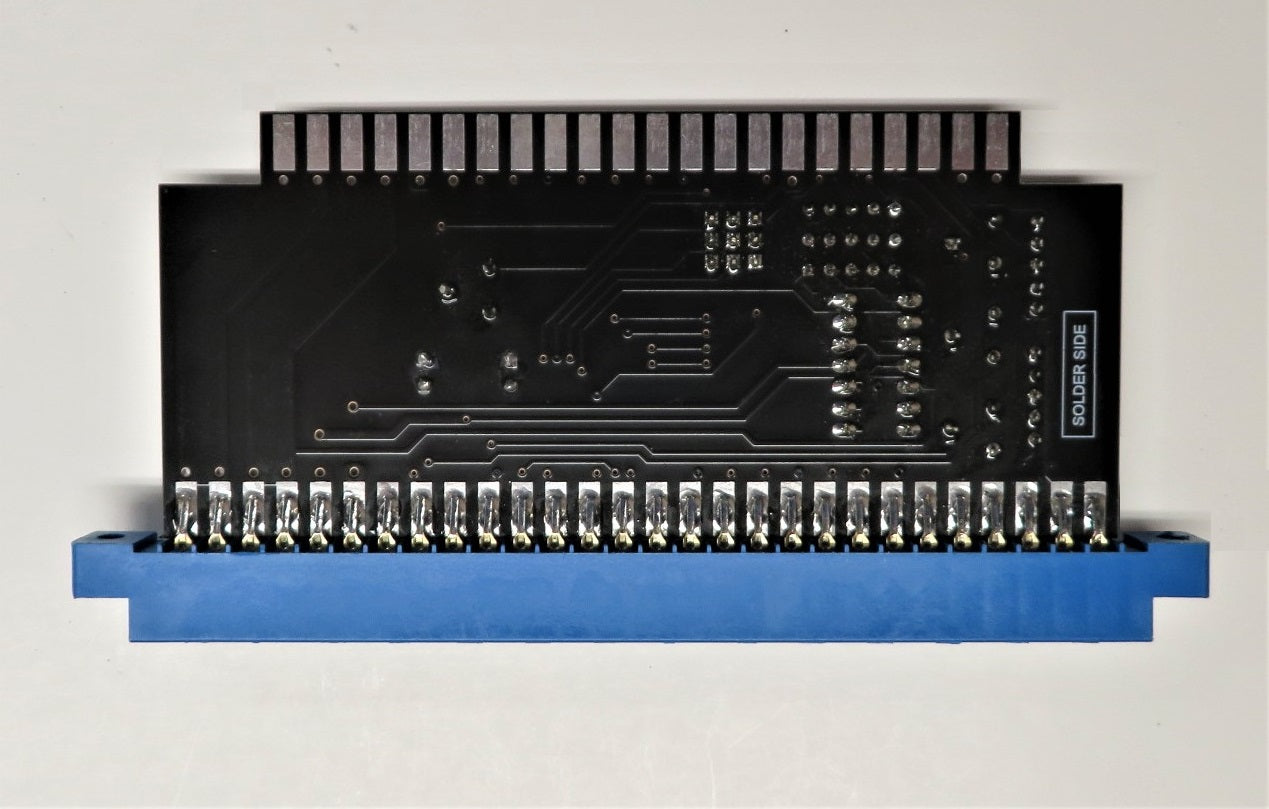

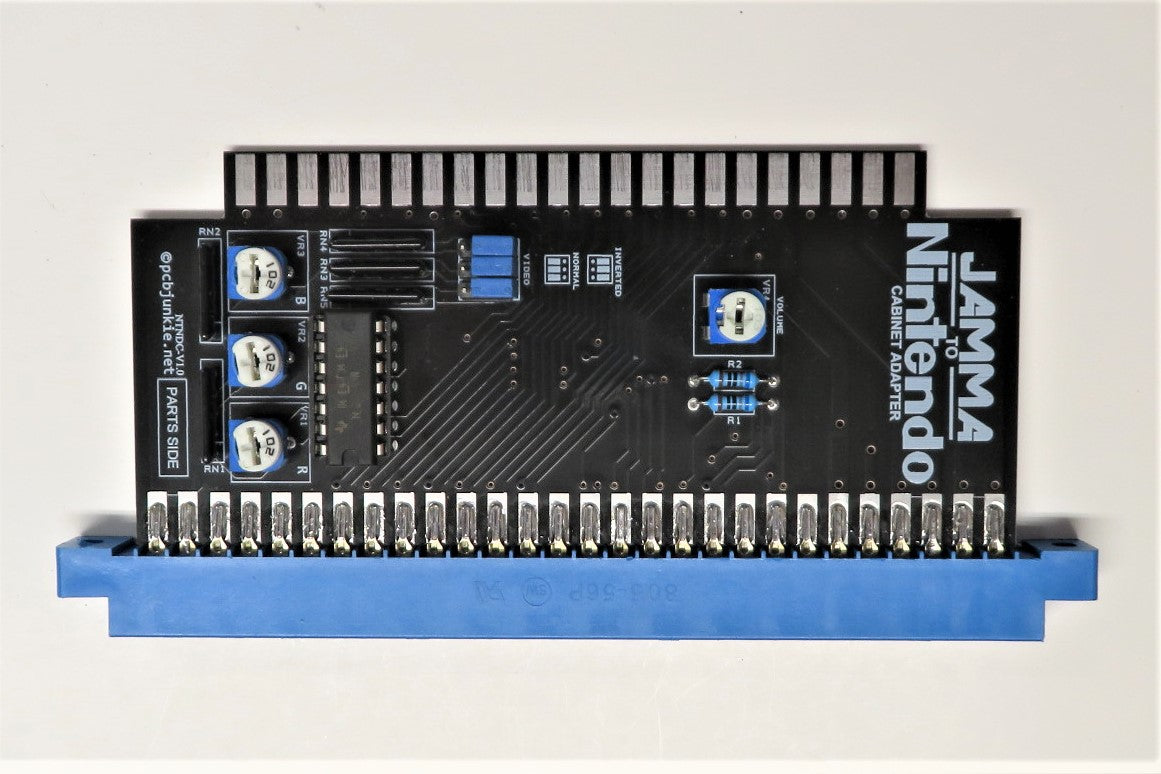

SOLDER SIDE PARTS SIDE
GND GND
GND GND
+5V +5V
+5V +5V
+12V +12V
-5V -5V
COIN1 COIN2
P1START P2START
P1RIGHT P2RIGHT
P1LEFT P2LEFT
P1UP P2UP
P1DOWN P2DOWN
P1B1 P2B1
NC NC
SVC COUNT2
GND GND
VRED VGREEN
VBLUE VSYNC
AUDIO SPK+
COUNT1 +24V
GND GND
GND GND

Dimensions

Board Size: 50mm x 113mm
Weight: 70g

Shipping & Returns

Standard 30 days return policy. Buyer pays for return shipping. See Return policy page for more information.
