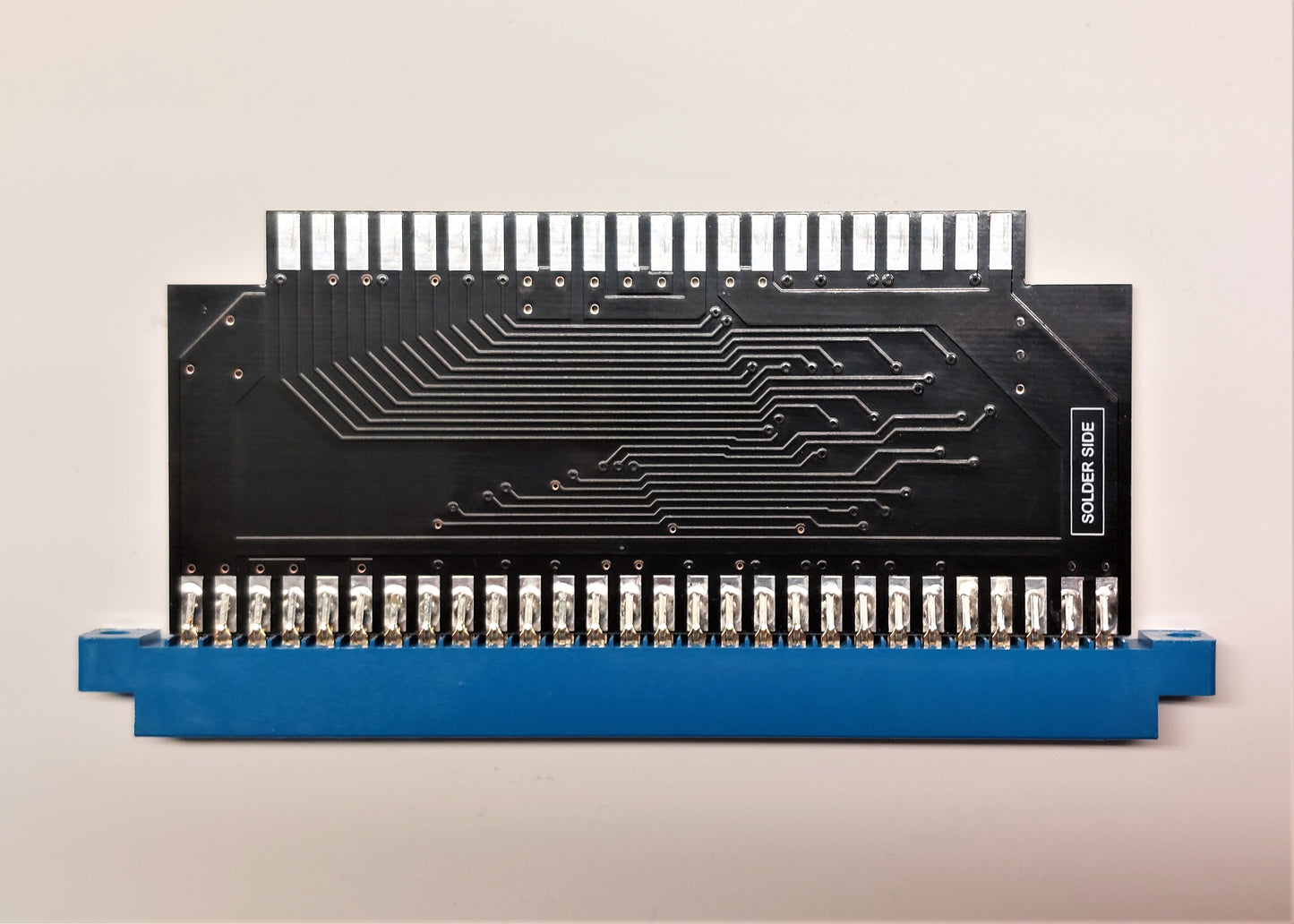

JAMMA to Nichibutsu Type B Cabinet Adapter

Regular price $23.99 CAD
Regular price Sale price $23.99 CAD
Sale Sold out

Allows you to use your JAMMA game in a Nichibutsu cabinet, or a cabinet wired according to the Nichibutsu Type B conversion class. Games with up to two buttons are supported.

Cabinet Compatibility

This is the list of compatible games that should be compatible with this adapter:



Voltages

This adapter does not connect the -5V power rail which is not present in Nichibutsu cabinets’ wiring harness. Games that require -5V may not run.

Inputs and Outputs

In most circumstances this adapter will work as intended with your cabinet without any modifications. Problems may occur in a modified cabinet, or with games that require more than 2 buttons.

If the button order is wrong you may need to swap the wires going to the buttons behind the control panel.

Pinout

SOLDER SIDE PARTS SIDE
P1UP P1DOWN
P1LEFT P1RIGHT
P1B1 P1B2
P2UP P2DOWN
P2LEFT P2RIGHT
P2B1 P2B2
COIN1 COIN2
GND GND
GND GND
+5V +5V
+12V NC
NC +12V
+5V +5V
GND GND
GND GND
P1START P2START
TEST SVC
COUNT1 COUNT2
SPK+ SPK-
NC VRED
VGREEN VBLUE
VGND VSYNC

Dimensions

Board Size: 50mm x 112mm
Weight: 50g
