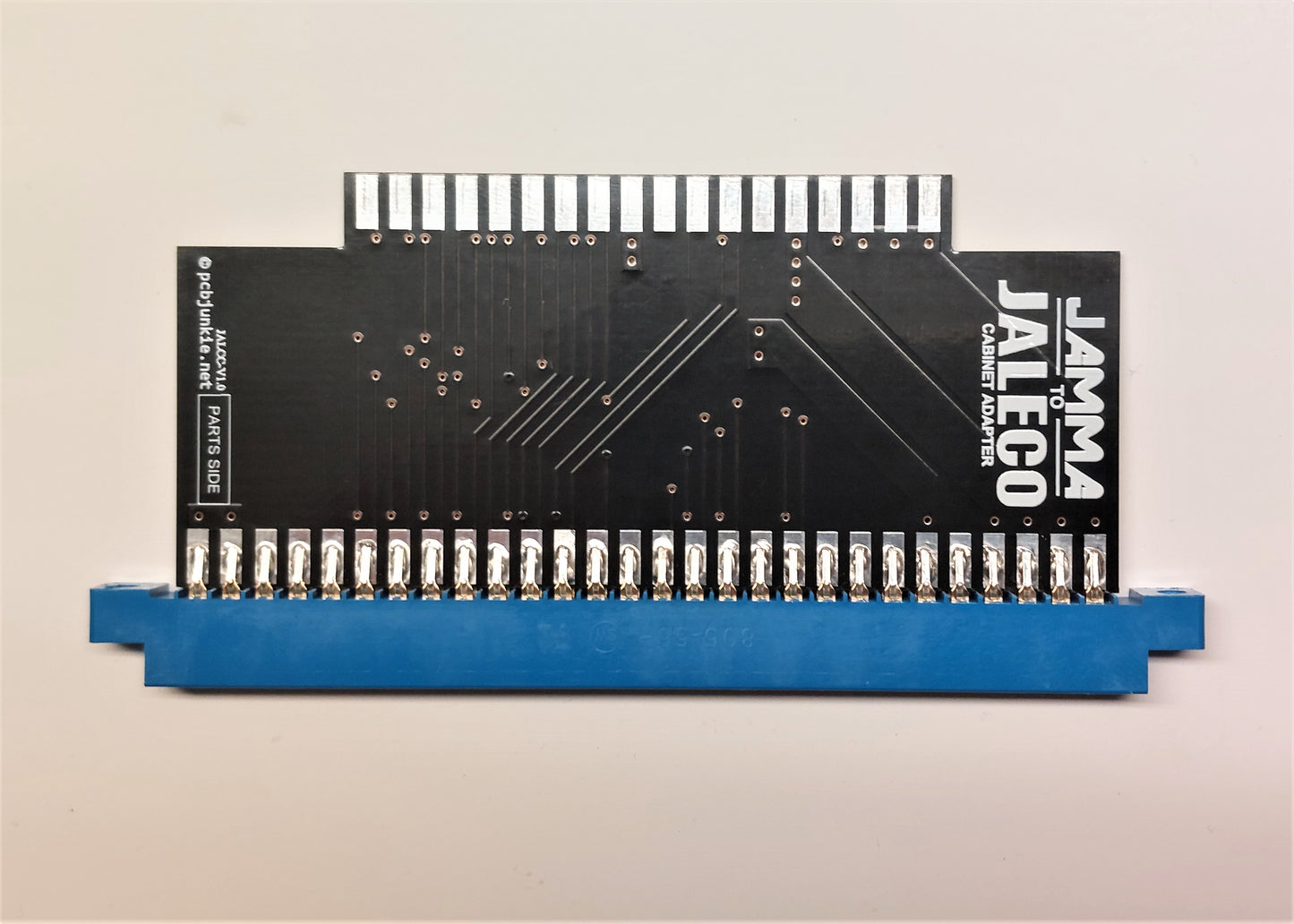

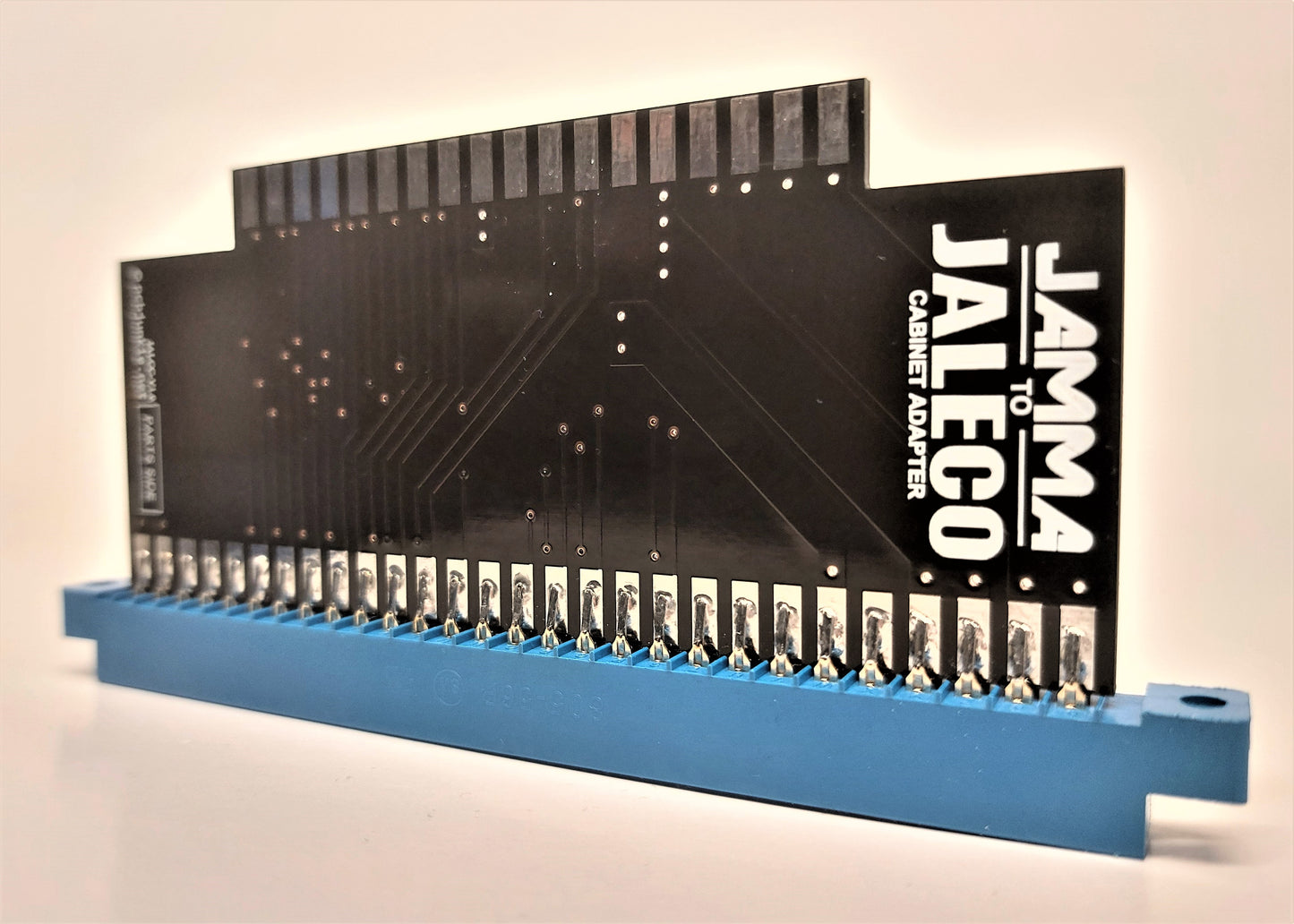

JAMMA to Jaleco Cabinet Adapter
Allows you to use your JAMMA game in a Jaleco cabinet, or a cabinet wired according to the Jaleco conversion class. Games with up to two buttons are supported.
Cabinet Compatibility
Cabinet Compatibility
This is the list of compatible games that can be used with this adapter:
* – Unverified / Untested pinout
Voltages
Voltages
This adapter does not connect the -5V power rail which is not present in Jaleco cabinets’ wiring harness. Games that require -5V may not run.
Inputs and Outputs
Inputs and Outputs
In most circumstances this adapter will work as intended with your cabinet without any modifications. Problems may occur in a modified cabinet, or with games that require more than 2 buttons, or 2 coin switches present.
If the button order is wrong you may need to swap the wires going to the buttons behind the control panel. Similarly, games that require a certain coin switch to be activated to coin up the game, may not work until the coin switches are either bridged or swapped.
Pinout
Pinout

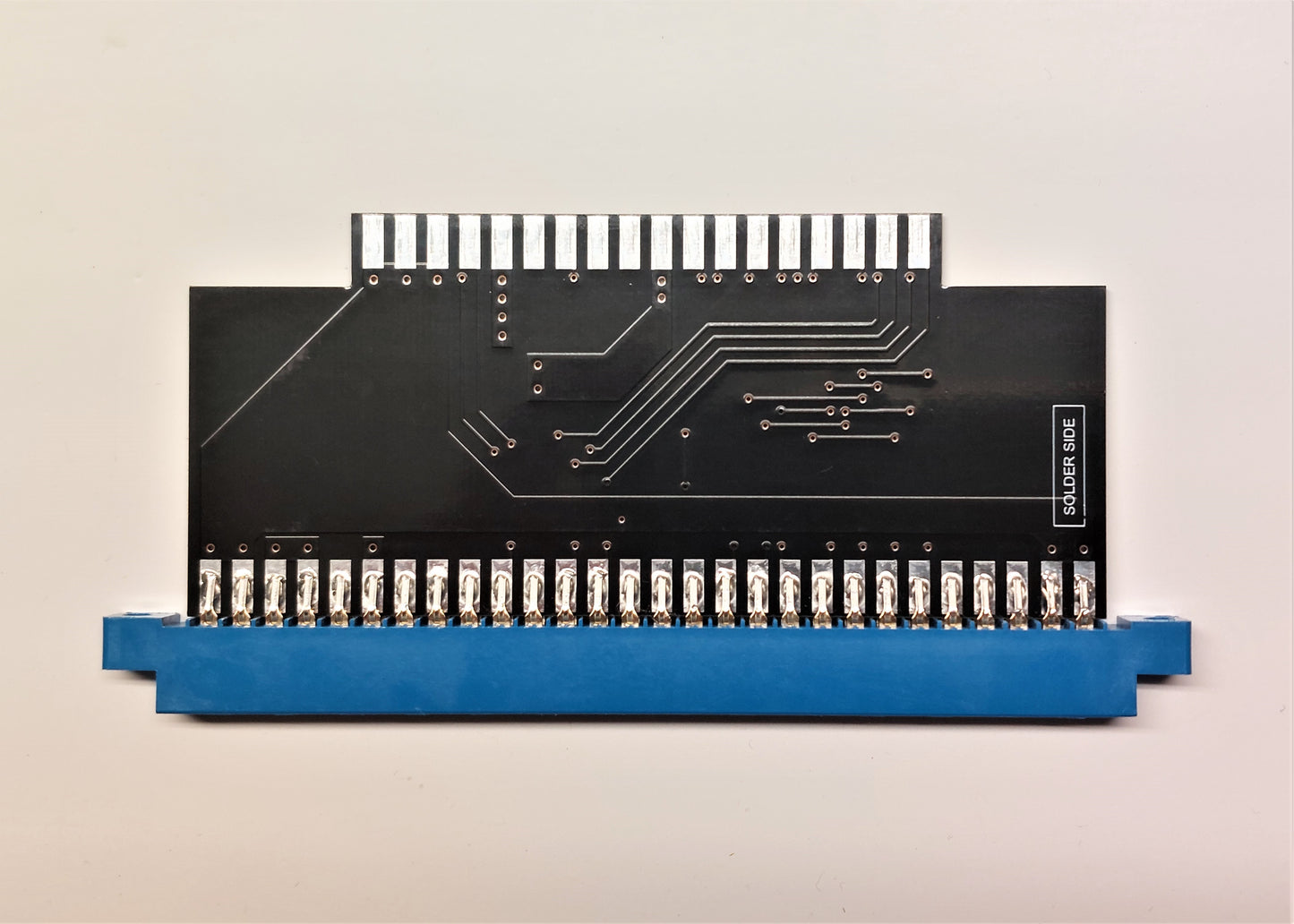

SOLDER SIDE | PARTS SIDE |
---|---|
GND | GND |
GND | GND |
GND | GND |
SPK- | SPK+ |
+5V | +5V |
KEY | KEY |
P2START | P1START |
NC | COIN1 |
NC | NC |
+12V | +12V |
P2UP | P1UP |
P2DOWN | P1DOWN |
P2RIGHT | P1RIGHT |
P2LEFT | P1LEFT |
P2B1 | P1B1 |
P2B2 | P1B2 |
VBLUE | VRED |
VSYNC | VGREEN |
Dimensions
Dimensions
Board Size: 50mm x 112mm
Weight: 50g
Shipping & Returns
Shipping & Returns
Standard 30 days return policy. Buyer pays for return shipping. See Return policy page for more information.
