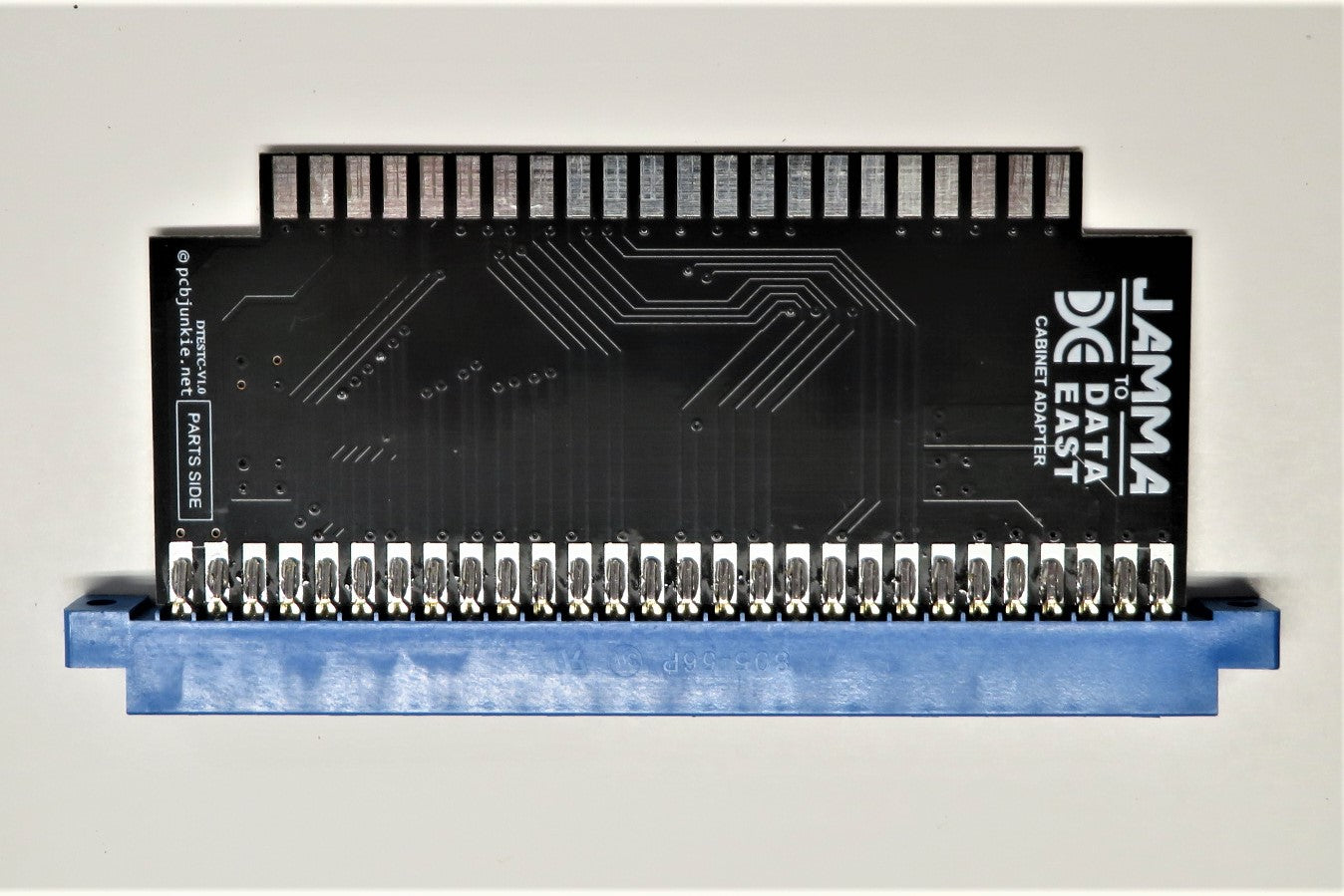

JAMMA to Data East Cabinet Adapter

This is the list of compatible games that can be used with this adapter:

• Big Pro Wrestling!
• Karate Champ *
• Karate Champ – Player Vs Player *
• Karate Dou *
• Tag Team Wrestling
• Taisen Karate Dou
• Competition Golf
• Metal Clash
• Ring King
• Shootout
• Battle Lane Vol. 5
• Express Raider
• Ring King II
• Western Express
• Captain Silver
• Garyo Retsuden
• Kuhga – Operation Code ‘Vapor Trail’

The adapter has been tested with genuine Data East boards for compatibility.

* Karate Champ is not compatible. Its controls use joysticks instead of buttons. While the game will run and display properly, it can’t be correctly controlled.

The adapter connects all available voltages, however some Data East cabinets do not have a -5V power rail available in their harness. Please make sure your game is compatible with your cabinet's power supply and wiring.

In most circumstances this adapter will work as intended with your cabinet without any modifications. Problems may occur playing some JAMMA games in a modified cabinet with less than 3 buttons, or only one coin switch present.

If the button order is wrong you may need to swap the wires going to the buttons behind the control panel. If a button doesn’t register at all, say only JAMMA button 2 and 3 work, you may need to run a jumper from button 3 to button 1 at the cabinet wire harness edge connector.

If game can’t be coined up, say in a case where only COIN2 switch is wired in the cabinet, and the game only supports the COIN1 switch, you may need to swap the coin wires on the harness or potentially jumper them together to get the game to coin up.

Board Size: 50mm x 112mm
Weight: 50g
