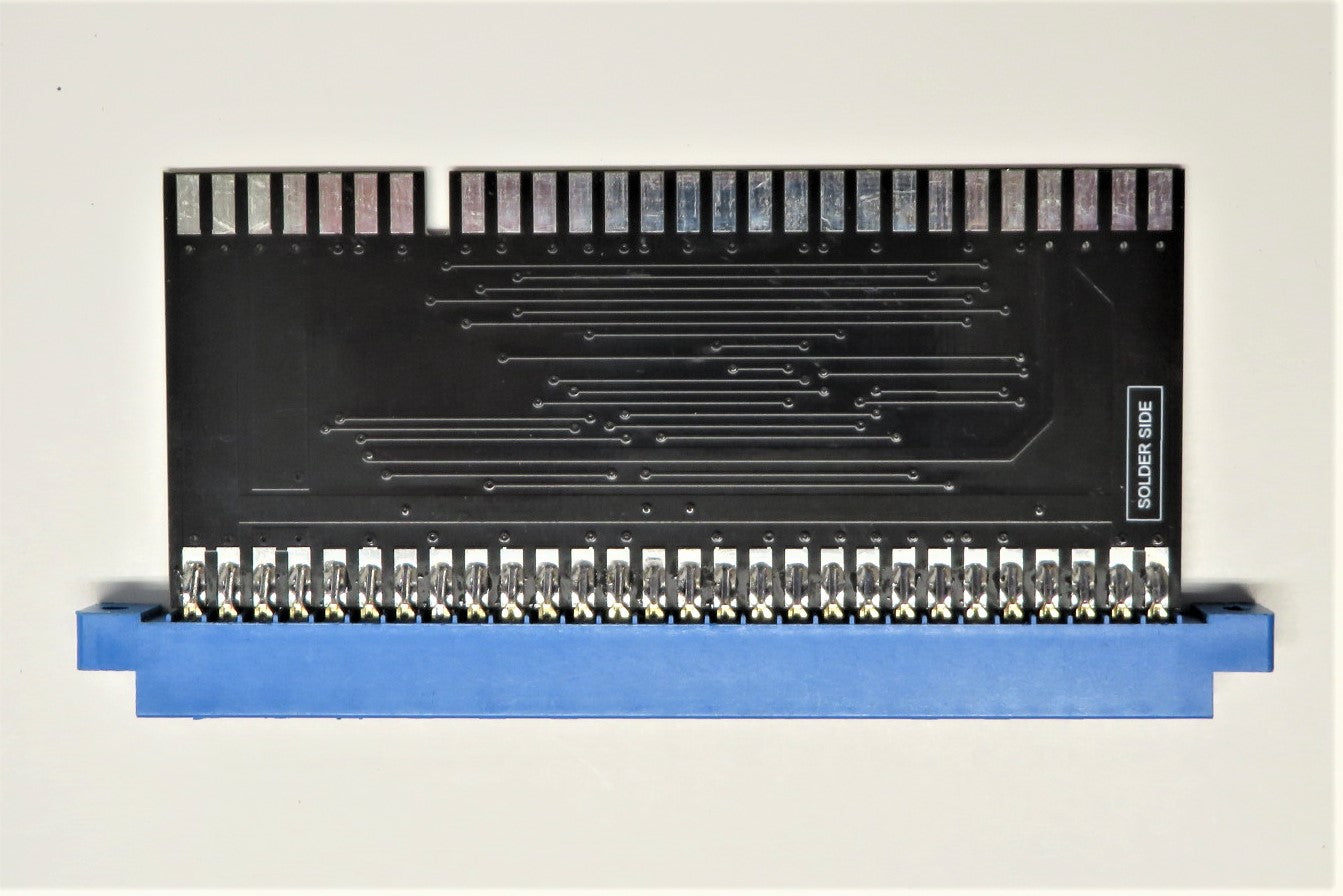

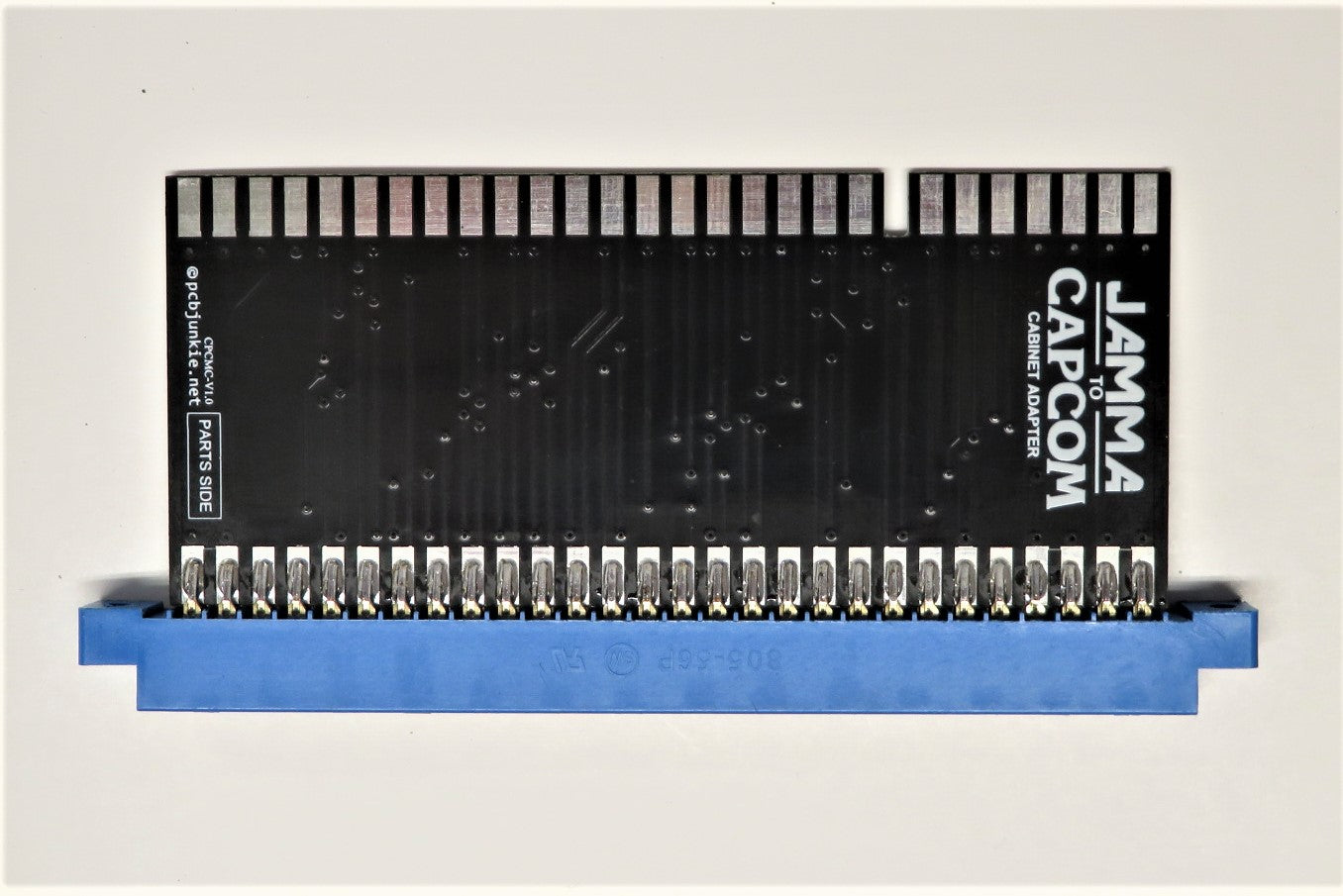

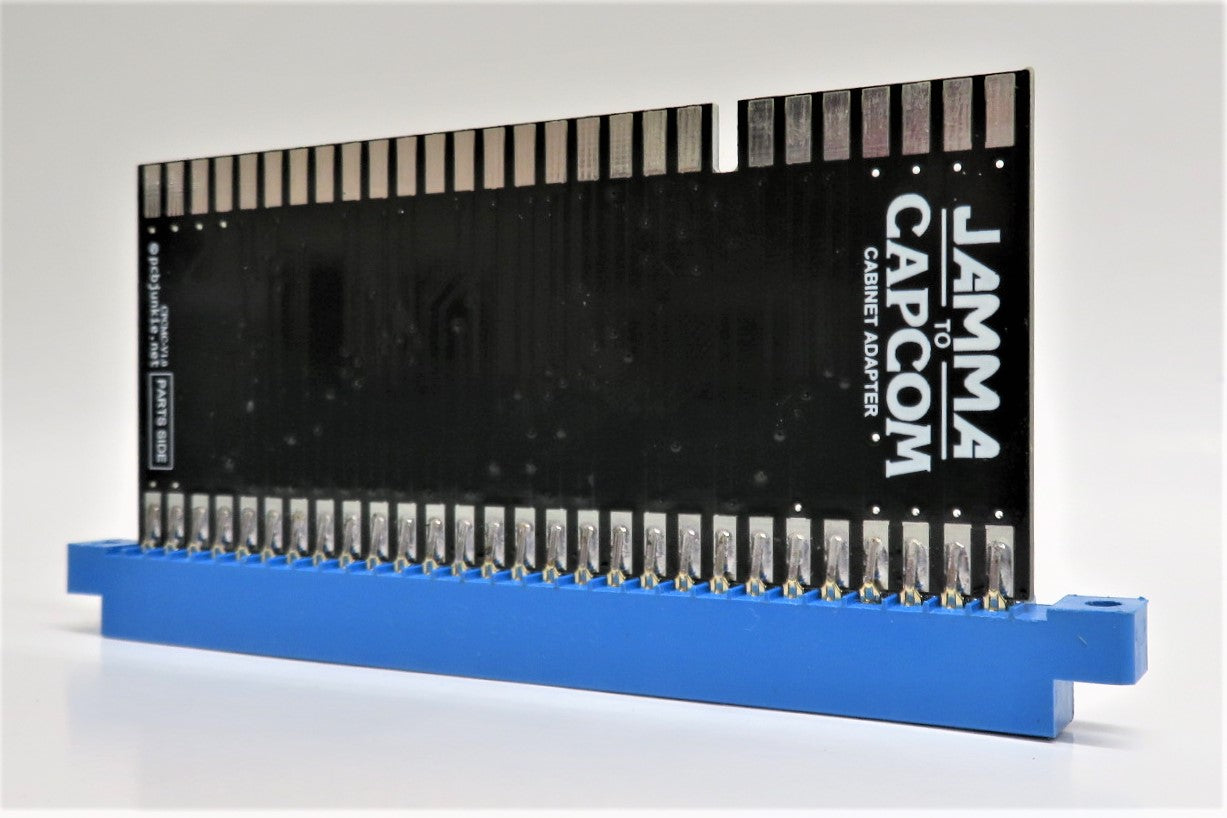

JAMMA to Capcom Cabinet Adapter

• Commando
• Exed Exes
• Ghosts ‘n Goblins
• Gun Smoke
• Makaimura
• Savage Bees
• Section Z
• Senjou No Ookami
• Space Invasion
• Ares No Tsubasa – The Legendary Soldiers
• Legendary Wings
• Tatakai No Banka
• Trojan
• Avengers
• Hissatsu Buraiken

This adapter does not support the -5V power rail which is not present in these Capcom cabinet's wiring harness. Games that require -5V may not run.

In most circumstances this adapter will work as intended with your cabinet without any modifications. Problems may occur playing some JAMMA games in a modified cabinet with less than 3 buttons, or only one coin switch present.

If the button order is wrong you may need to swap the wires going to the buttons behind the control panel. If a button doesn’t register at all, say only JAMMA button 2 and 3 work, you may need to run a jumper from button 3 to button 1 at the cabinet wire harness edge connector.

If game can’t be coined up, say in a case where only COIN2 switch is wired in the cabinet, and the game only supports the COIN1 switch, you may need to swap the coin wires on the harness or potentially jumper them together to get the game to coin up.

Board Size: 45mm x 112mm
Weight: 40g
