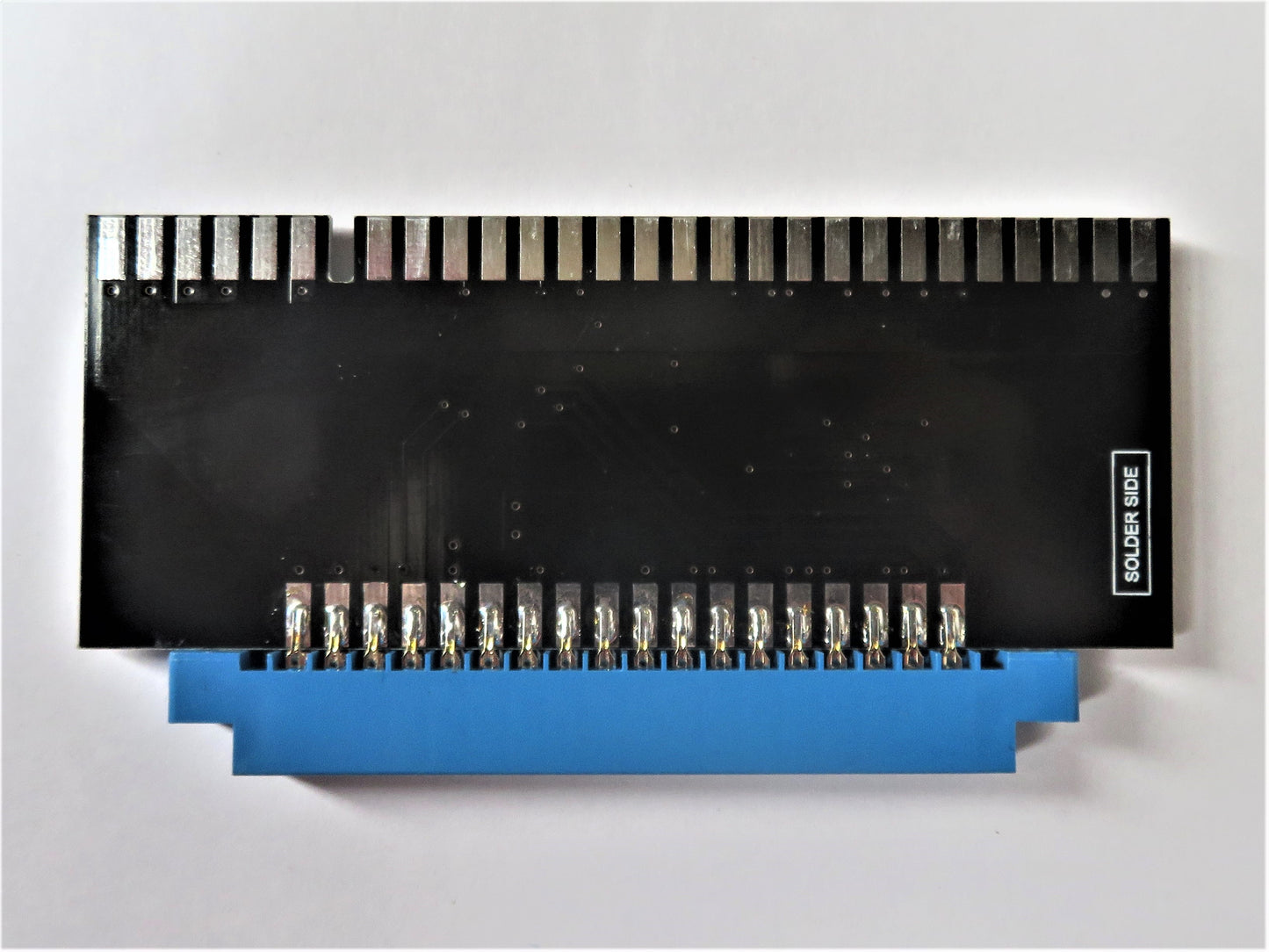

Jaleco to JAMMA Adapter
Couldn't load pickup availability
Allows you to use your Jaleco pre-JAMMA game, in a JAMMA cabinet or a supergun device.
Jaleco or Japanese Leisure Company produced some fairly decent games in the 1980s for the arcade market before moving to focus on the console market in the 1990s. While the number of games in this pinout class is rather limited, the games themselves are memorable and popular enough to merit their own adapter.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
* – Unverified / Untested pinout
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| GND | GND |
| GND | GND |
| SPK- | SPK+ |
| +5V | +5V |
| KEY | KEY |
| P2START | P1START |
| NC | COIN1 |
| NC | NC |
| +12V | +12V |
| P2UP | P1UP |
| P2DOWN | P1DOWN |
| P2RIGHT | P1RIGHT |
| P2LEFT | P1LEFT |
| P2B1 | P1B1 |
| P2B2 | P1B2 |
| VBLUE | VRED |
| VSYNC | VGREEN |
Dimensions
Dimensions
