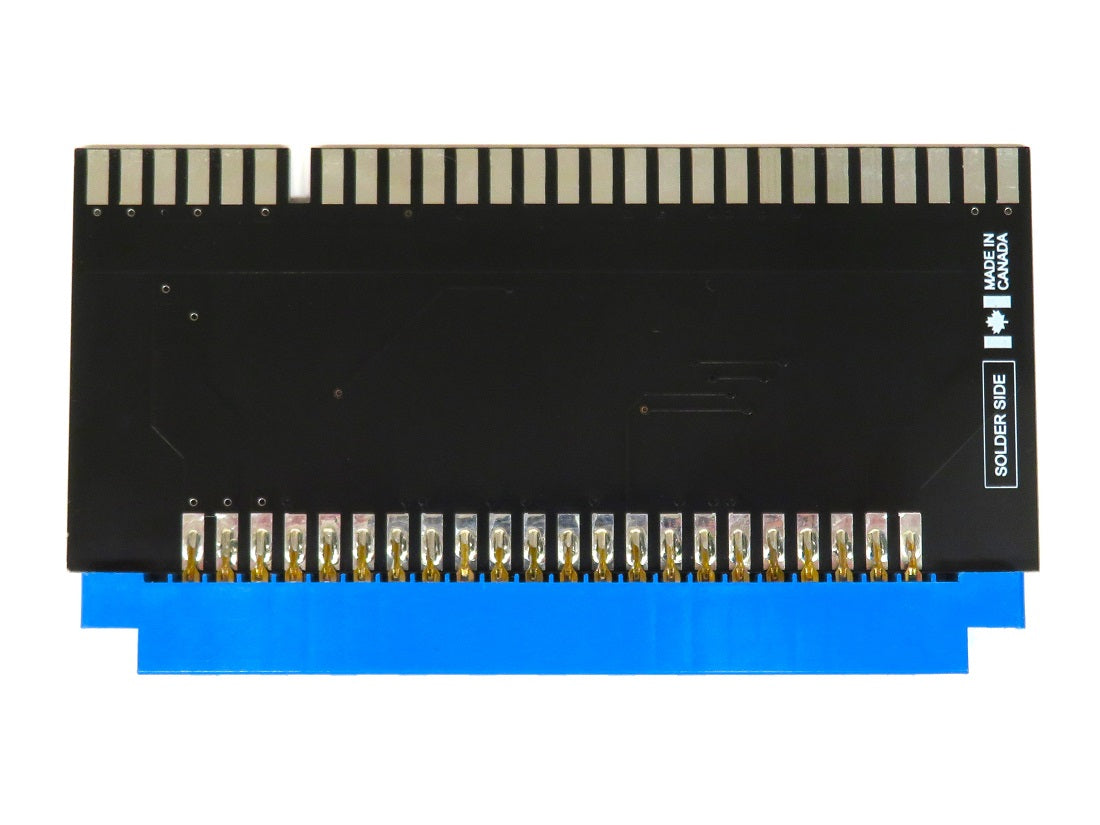

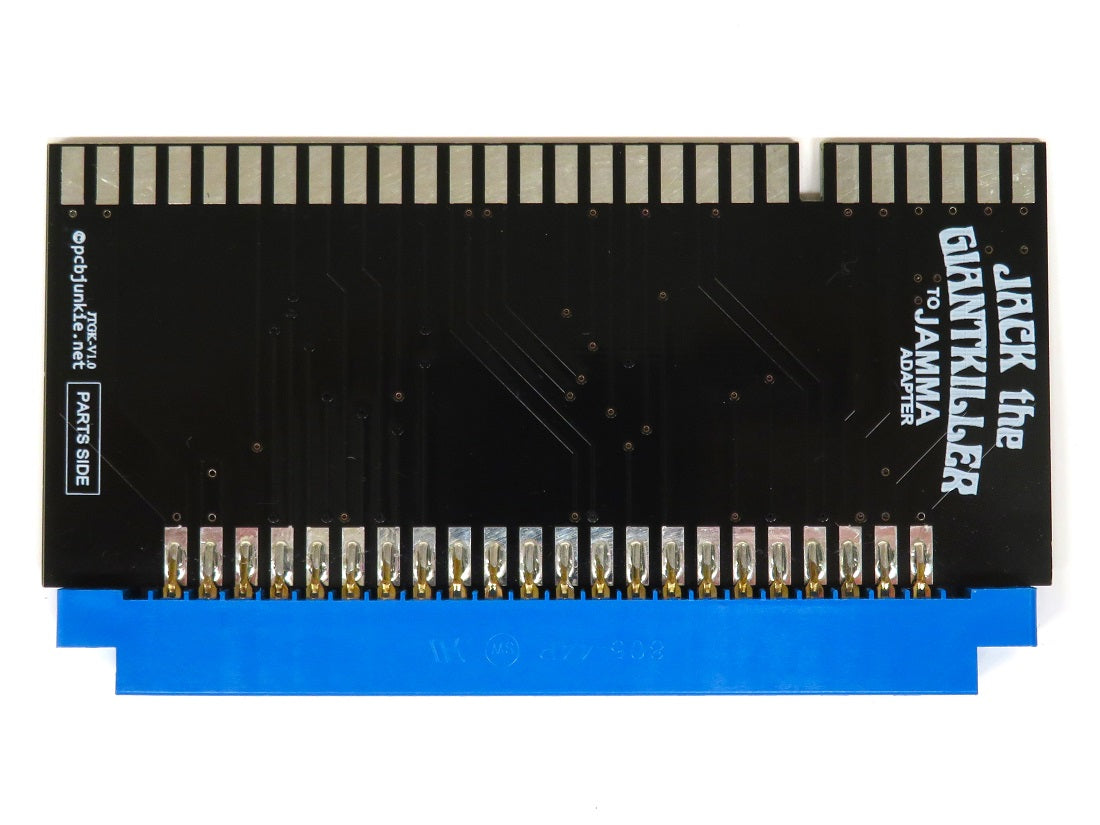

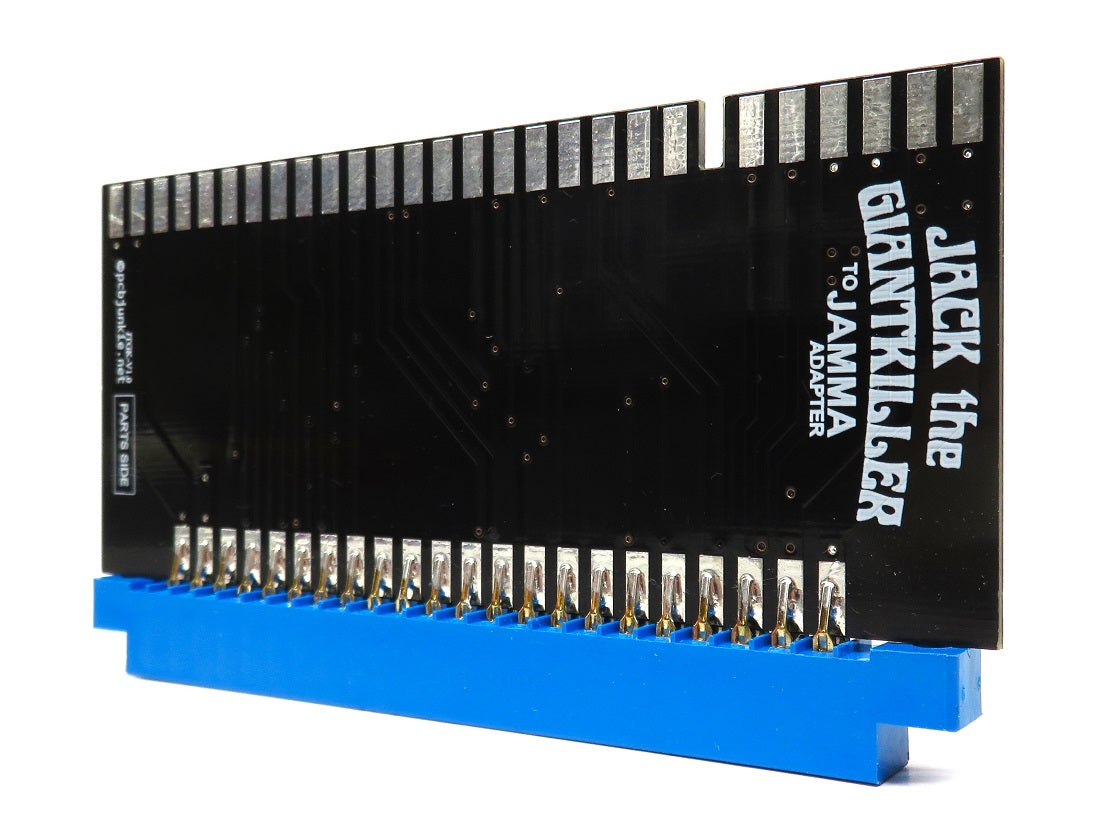

Jack the Giantkiller to JAMMA Adapter
Couldn't load pickup availability
Allows you to use your Jack the Giant Killer and other pre-JAMMA arcade games with the same pinout, in a JAMMA cabinet or a super gun device.
Jack the Giant KIller was developed and distributed by Cinematronics. The game was a failure and lead to the company declaring bankrupcy shortly after. The hardware was licensed from Hara Industries and was used to run several other games from Cinematronics and other licencees.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
- Jack the Giant Killer
- Treasure Hunt
- Zzyzzyxx
- Freeze
- Brix
- Lover Boy *
- Triki Triki *
- Super Trivia (Nova Games) *
* Alternate / incompatible controls.
The adapter has been tested with genuine Jack the Giantkiller board for compatibility.
Games in this list are not common and could not all be tested. As always please check the pinout section to ensure your game will work with this adapter. Many other games may use this pinout including some of the trivia games that run on this hardware.
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| +5V | +5V |
| -5V | +12V |
| SPK- | SPK+ |
| COIN1 | NC |
| COIN2 | NC |
| NC | NC |
| NC | P1B1 |
| NC | P1B2 |
| P2START | NC |
| P1START | NC |
| NC | NC |
| NC | NC |
| NC | NC |
| NC | VRED |
| P1LEFT | VGREEN |
| P1RIGHT | VBLUE |
| P1DOWN | VSYNC |
| P1UP | VGND |
| NC | NC |
| +5V | +5V |
| GND | GND |
Pinout is ordered right to left when looking at the parts side of the board with the edge connector facing away.
Dimensions
Dimensions
