Irem to JAMMA Adapter

Regular price $26.99 CAD
Regular price Sale price $26.99 CAD
Sale Sold out

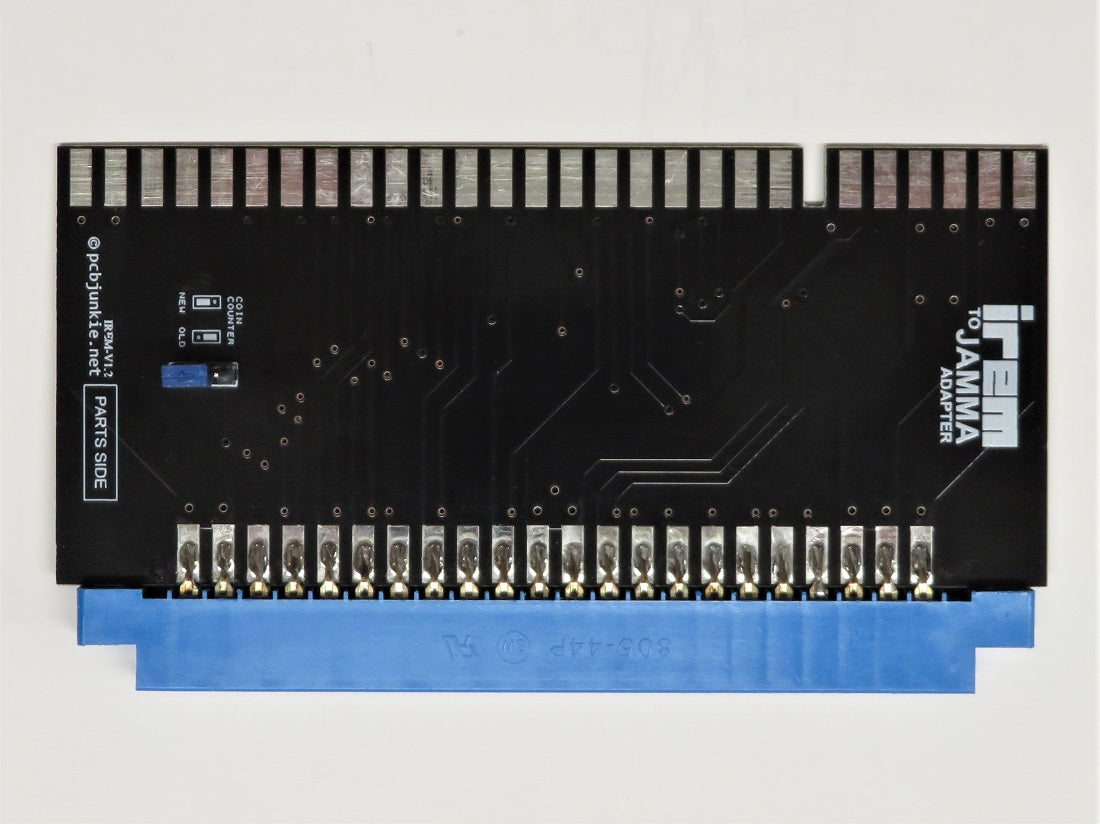

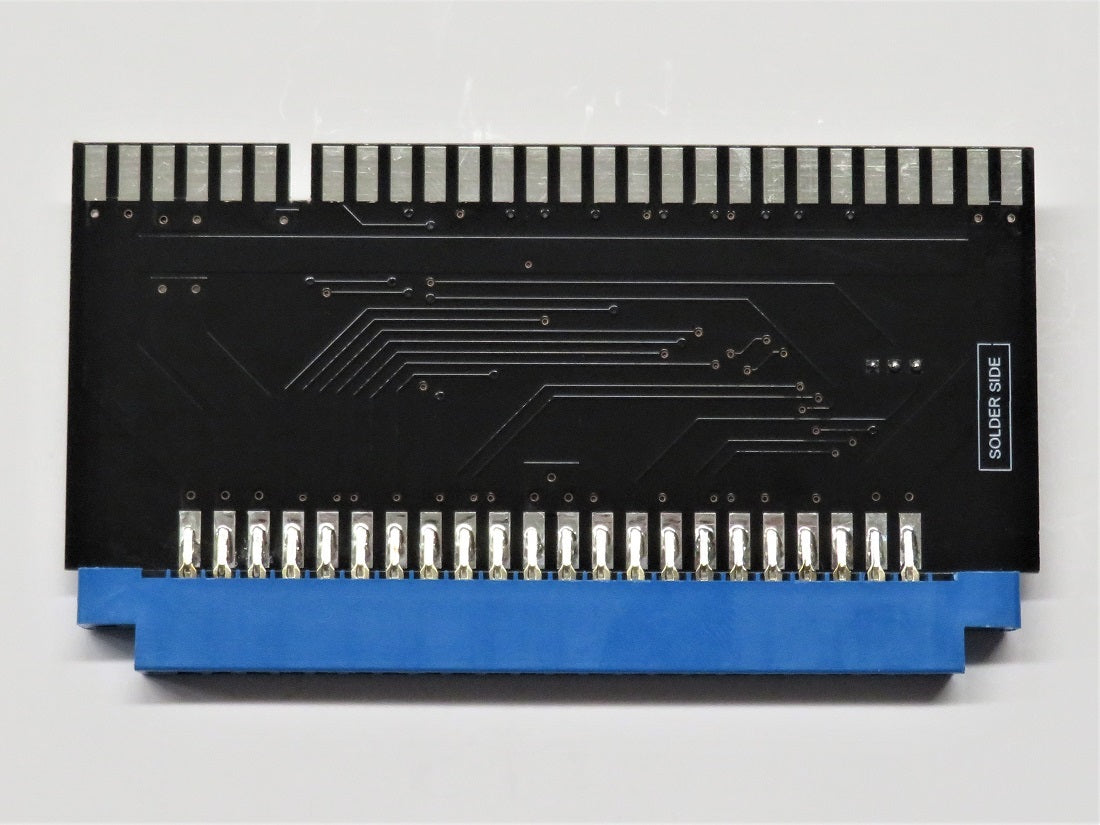

Allows you to use your Irem classic pre-JAMMA game, in a JAMMA cabinet or a supergun device.

Irem or International Rental Electronics Machines started producing arcade games in the late 1970s. In the early, to mid-1980s they released a number of arcade games on similar hardware which consisted of a sandwich of three or fours boards stacked together.

The pinout used by this hardware remained mostly unchanged throughout the years with one small exception. The exception is a small variation in how the coin counters are wired. The adapter provides a jumper to handle the variation, but unless you really need to have working coin counters, you can just simply ignore this feature.

Pinout

SOLDER SIDE PARTS SIDE
GND GND
+5V +5V
+5V +5V
COIN1 SVC
P1DOWN P1UP
P2DOWN P2UP
NC VBLUE
VGREEN VRED
P2B1 P1B1
SPK+ SPK-
+12V +12V
+12V +12V
VSYNC COIN2
COUNT2 NC
P1START P2START
P2B2 P1B2
P2RIGHT P1RIGHT
P2LEFT P1LEFT
COUNT2 COUNT1
NC NC
GND GND
GND GND

Dimensions

Board Size: 50mm x 112mm
Weight: 50g
