Gigas to JAMMA Adapter
Couldn't load pickup availability
Gigas, which was originally developed at least in part by Nihon System and was licensed to and released by Sega in 1986. The first version of Gigas, ran on proprietary hardware used in at least one other Nihon System game, Free Kick.
Gigas / Gigas Mark II pcbs may have been released with different pinouts. This may be especially true with bootleg games. This adapter works with Gigas versions that have a 36 pin main board, and a 10 pin daughter board edge connectors.

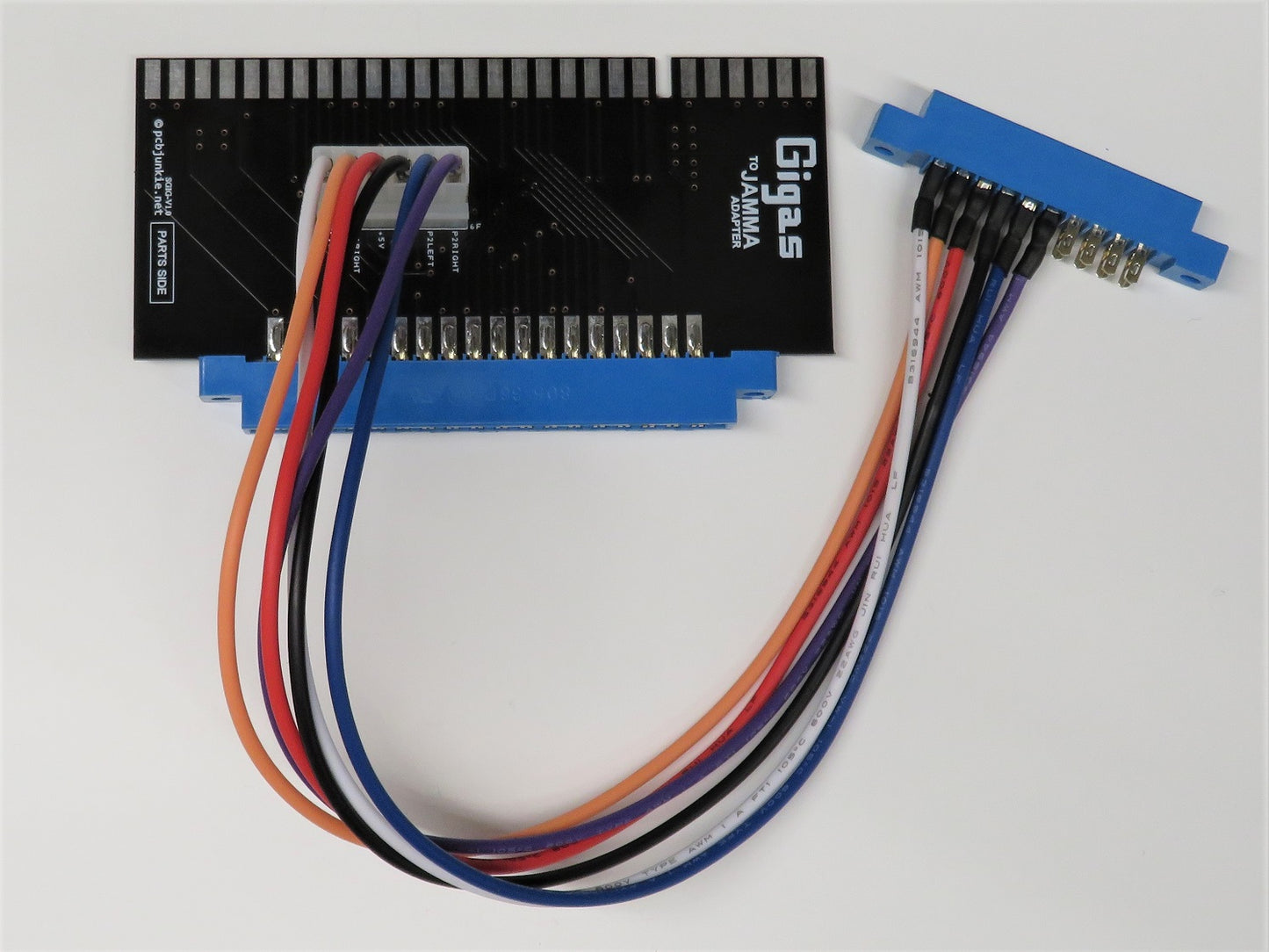

Daughter board cable is included with this adapter.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
The adapter has been tested with a genuine and bootleg Gigas boards.
Important: Gigas requires a spinner or a spinner emulator adapter.
Pinout
Pinout
Main Connector
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| VSYNC | VGREEN |
| VBLUE | VRED |
| P2B2 | P1B2 |
| P2B1 | P1B1 |
| P2RIGHT | P1RIGHT |
| P2LEFT | P1LEFT |
| P2DOWN | P1DOWN |
| P2UP | P1UP |
| P2START | P1START |
| COIN2 | COIN1 |
| COUNT2 | COUNT1 |
| SPK- | SPK+ |
| +12V | +12V |
| +5V | +5V |
| +5V | +5V |
| GND | GND |
| GND | GND |
Secondary Connector
| PIN | FUNCTION |
|---|---|
| 1/A | P1LEFT |
| 2/B | P1RIGHT |
| 3/C | +5V |
| 4/D | GND |
| 5/E | P2LEFT |
| 6/F | P2RIGHT |
| 7/H | NC |
| 8/J | NC |
| 9/K | NC |
| 10/L | NC |
Dimensions
Dimensions
