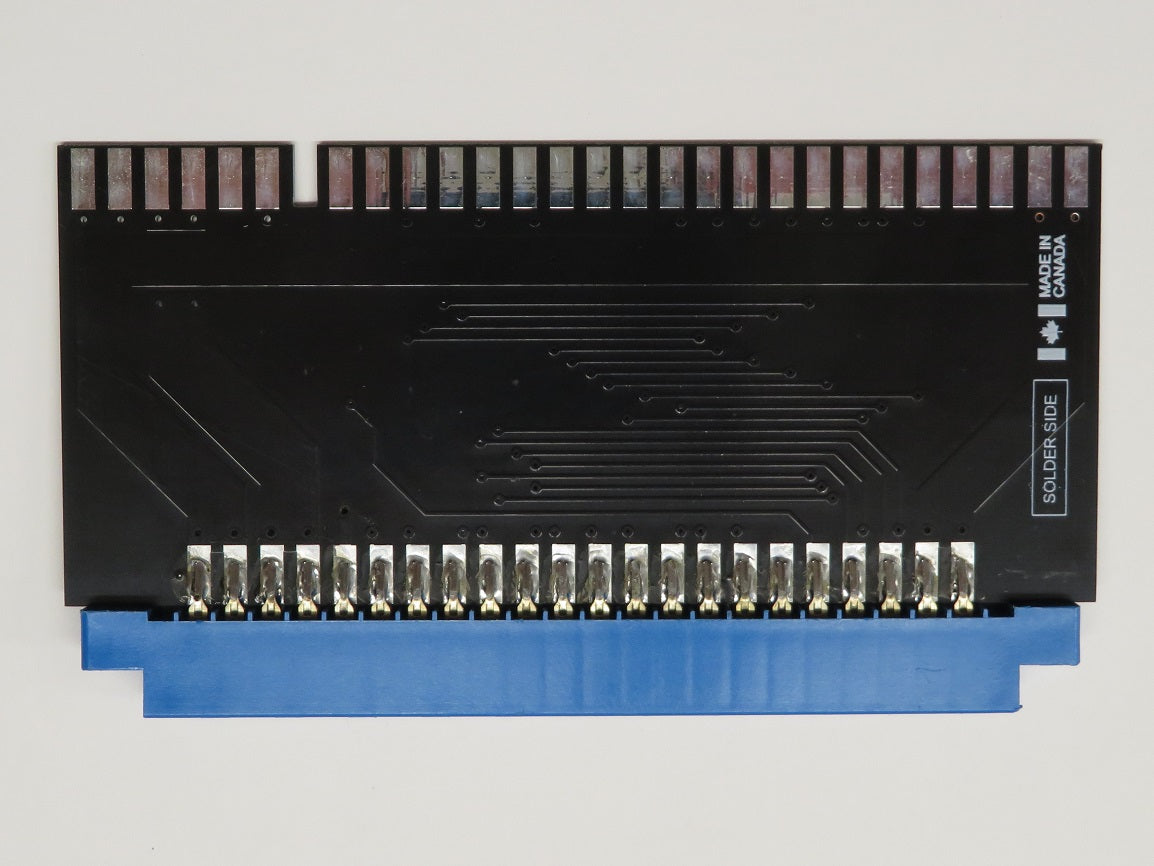

Flower to JAMMA Adapter
Couldn't load pickup availability
Allows you to use your Flower PCB in a JAMMA cabinet or a super gun device.
Flower is a rare flower themed vertical shoot'em up running on a horizontal monitor. It was produced by Clarue and distrubuted by Komax in North America and Sega / Alpha Denshi in Japan.
This adapter works with the genuine version of Flower. Apparently a bootleg version of this rare game exists as well, but was not tested for compatibility.
Game Compatibility
Game Compatibility
This is the list of games that you may be able to use with this adapter:
This adapter has been tested with a genuine Clarue Flower board for compatibility.
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| GND | GND |
| +5V | +5V |
| +5V | +5V |
| +12V | +12V |
| SPK- | SPK+ |
| P1UP | P1DOWN |
| P1LEFT | P1RIGHT |
| P1B1 | P1B3 |
| P1B2 | NC |
| P2UP | P2DOWN |
| P2LEFT | P2RIGHT |
| P2B1 | P2B3 |
| P2B2 | NC |
| COIN1 | P1START |
| P2START | NC |
| NC | NC |
| COUNT1 | NC |
| VSYNC | VBLUE |
| VGREEN | VRED |
| GND | GND |
| GND | GND |
Pinout is ordered right to left when looking at the parts side of the board with the edge connector facing away.
Dimensions
Dimensions
