Exidy Mouse Trap to JAMMA Adapter
Couldn't load pickup availability
Allows you to play your Exidy Mouse Trap and other early 80s Exidy games in a JAMMA cabinet or a supergun device.
Exidy System V1 was the company’s first common arcade video game hardware platform, used mostly for driving games in the late 70s. This was followed by System V2 used in many of Exidy’s maze-type games in the early 80s, and then System 440 for shooting-type games later in the decade.
System V2 hardware consists of either a 2 board set… a logic and a sound/video board, or a 3 board set… a logic, sound, and video color board. This adapter is compatible with both types of System V2, but not with System V1 or System 440 which isn’t suited for JAMMA controls.

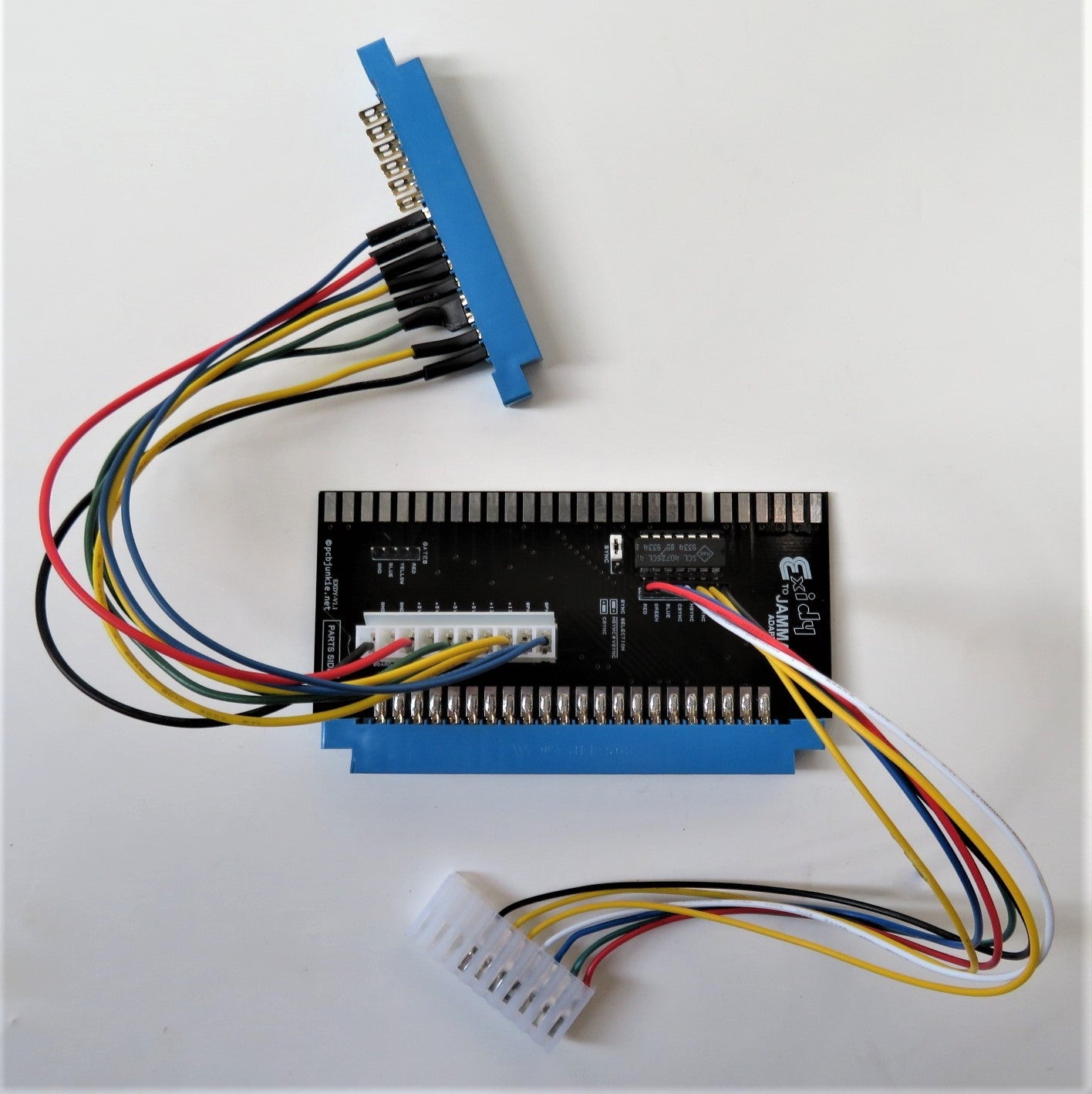

This adapter includes the required 44 main edge connector, an additional 30 pin power / sound edge connector and wire harness, a 10 pin video cable and a 6 pin Mouse Trap gate cable for the additional 3 gate buttons.
Exidy games output RGB video with positive composite sync, which may not be compatible with your monitor, so this adapter provides a switchable built-in sync converter to make the video signal 100% JAMMA compatible.
Game Compatibility
Game Compatibility
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| NC | NC |
| NC | NC |
| NC | NC |
| NC | NC |
| COIN1 | P1DOWN |
| P1UP | P1B1 |
| P1LEFT | P1RIGHT |
| P2START | P1START |
| NC | NC |
| NC | GND |
| +12V | GND |
| -5V | GND |
| NC | GND |
| +5V | GND |
| +5V | GND |
| +5V | GND |
| +5V | GND |
| +5V | GND |
| NC | GND |
| NC | GND |
| COIN2 | GND |
| NC | NC |
Power / Sound Edge Connector (30 Pin)
| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| +12V | +12V |
| -12V* | -12V* |
| -12V* | -12V* |
| -5V | -5V |
| +12V | +12V |
| SPK+ | SPK+ |
| +5V | +5V |
| SPK- | SPK- |
| +12V (NC) | +12V (NC) |
| -5V (NC) | -5V (NC) |
| -12V (NC) | -12V (NC) |
| -12V (NC) | -12V (NC) |
| +12V (NC) | +12V (NC) |
| GND (NC) | GND (NC) |
(PCB edge connector facing away, list is ordered right to left. * -12V is not available with JAMMA so -5V is used instead. Requires a power supply with at least 1A on the -5V rail.)
Video Connector (10 Pin)| PIN | VIDEO FUNCTION |
|---|---|
| 1 | RED |
| 2 | GREEN |
| 3 | BLUE |
| 4 | POS CSYNC |
| 5 | POS HSYNC |
| 6 | POS VSYNC |
| 7 | GND |
| 8 | GND |
| 9 | NC |
| 10 | NC |
Dimensions
Dimensions
Shipping & Returns
Shipping & Returns
