pcbjunkie

DIY / Wired - 56 pin Universal JAMMA Adapter Kit

Regular price $6.00 USD
Regular price Sale price $6.00 USD
Sale Sold out

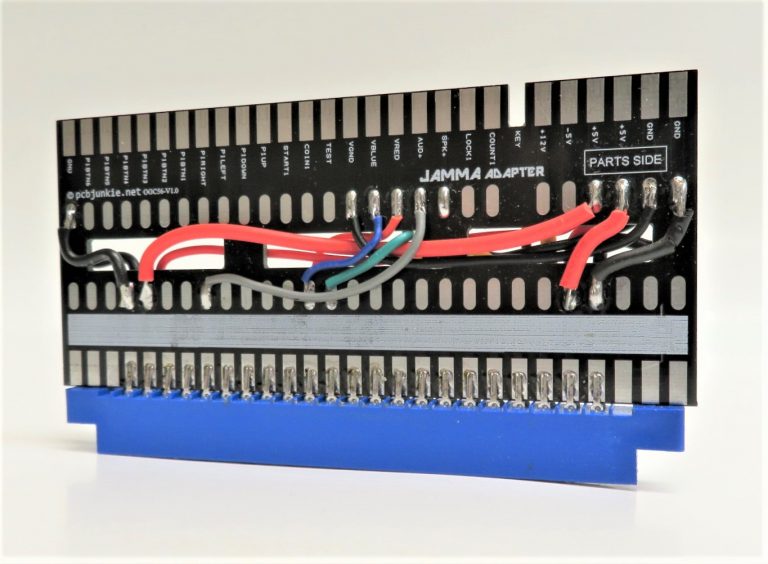

Here’s a low cost, DIY solution for a custom JAMMA adapter. This will allow you to convert your non-JAMMA game to the JAMMA standard, with a little bit of wire and some soldering. The last pic shows what a completed adapter may look like.

The kit will be available in the 36 pin, 44 pin and 56 pin versions, with the difference being the edge connector that is included. In this particular kit you will receive a 56 pin female edge connector and a JAMMA conversion adapter board.

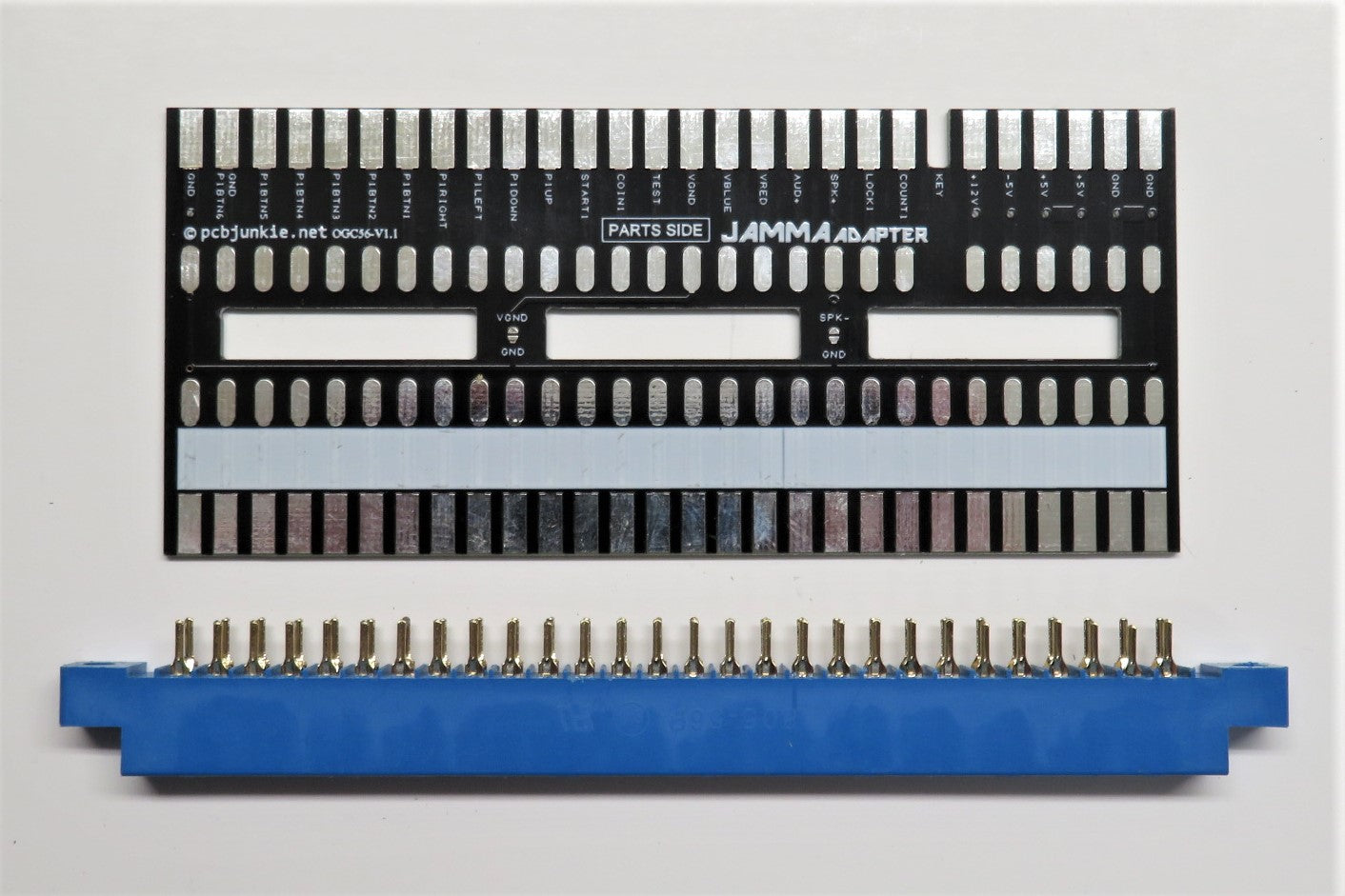

The adapter board includes a couple of solder shortcut pads for pins that are normally grounded on a JAMMA harness: SPK- and video ground (VGND).

Dimensions

Board Size: 50mm x 112mm
Weight: 40g

Shipping & Returns

Standard 30 days return policy. Buyer pays for return shipping. See Return policy page for more information.

DIY JAMMA Adapter Additional Information

This adapter kit that consists of a female edge connector with the appropriate number of pins, and a JAMMA Adapter board. You supply your own wire and do your own wire cutting and soldering to create your own custom JAMMA game adapter.

Unlike the matrix style Universal JAMMA adapters, which take only a fraction of time to assemble, the benefit of using this one is the smaller footprint and much lower cost. This is more geared towards experimentation and prototyping, where creating a permanent and clean adapter isn’t the end goal.

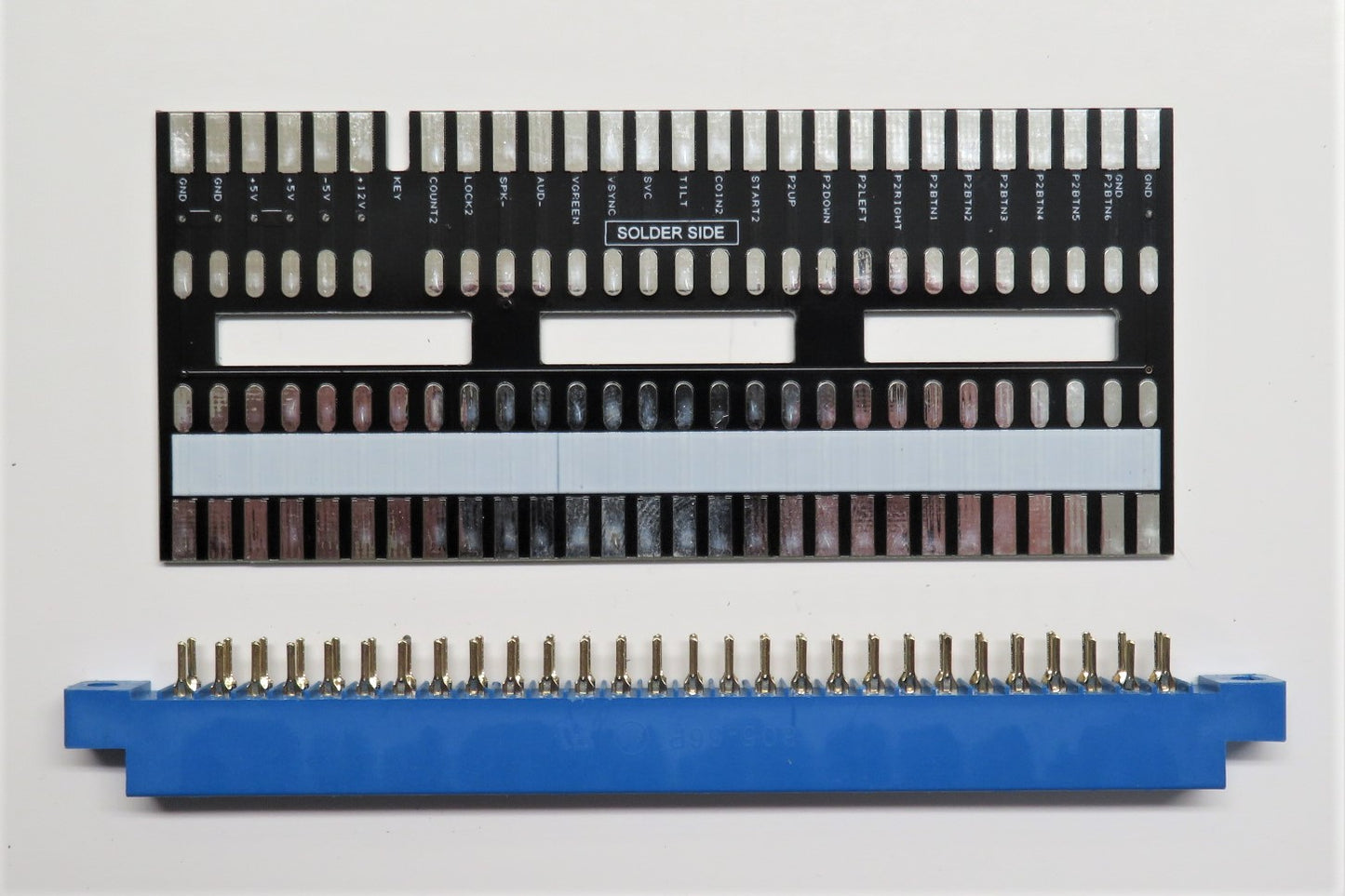

The adapter board has a set of clearly labelled, large soldering pads and holes for routing wires from solder/parts side for a design that minimizes wire clutter. This ensured that the wires stay put.

The white rectangle can be used as a label area. Use a thin permanent marker, and once dry cover the rectangle with some clear scotch tape for a permanent label.

The kit is available in the 36 pin, 44 pin and 56 pin versions. The 36 pin kit will include the 36 pin female game end connector, and the 44 and 56 pin kits will include the 44 and the 56 pin connector respectively. The included JAMMA side conversion board is the same in each kit.

Adapter Configuration:

A link to the assembly tutorial can be found here:

http://pcbjunkie.net/index.php/generic-jamma-adapter-assembly-tutorial/
