DIY / Wired - 44 pin Universal Arcade Cabinet Adapter Kit

Regular price $7.99 CAD
Regular price Sale price $7.99 CAD
Sale Sold out
Here’s a low cost, DIY solution for a custom cabinet adapter. This will allow you to convert your cabinet to the JAMMA standard (or others) with a little bit of wire and some soldering.

In this kit you will receive a 56 pin female edge connector for the JAMMA side, and a 44 pin cabinet conversion board. You supply your own wire, solder and your soldering skills.

Dimensions

Board Size: 50mm x 112mm
Weight: 40g

Shipping & Returns

Standard 30 days return policy. Buyer pays for return shipping. See Return policy page for more information.

DIY Cabinet Adapter Additional Information

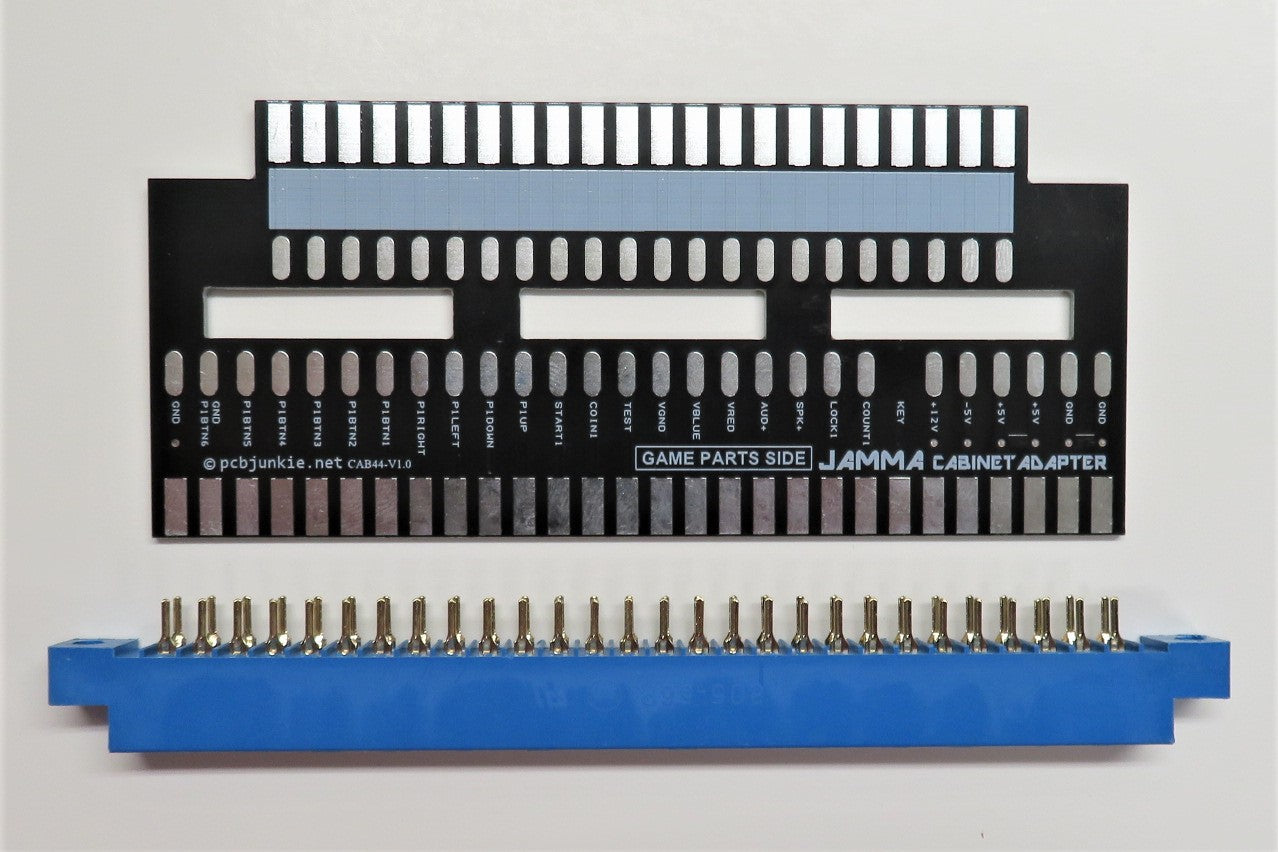

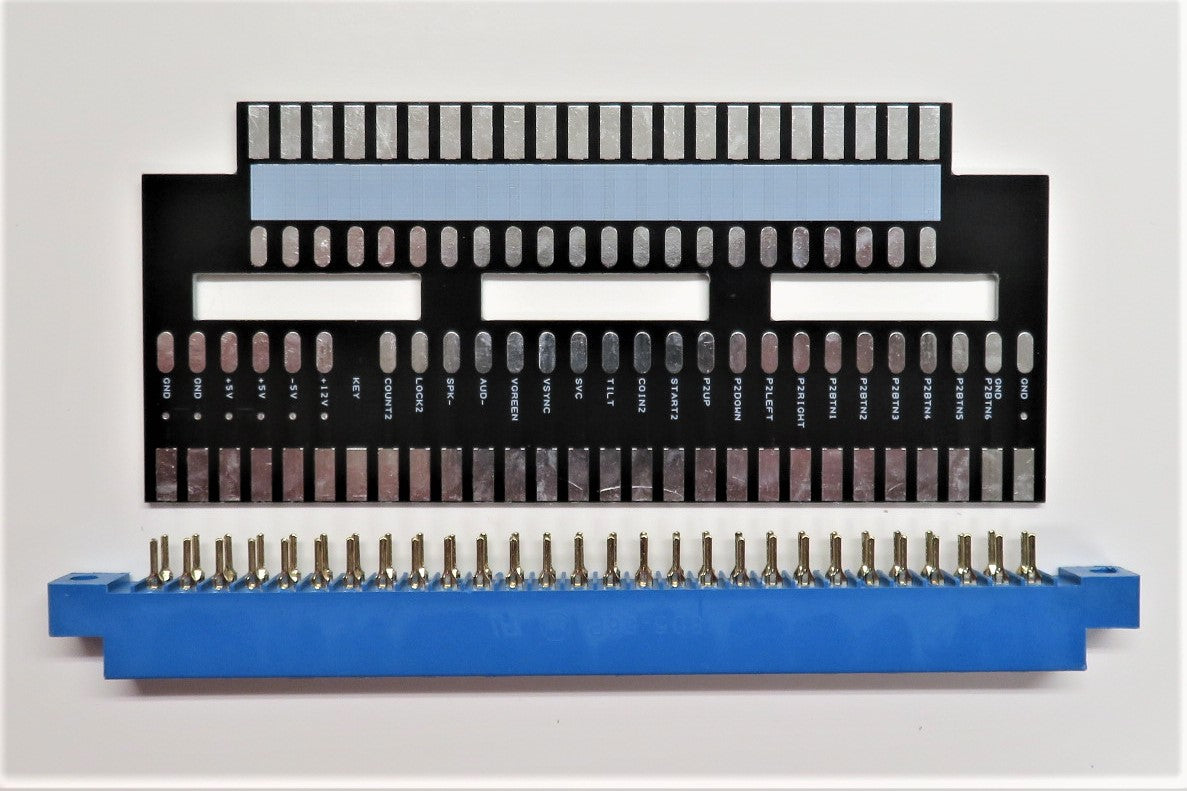

This adapter kit consists of a female, 56 pin edge connector for the JAMMA game side, and a Cabinet Adapter Board with the appropriate number of edge connector pins for the cabinet end.

You supply your own wire and do your own wire cutting and soldering to create your own custom JAMMA to Cabinet adapter.

The adapter board has set of large, clearly labelled soldering pads, and holes for routing wires from solder/parts side for a design that minimizes wire clutter ensuring that the wires stay put. There is also a white rectangle which can be used as a label area. Use a thin tip permanent marker, and once dry cover it with some clear scotch tape for a permanent label.

The kit is available in the 36 pin, 44 pin and 56 pin versions, with the difference being the conversion board that is included. A 56 pin edge connector (for JAMMA) will be included by default. If you require a different edge connector please leave a message in the order.



Adapter Configuration:

A link to the assembly tutorial can be found below. While this tutorial is specific to the DIY JAMMA adapter configuration, the procedure for the cabinet adapter is identical.

http://pcbjunkie.net/index.php/generic-jamma-adapter-assembly-tutorial/
