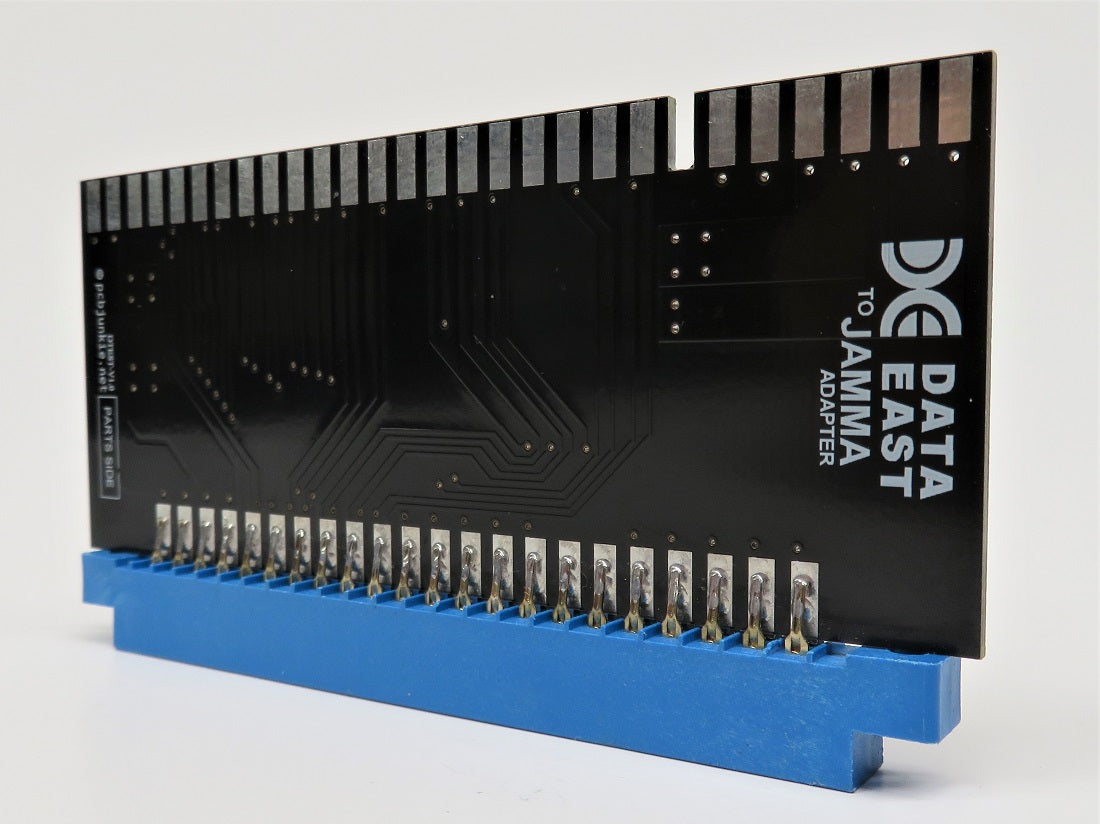

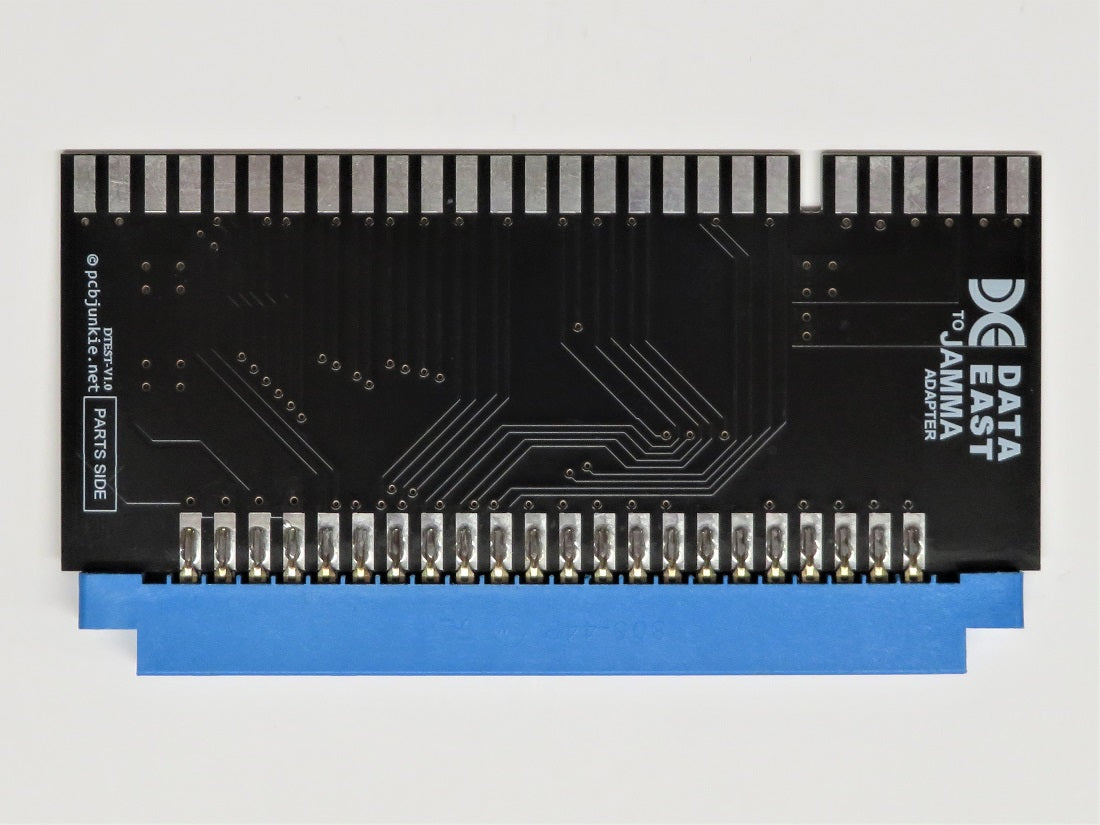

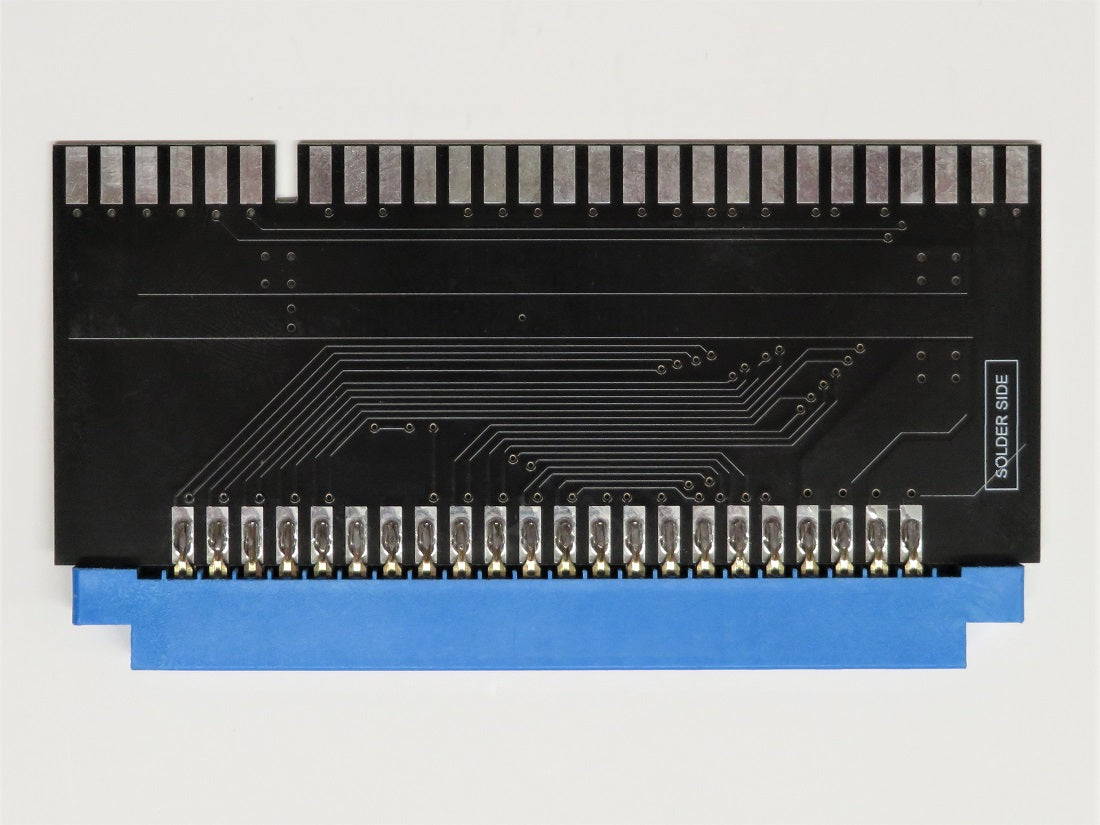

Data East to JAMMA Adapter
Couldn't load pickup availability
Allows you to use your Data East classic pre-JAMMA game, in a JAMMA cabinet or a supergun device.
Data East has has some limited success in arcades in the early 80s with games like Karate Champ and Bump ‘n’ Jump. While they produced and released some arcade games themselves, there are a number of Data East published games that they had licensed from other manufacturers (mainly Irem), and games have been developed by Data East and published by other companies.
As a result, just because your board has the DECO sticker on it, it doesn’t mean that it has the Data East pinout. A lot of their hits are on other hardware with a different pinout.
The number of games in the Data East conversion class is actually pretty limited. The good news is that the pinout used by this hardware remained unchanged throughout the years.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
- Big Pro Wrestling!
- Karate Champ *
- Karate Champ – Player Vs Player *
- Karate Dou *
- Tag Team Wrestling
- Taisen Karate Dou
- Competition Golf
- Metal Clash
- Ring King
- Shootout
- Battle Lane Vol. 5
- Express Raider
- Ring King II
- Western Express
- Captain Silver
- Garyo Retsuden
- Kuhga – Operation Code ‘Vapor Trail’
The adapter has been tested with genuine Data East boards for compatibility.
* Karate Champ is not compatible. Its controls use joysticks instead of buttons. While the game will run and display properly, it can’t be correctly controlled.
Pinout
Pinout
| SOLDER SIDE | PARTS SIDE |
|---|---|
| P2DOWN | P1DOWN |
| P2UP | P1UP |
| P2LEFT | P1LEFT |
| P2RIGHT | P1RIGHT |
| P2B3 | P1B3 |
| NC | NC |
| NC | NC |
| NC | SVC |
| P2B1 | P1B1 |
| P2B2 | P1B2 |
| P2START | P1START |
| COIN2 | COIN1 |
| COUNT2 | COUNT1 |
| VGREEN | VBLUE |
| VRED | VSYNC |
| NC | NC |
| SPK- | SPK+ |
| -5V | +12V |
| +5V | +5V |
| +5V | +5V |
| GND | GND |
| GND | GND |
Dimensions
Dimensions
