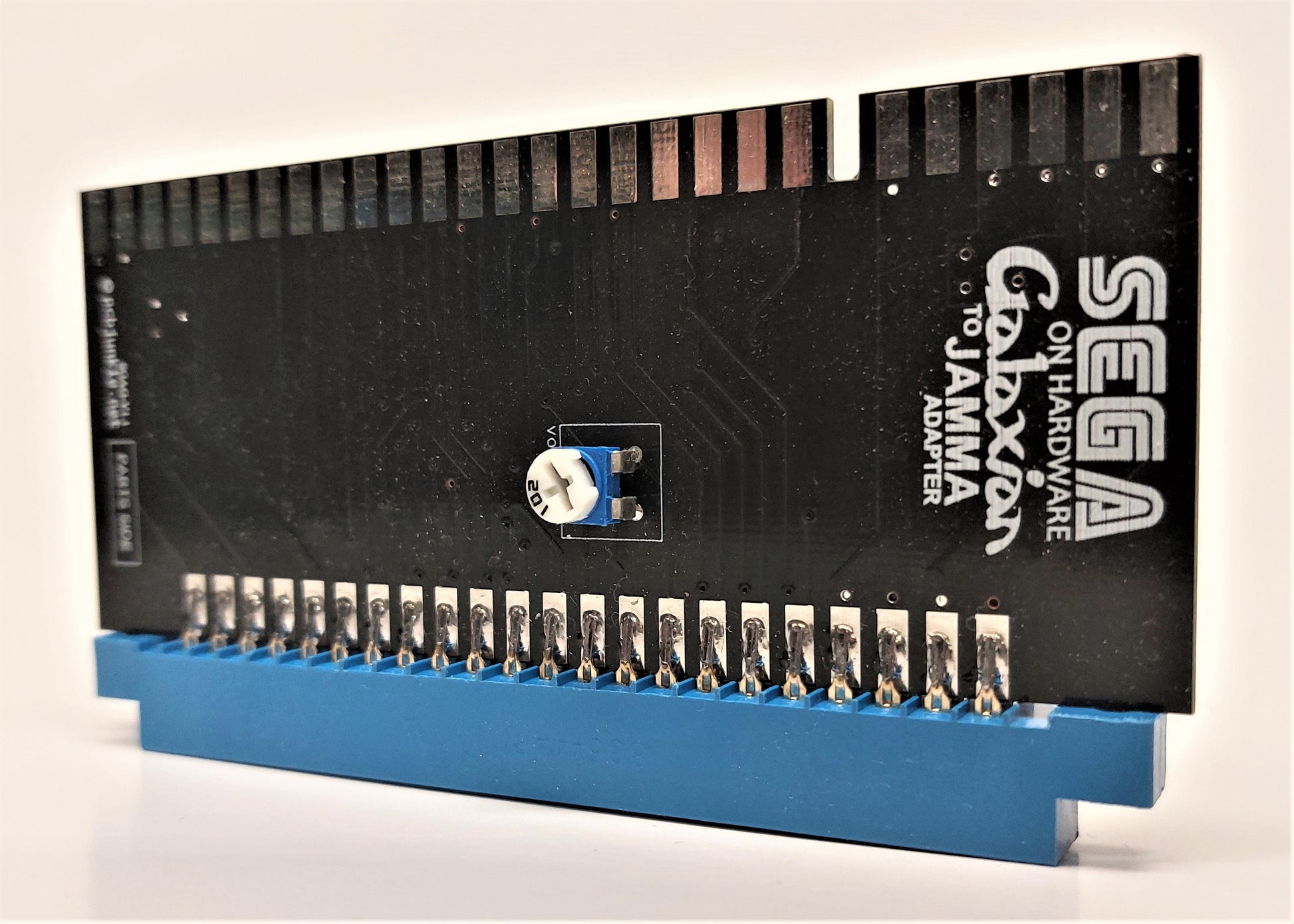

Sega on Galaxian Hardware to JAMMA Adapter
Couldn't load pickup availability
Allows you to use your Sega Galaxian based pre-JAMMA games in a JAMMA cabinet or a super gun device.
In the early 1980s, Sega licensed a few games from other arcade developers, which they then manufactured and distributed. The hardware was based on a modified Galaxian board usually with additional rom and sound boards.
The pinout for these games varies somewhat from the original Galaxian pinout, changing the location of the pins responsible for controls and sound, and is completely different from the pinout used by the original manufacturer of the game.
Game Compatibility
Game Compatibility
This is the list of compatible games that can be used with this adapter:
Pinout
Pinout

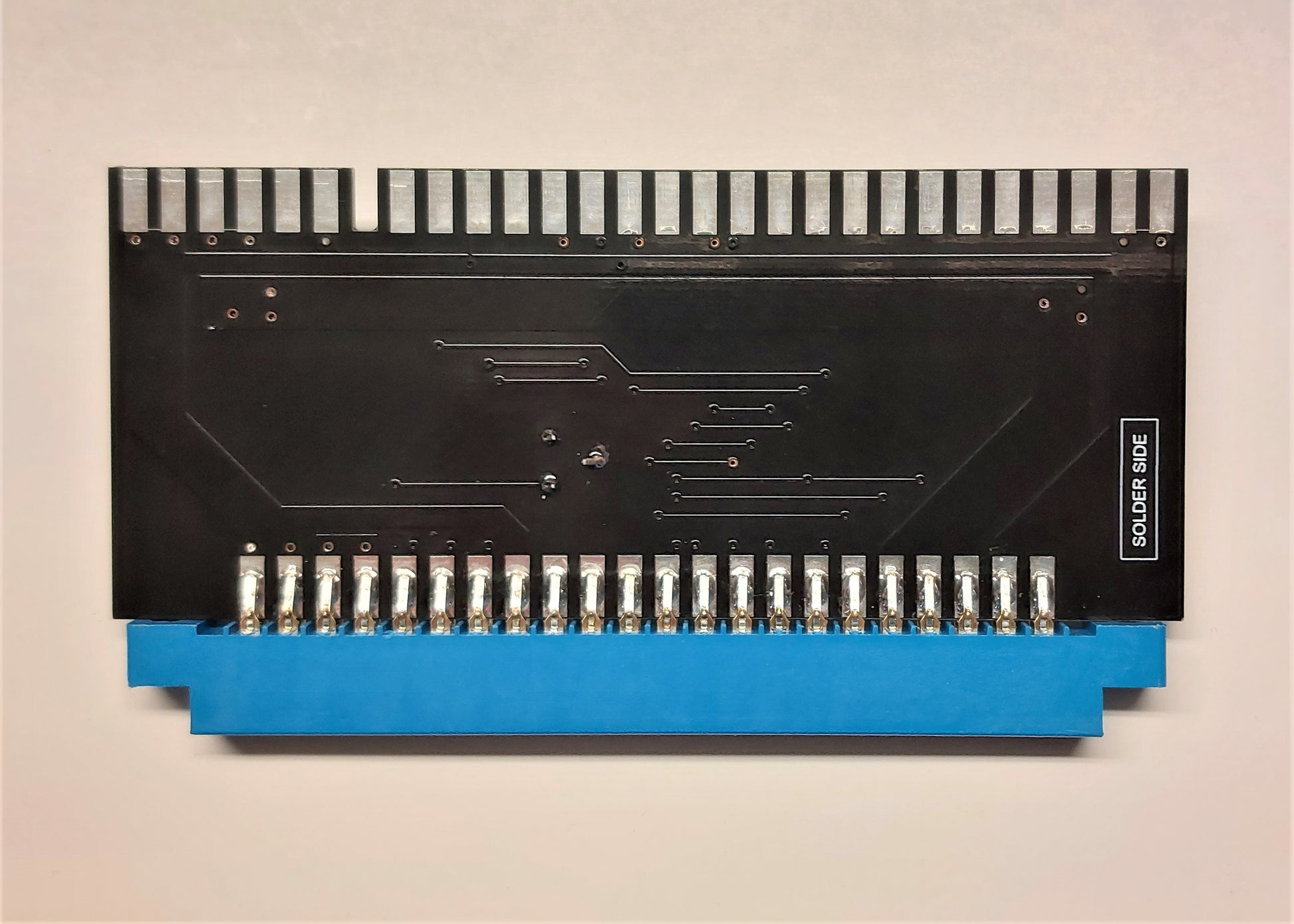

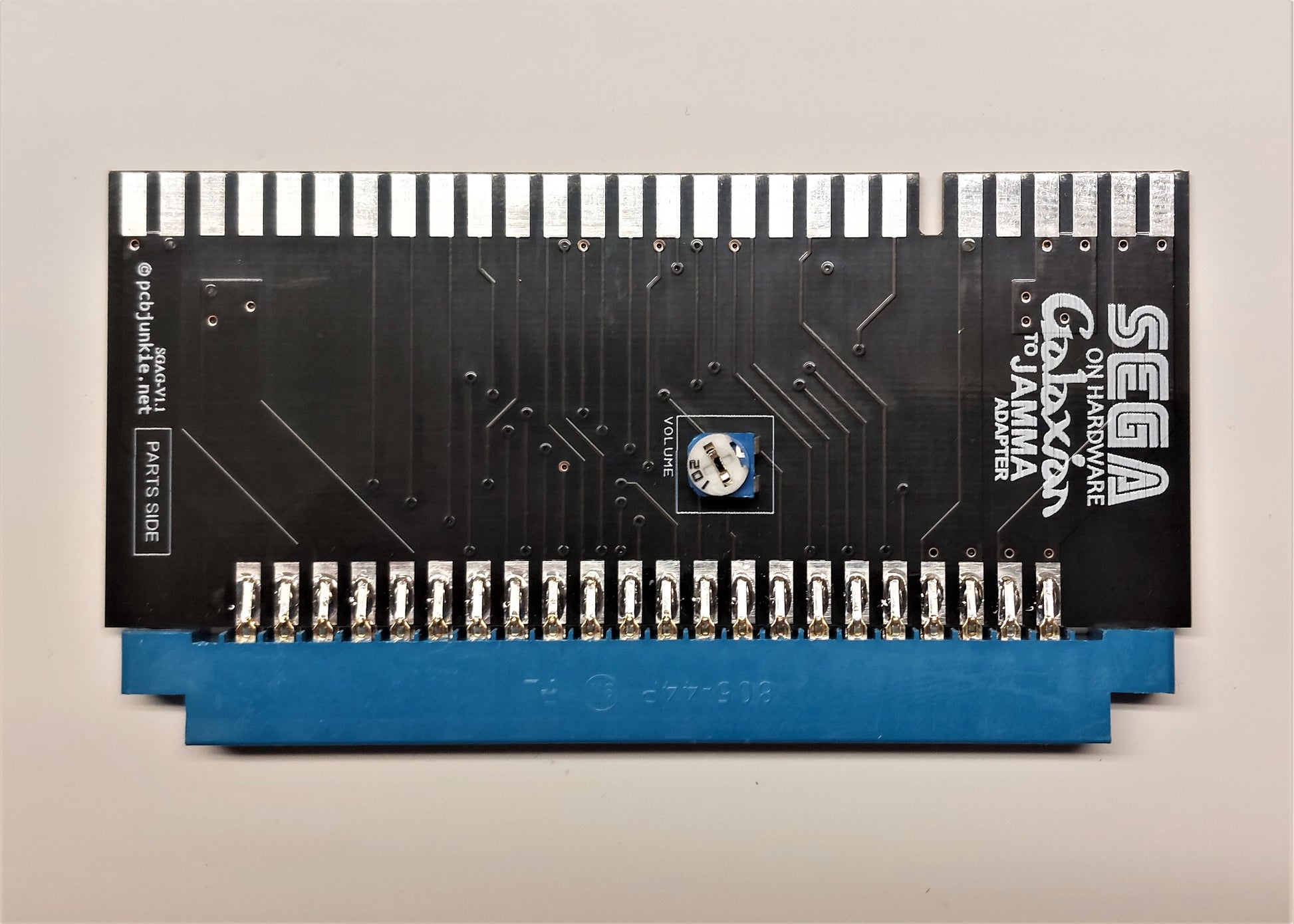

| SOLDER SIDE | PARTS SIDE |
|---|---|
| GND | GND |
| GND | GND |
| +12V | +12V |
| +12V | +12V |
| SPK+ | AUDPOTIN |
| VSYNC | VBLUE |
| VGREEN | VRED |
| GND | AUDPOTGND |
| NC | P1DOWN |
| NC | AUDPOTOUT |
| NC | P1B1 |
| P1RIGHT | P1LEFT |
| P2START | P1START |
| SVC | TEST |
| COIN2 | COIN1 |
| COUNT1 | NC |
| NC | NC |
| COINRET | NC |
| +5V | +5V |
| +5V | +5V |
| GND | GND |
| GND | GND |
Dimensions
Dimensions
